1
Engine displacement
800
2
Year
2003
3
Trim
800 FRONTIER CLASSIC BUILT AFTER 1/01/02
4
Parts Catalog
CRANKCASE
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING
by
CRANKSHAFT AND PISTON
CRANKCASE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
22
23
24
25
26
27
28
29
1
FLANGE SEAL; 35 X 72 X 7
5412114
9999999
Not Available
2
BEARING BALL; EXTRACE
3514310
$54,59 Unit Price incl. VAT
3
BUSHING-35.25X44X26.75
7556258
9999999
Not Available
4
BALL BEARING
3514318
$74,54 Unit Price incl. VAT
5
KIT-CRANKCASE
2202133
9999999
Not Available
6
NIPPLE OIL FILTER
2540023
2521388
$52,49 Unit Price incl. VAT
7
LIFTER-VALVE HYDRAULIC
5131415
5137206
$68,24 Unit Price incl. VAT
8
HEX FLANGE SCREW 10 MM X 1.5 MM X 12 MM
7516824
$73,49 Unit Price incl. VAT
9
WASHER
7556003
$11,54 Unit Price incl. VAT
10
SPRING-PRESSURE RELIEF
7041563
9999999
Not Available
11
DOWELL PIN
7661127
$26,24 Unit Price incl. VAT
12
JOURNAL BALL SHAFT BEARING
5132753
9999999
Not Available
13
RING-RETAINING 1 5/8 (10)
7710512
$7,34 Unit Price incl. VAT
14
SEAL OIL 15X35X8
5411184
5412455
$41,99 Unit Price incl. VAT
15
COVER GASKET
5812364
9999999
Not Available
16
ASM-COVER ENGINE
1202384
9999999
Not Available
17
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
18
FLANGED SEAL WITH HELIX 24 X 44 X 10
5412048
9999999
Not Available
19
MAIN JOURNAL BEARING
3585704
$40,94 Unit Price incl. VAT
20
SCR-M8X1.25X50 HX/FL-Y
7517793
$10,49 Unit Price incl. VAT
21
HEX FLANGE SCREW; 8 MM X 1.25 MM X 90 MM
7517792
$4,19 Unit Price incl. VAT
22
PIN DOWEL
7663001
$20,99 Unit Price incl. VAT
23
SOCKET PLUG; 12 MM X 1.5 MM
7052306
$31,49 Unit Price incl. VAT
24
COPPER WASHER
5812232
7556937
$6,29 Unit Price incl. VAT
25
OIL BAFFLE-WELD
1202113
9999999
Not Available
26
HEX FLANGE SCREW; 5 MM X .80 MM X 8 MM
7518045
9999999
Not Available
27
BOLT(1)
7516603
$19,94 Unit Price incl. VAT
28
ASM-OIL PICKUP
1201970
1202663
$104,99 Unit Price incl. VAT
29
O-RING SEAL; .070 X .614
5812016
$5,76 Unit Price incl. VAT

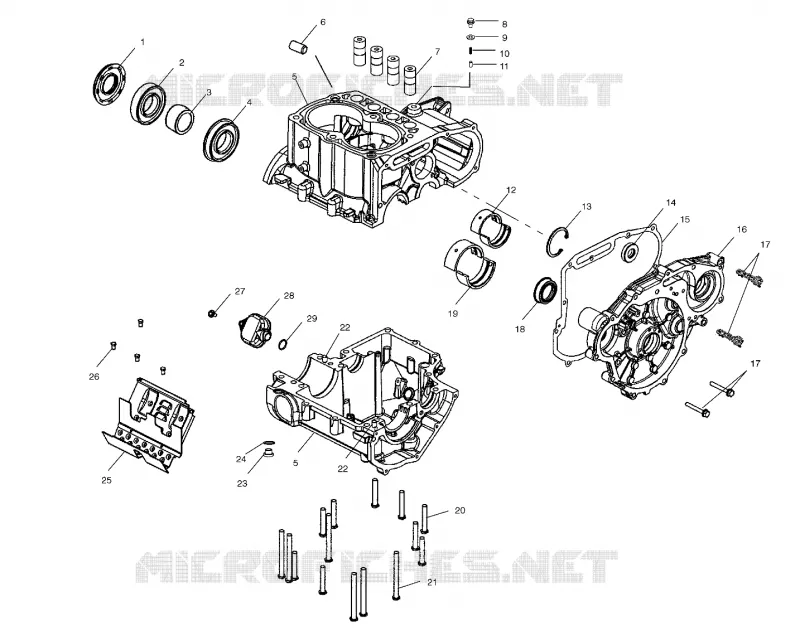

Find the detailed CRANKCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
