1
Engine displacement
800
2
Year
2003
3
Trim
800 FRONTIER CLASSIC BUILT AFTER 1/01/02
4
Parts Catalog
OIL PUMP/WATER PUMP
5
Parts Diagram
Parts Catalog
OIL DIPSTICK FILTER
by
TOOL KIT
OIL PUMP/WATER PUMP
1
GEROTOR ASSEMBLY
1202079
9999999
Not Available
2
HOUSING OILPUMP
5131426
9999999
Not Available
3
SCR-M6X1.0X70MM SOC/CAP-Y/D
7517807
$9,44 Unit Price incl. VAT
4
OIL/WATER PUMP SHAFT
5131419
9999999
Not Available
5
BALL BEARING 15 X 35 X 11
3584404
9999999
Not Available
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
WATERPUMP FACE SEAL; 15 X 36/ 40 X 20
3610075
$131,24 Unit Price incl. VAT
8
WATER PUMP IMPELLER
5433684
$57,74 Unit Price incl. VAT
9
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
10
FLAT WASHER; SS
7555874
$4,19 Unit Price incl. VAT
11
HEX NUT; NYLOK
7546804
$2,09 Unit Price incl. VAT
12
ASM-COVER WATERPUMP
1202070
9999999
Not Available
13
BRKT-COVER WATER PUMP
5246885
9999999
Not Available
14
SCREW
7516823
$5,76 Unit Price incl. VAT
15
O RING SEAL .125 X .074 X 5.185
5812048
9999999
Not Available

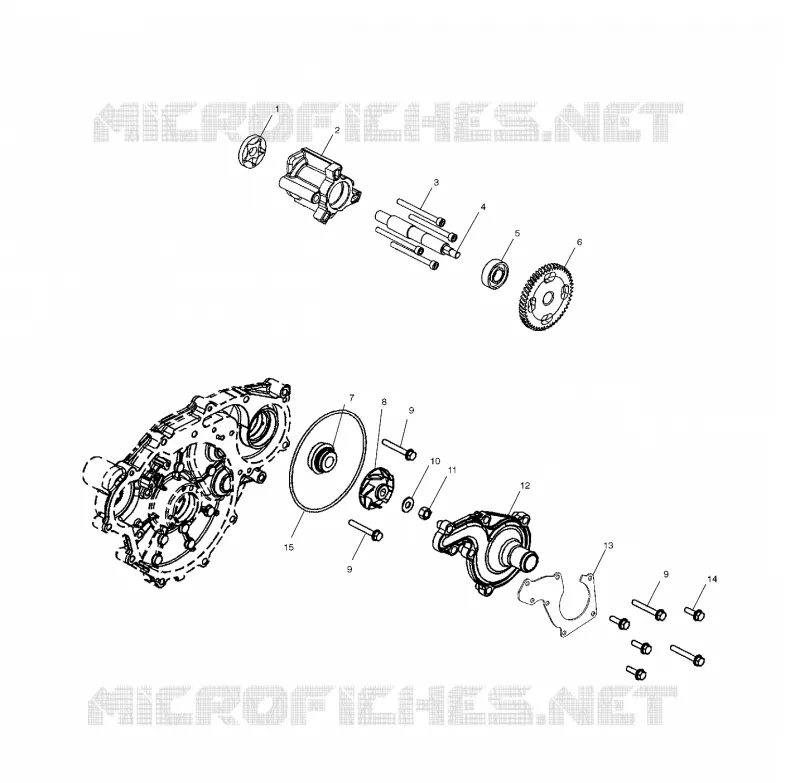

Find the detailed OIL PUMP/WATER PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
