1
Engine displacement
800
2
Year
2016
3
Trim
800 AXYS SKS 155
4
Parts Catalog
RECOIL STARTER
5
Parts Diagram
Parts Catalog
EXHAUST
by
STARTER MOTOR
RECOIL STARTER
-
-
RECOIL; 600/800
1204331
$398,99 Unit Price incl. VAT
1
SCREW-M8X1.25X20 HX
7517984
$9,44 Unit Price incl. VAT
2
FRICTION PLATE
3021650
$52,49 Unit Price incl. VAT
3
FRICTION SPRING
3022313
$47,24 Unit Price incl. VAT
4
RATCHET-A550 208 106 AO
5247844
$36,74 Unit Price incl. VAT
5
RETURN SPRING
3022314
$68,24 Unit Price incl. VAT
6
STARTER ROPE
3040169
$47,24 Unit Price incl. VAT
7
RECOIL REEL
3022317
$157,49 Unit Price incl. VAT
8
SPRING-SPIRAL; A60013000200
3021648
9999999
Not Available
9
RECOIL STARTER HOUSING
5632494
$225,74 Unit Price incl. VAT
10
RECOIL HANDLE; GLOSS BLACK
5435154070
Not Available
11
BUSHING ROPE SLIDE
3040171
$6,08 Unit Price incl. VAT
12
SCR-M6X1.0X40 HX/SOC/CP-Y/D
7510005
$9,44 Unit Price incl. VAT
13
CENTER BUSHING
3022316
$13,64 Unit Price incl. VAT
14
RATCHET GUIDE
3022324
$26,24 Unit Price incl. VAT
15
WASHER-4620 820 006 12
7556319
7557158
$7,34 Unit Price incl. VAT
16
SCREW
7517278
9999999
Not Available
17
PULLEY-STARTER RECOIL LW
3021618
$47,24 Unit Price incl. VAT
18
HANDLE RECOIL ISOLATOR
5414288
$9,44 Unit Price incl. VAT

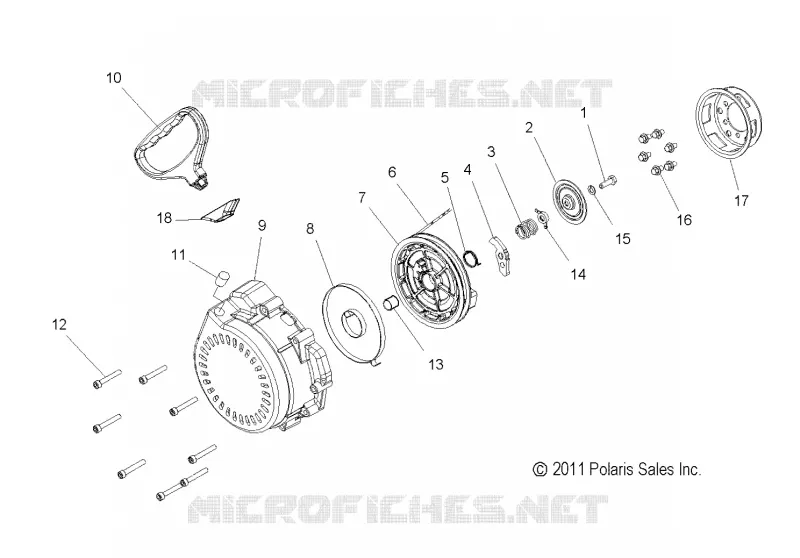

Find the detailed RECOIL STARTER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
