1
Engine displacement
autre
2
Year
1992
3
Trim
Euro Big Boss 6x6 - S928727
4
Parts Catalog

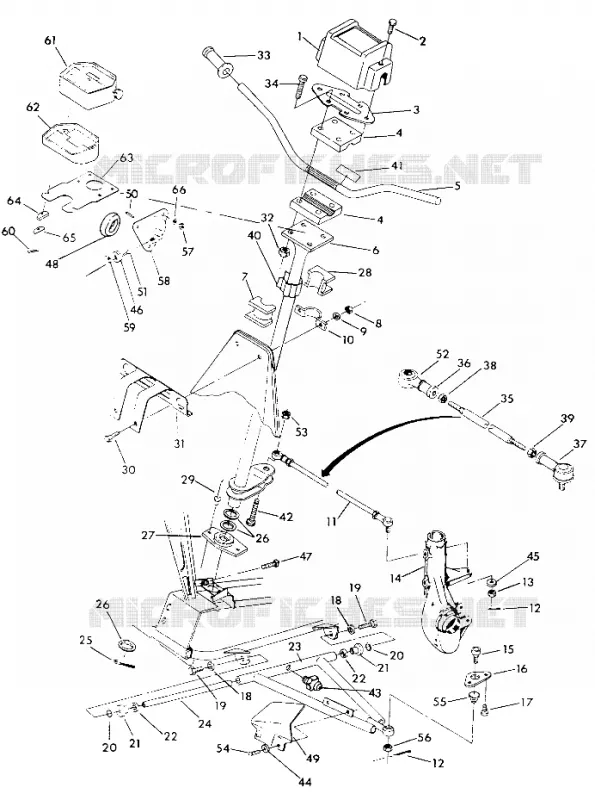

STEERING ASSEMBLY NORWEGIAN 6X6 (4923742374017A)
5
Parts Diagram
Parts Catalog
SHIFT LINKAGE ASSEMBLY NORWEGIAN 6X6 (4923742374010A)
by
CONROL ASSEMBLY,RH Norwegian 6X6 (4923742374019A)
STEERING ASSEMBLY NORWEGIAN 6X6 (4923742374017A)
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
3
4
4
5
6
7
8
9
10
11
12
12
13
14
14
14
14
15
16
17
18
18
19
19
20
20
21
21
22
22
23
23
23
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
49
49
49
50
51
52
53
54
55
56
58
59
60
61
62
63
64
65
66
1
PAD; HANDLEBAR
5810379
9999999
Not Available
1
FLYWHEEL WITH RING GEAR
3083939
9999999
Not Available
1
PLATE ASM.
3083979
9999999
Not Available
2
PLATE COIL
3083634
9999999
Not Available
2
BOLT
7512286
7515197
$2,09 Unit Price incl. VAT
3
HARNESS WIRE
3083978
9999999
Not Available
3
MOUNT HDLBR. PAD
5220946
9999999
Not Available
4
BLOCK HANDLEBAR
5630187
9999999
Not Available
4
COIL EXCITING
3083422
9999999
Not Available
5
SWITCH-MAGNETIC
3083211
4011335
$115,49 Unit Price incl. VAT
5
TUBE HDLBR BLACK
5224316067
Not Available
6
POST STEERING
1843030067
Not Available
6
COIL LIGHT(STATOR 1)
3083976
9999999
Not Available
7
WASHER
3083357
9999999
Not Available
7
BUSHING STRG. UPPER
5430966
5433416
$16,79 Unit Price incl. VAT
8
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
8
CLAMP
3081296
9999999
Not Available
9
ASM. SCREW & WASHER
3083423
9999999
Not Available
9
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
10
SCREW&WASHER ASM.(10)
3083736
9999999
Not Available
10
BRKT UP.STRG.BUSH BLK.
5220887067
Not Available
11
SCREW&WASHER ASM(10)
3081256
9999999
Not Available
11
TIE ROD ASM. Substituted by 1822310
1822081
Not Available
12
ASM. SCREW&WASHER(10)
3081260
9999999
Not Available
12
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
13
NUT CASTLE(10)
7546904
9999999
Not Available
13
COUPLER
3083909
9999999
Not Available
14
GROMMET
3083773
9999999
Not Available
14
HUB STRUT ASM LH (Incl. 6 18 20 23 24)
1843033
Not Available
14
HUB STRUT ASM RH (Incl. 6 18 20 23 24)
1843034
Not Available
15
SCREW&WASHER
3083774
9999999
Not Available
15
BALL JOINT
7080364
7061306
$52,49 Unit Price incl. VAT
16
COIL IGNITION
3083923
9999999
Not Available
16
BALL JOINT BRACKET
5211121
$62,99 Unit Price incl. VAT
17
SOCKET BOLT
7512284
$2,09 Unit Price incl. VAT
17
SUBSTITUTED BY 4083595
3083282
$52,49 Unit Price incl. VAT
18
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
18
CDI UNIT
3083977
9999999
Not Available
19
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
20
O RING
5410458
9999999
Not Available
21
BUSHING A-ARM
3563604
9999999
Not Available
22
WASHER
7555774
9999999
Not Available
23
A FRAME LH
1580033067
Not Available
23
A FRAME RH
1580034067
Not Available
24
SHAFT A-ARM
5020529
9999999
Not Available
25
COTTER PIN
7661404
$9,44 Unit Price incl. VAT
26
BUSHING
7555781
9999999
Not Available
27
BUSHING STRG. LOWER
5430895
9999999
Not Available
28
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
29
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
30
SCREW
7512307
$7,34 Unit Price incl. VAT
31
BRKT; IGN. PANEL
5220965067
Not Available
32
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
33
GRIP; HANDLEBAR
5431030
5433834-070
$52,49 Unit Price incl. VAT
34
BOLT
7512265
9999999
Not Available
35
TIE ROD
5020528
9999999
Not Available
36
ROD END; RH
7060149
9999999
Not Available
37
ROD END
7060147
9999999
Not Available
38
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
39
NUT LH 10 MM.
7546902
9999999
Not Available
40
CLIP
7080278
9999999
Not Available
41
DECAL O#RIDE SWITCH Substituted by 7076273
7073162
Not Available
42
BOLT
7515512
9999999
Not Available
43
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
44
WASHER
7555792
$9,44 Unit Price incl. VAT
45
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
46
SEAL SPEEDO.CABLE
3280132
9999999
Not Available
47
SCREW SPEC.
5020601
9999999
Not Available
48
SEAL ANGLE DRIVE
3280131
9999999
Not Available
49
SHIELD RH CV JOINT
5431149
9999999
Not Available
49
SHIELD LH CV JOINT
5431150
9999999
Not Available
50
KEY SQUARESPEEDO.
3280134
9999999
Not Available
51
CABLE; SPEEDOMETER
3280130
9999999
Not Available
52
ROD END SEAL BOOT
5410540
9999999
Not Available
53
NUT LOCK
7542403
9999999
Not Available
54
SCREW
7512017
9999999
Not Available
55
BOOT; RUBBER
5410548
5412658
$9,44 Unit Price incl. VAT
56
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
58
ADAPTER;DRIVE;(1:1.2);ATV
3280128
9999999
Not Available
59
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
60
HAIRPIN COTTER
7660701
9999999
Not Available
61
SPEEDO.(KPH) SCAND.ATV
3280135
9999999
Not Available
62
MOUNT SPEEDOMETER
5410546
9999999
Not Available
63
BRACKET SPEEDO
5222269067
Not Available
64
SPACER SPEEDO.MTG.
5810442
9999999
Not Available
65
PLATE MTG (SPEEDO)
5211189
9999999
Not Available
66
WASHER
7555725
9999999
Not Available

Find the detailed STEERING ASSEMBLY NORWEGIAN 6X6 (4923742374017A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for Euro Big Boss 6x6 - S928727

CV JOINT 250 6X6 / W928727 (4922842284011B)

CV JOINT 250 6X6 / W928727 (4922842284011B)

for Euro Big Boss 6x6 - S928727 from 1992

FRONT STRUT ASSEMBLY 250 6X6 / W928727 (4922842284012A)

FRONT STRUT ASSEMBLY 250 6X6 / W928727 (4922842284012A)

for Euro Big Boss 6x6 - S928727 from 1992

FRONT WHEEL ASSEMBLY 250 6X6 / W928727 (4922842284013A)

FRONT WHEEL ASSEMBLY 250 6X6 / W928727 (4922842284013A)

for Euro Big Boss 6x6 - S928727 from 1992

FRONT DRIVE ASSEMBLY 250 6X6/ W928727 (4922842284014A)

FRONT DRIVE ASSEMBLY 250 6X6/ W928727 (4922842284014A)

for Euro Big Boss 6x6 - S928727 from 1992

DETAILS

DETAILS

for Euro Big Boss 6x6 - S928727 from 1992

DETAILS

DETAILS

for Euro Big Boss 6x6 - S928727 from 1992

REAR WHEEL DRIVE ASSEMBLY 250 6X6 / W928727 (4922842284023A)

REAR WHEEL DRIVE ASSEMBLY 250 6X6 / W928727 (4922842284023A)

for Euro Big Boss 6x6 - S928727 from 1992

AIR BOX 250 6X6 / W928727 (4922842284025A)

AIR BOX 250 6X6 / W928727 (4922842284025A)

for Euro Big Boss 6x6 - S928727 from 1992

CLUTCH COVER ASSEMBLY 250 6X6 / W928727 (4922842284026A)

CLUTCH COVER ASSEMBLY 250 6X6 / W928727 (4922842284026A)

for Euro Big Boss 6x6 - S928727 from 1992

DRIVE CLUTCH ASSEMBLY 250 6X6 / W928727 (4922842284031A)

DRIVE CLUTCH ASSEMBLY 250 6X6 / W928727 (4922842284031A)

for Euro Big Boss 6x6 - S928727 from 1992

DRIVEN CLUTCH ASSEMBLY 250 6X6 / W928727 (4922842284032A)

DRIVEN CLUTCH ASSEMBLY 250 6X6 / W928727 (4922842284032A)

for Euro Big Boss 6x6 - S928727 from 1992

GEARCASE ASSEMBLY 250 6X6 / W928727 (4922842284033A)

GEARCASE ASSEMBLY 250 6X6 / W928727 (4922842284033A)

for Euro Big Boss 6x6 - S928727 from 1992

WIRING HARNESS 250 6X6 / W928727 (4922842284035A)

WIRING HARNESS 250 6X6 / W928727 (4922842284035A)

for Euro Big Boss 6x6 - S928727 from 1992

MIDDLE WHEEL ASSEMBLY 250 6X6 / W928727 (4922842284041A)

MIDDLE WHEEL ASSEMBLY 250 6X6 / W928727 (4922842284041A)

for Euro Big Boss 6x6 - S928727 from 1992

CRANKCASE AND CYLINDER 250 6X6 / W928727 (4922842284043A)

CRANKCASE AND CYLINDER 250 6X6 / W928727 (4922842284043A)

for Euro Big Boss 6x6 - S928727 from 1992

CRANKSHAFT AND PISTON ASSEMBLY 250 6X6 / W928727 (4922842284044A)

CRANKSHAFT AND PISTON ASSEMBLY 250 6X6 / W928727 (4922842284044A)

for Euro Big Boss 6x6 - S928727 from 1992

OIL PUMP ASSEMBLY 250 6X6 / W928727 (4922842284045A)

OIL PUMP ASSEMBLY 250 6X6 / W928727 (4922842284045A)

for Euro Big Boss 6x6 - S928727 from 1992

FRONT CAB ASSEMBLY 250 6X6 / W928727 (4922842284001A)

FRONT CAB ASSEMBLY 250 6X6 / W928727 (4922842284001A)

for Euro Big Boss 6x6 - S928727 from 1992

REAR CAB ASSEMBLY 250 6X6 / W928727 (4922842284002A)

REAR CAB ASSEMBLY 250 6X6 / W928727 (4922842284002A)

for Euro Big Boss 6x6 - S928727 from 1992

FRAME W/RACKS ASSEMBLY 250 6X6 / W928727 (4922842284003A)

FRAME W/RACKS ASSEMBLY 250 6X6 / W928727 (4922842284003A)

for Euro Big Boss 6x6 - S928727 from 1992

MUFFLER MOUNTING 250 6X6 / W928727 (4922842284008A)

MUFFLER MOUNTING 250 6X6 / W928727 (4922842284008A)

for Euro Big Boss 6x6 - S928727 from 1992

HEADLIGHT ASSEMBLY 250 6X6 / W928727 (4922842284009A)

HEADLIGHT ASSEMBLY 250 6X6 / W928727 (4922842284009A)

for Euro Big Boss 6x6 - S928727 from 1992

SHIFT LINKAGE ASSEMBLY 250 6X6 / W928727 (4922842284010A)

SHIFT LINKAGE ASSEMBLY 250 6X6 / W928727 (4922842284010A)

for Euro Big Boss 6x6 - S928727 from 1992

CV JOINT 250 6X6 / W928727 (4922842284011A)

CV JOINT 250 6X6 / W928727 (4922842284011A)

for Euro Big Boss 6x6 - S928727 from 1992

STEERING ASSEMBLY 250 6X6 / W928727 (4922842284015A)

STEERING ASSEMBLY 250 6X6 / W928727 (4922842284015A)

for Euro Big Boss 6x6 - S928727 from 1992

CONTROL ASSEMBLY, RH 250 6x6 / W928727 (4922842284017A)

CONTROL ASSEMBLY, RH 250 6x6 / W928727 (4922842284017A)

for Euro Big Boss 6x6 - S928727 from 1992

CONTROL ASSEMBLY, LH 250 6x6 / W928727 (4922842284018A)

CONTROL ASSEMBLY, LH 250 6x6 / W928727 (4922842284018A)

for Euro Big Boss 6x6 - S928727 from 1992

UTILITY DUMP BOX ASSEMBLY 250 6X6 / W928727 (4922842284019A)

UTILITY DUMP BOX ASSEMBLY 250 6X6 / W928727 (4922842284019A)

for Euro Big Boss 6x6 - S928727 from 1992

MIDDLE DRIVE ASSEMBLY ASSEMBLY 250 6X6 / W928727 (4922842284027A)

MIDDLE DRIVE ASSEMBLY ASSEMBLY 250 6X6 / W928727 (4922842284027A)

for Euro Big Boss 6x6 - S928727 from 1992

FRONT BRAKE 250 6X6 / W928727 (4922842284028A)

FRONT BRAKE 250 6X6 / W928727 (4922842284028A)

for Euro Big Boss 6x6 - S928727 from 1992

REAR SWING ARM SHOCK 250 6X6 / W928727 (4922842284029A)

REAR SWING ARM SHOCK 250 6X6 / W928727 (4922842284029A)

for Euro Big Boss 6x6 - S928727 from 1992

RIGHT CHAIN COVER ASSEMBLY 250 6X6 / W928727 (4922842284030A)

RIGHT CHAIN COVER ASSEMBLY 250 6X6 / W928727 (4922842284030A)

for Euro Big Boss 6x6 - S928727 from 1992

BATTERY BOX ASSEMBLY 250 6X6 / W928727 (4922842284036A)

BATTERY BOX ASSEMBLY 250 6X6 / W928727 (4922842284036A)

for Euro Big Boss 6x6 - S928727 from 1992

GEARCASE / BRAKE 250 6X6 / W928727 (4922842284037A)

GEARCASE / BRAKE 250 6X6 / W928727 (4922842284037A)

for Euro Big Boss 6x6 - S928727 from 1992

REAR BRAKE 250 6X6 / W928727 (4922842284038A)

REAR BRAKE 250 6X6 / W928727 (4922842284038A)

for Euro Big Boss 6x6 - S928727 from 1992

SWING ARM WELDMENT (MIDDLE) 250 6X6 / W928727 (4922842284039A)

SWING ARM WELDMENT (MIDDLE) 250 6X6 / W928727 (4922842284039A)

for Euro Big Boss 6x6 - S928727 from 1992

CARBURETOR 250 6X6 / W928727 (4922842284046A)

CARBURETOR 250 6X6 / W928727 (4922842284046A)

for Euro Big Boss 6x6 - S928727 from 1992

STARTING MOTOR ASSEMBLY 250 6X6 / W928727 (4922842284047A)

STARTING MOTOR ASSEMBLY 250 6X6 / W928727 (4922842284047A)

for Euro Big Boss 6x6 - S928727 from 1992

MAGNETO ASSEMBLY 250 6X6 / W928727 (4922842284048A)

MAGNETO ASSEMBLY 250 6X6 / W928727 (4922842284048A)

for Euro Big Boss 6x6 - S928727 from 1992

RECOIL STARTER ASSEMBLY 250 6X6 / W928727 (4922842284049A)

RECOIL STARTER ASSEMBLY 250 6X6 / W928727 (4922842284049A)

for Euro Big Boss 6x6 - S928727 from 1992

FRAME ASSEMBLY W/RACKS NORWEGIAN 6X6 (4923742374003A)

FRAME ASSEMBLY W/RACKS NORWEGIAN 6X6 (4923742374003A)

for Euro Big Boss 6x6 - S928727 from 1992

SHIFT LINKAGE ASSEMBLY NORWEGIAN 6X6 (4923742374010A)

SHIFT LINKAGE ASSEMBLY NORWEGIAN 6X6 (4923742374010A)

for Euro Big Boss 6x6 - S928727 from 1992

STEERING ASSEMBLY NORWEGIAN 6X6 (4923742374017A)

STEERING ASSEMBLY NORWEGIAN 6X6 (4923742374017A)

for Euro Big Boss 6x6 - S928727 from 1992

CONROL ASSEMBLY,RH Norwegian 6X6 (4923742374019A)

CONROL ASSEMBLY,RH Norwegian 6X6 (4923742374019A)

for Euro Big Boss 6x6 - S928727 from 1992

FRAME ASSEMBLY W/RACKS SWEDISH 6X6 (4923752375003A)

FRAME ASSEMBLY W/RACKS SWEDISH 6X6 (4923752375003A)

for Euro Big Boss 6x6 - S928727 from 1992

SHIFT LINKAGE ASSEMBLY SWEDISH 6X6 (4923752375010A)

SHIFT LINKAGE ASSEMBLY SWEDISH 6X6 (4923752375010A)

for Euro Big Boss 6x6 - S928727 from 1992

STEERING ASSEMBLY SWEDISH 6X6 (4923752375017A)

STEERING ASSEMBLY SWEDISH 6X6 (4923752375017A)

for Euro Big Boss 6x6 - S928727 from 1992

CONTROL ASSEMBLY, RH Swedish 6X6 (4923752375019A)

CONTROL ASSEMBLY, RH Swedish 6X6 (4923752375019A)

for Euro Big Boss 6x6 - S928727 from 1992

PARKING BRAKE SWEDISH 6X6 (4923752375052A)

PARKING BRAKE SWEDISH 6X6 (4923752375052A)

for Euro Big Boss 6x6 - S928727 from 1992

FUEL TANK ASSEMBLY 250 6X6 / W928727 (4922842284004A)

FUEL TANK ASSEMBLY 250 6X6 / W928727 (4922842284004A)

for Euro Big Boss 6x6 - S928727 from 1992

OIL TANK ASSEMBLY 250 6X6 / W928727 (4922842284005A)

OIL TANK ASSEMBLY 250 6X6 / W928727 (4922842284005A)

for Euro Big Boss 6x6 - S928727 from 1992

ENGINE MOUNTING 250 6X6 / W928727 (4922842284006A)

ENGINE MOUNTING 250 6X6 / W928727 (4922842284006A)

for Euro Big Boss 6x6 - S928727 from 1992

FAN ASSEMBLY 250 6X6 / W928727 (4922842284007A)

FAN ASSEMBLY 250 6X6 / W928727 (4922842284007A)

for Euro Big Boss 6x6 - S928727 from 1992

CONTROL ASSEMBLY, LH Norwegian 6X6 (4923742374020A)

CONTROL ASSEMBLY, LH Norwegian 6X6 (4923742374020A)

for Euro Big Boss 6x6 - S928727 from 1992

MIDDLE DRIVE ASSEMBLY ASSEMBLY NORWEGIAN 6X6 (4923742374029A)

MIDDLE DRIVE ASSEMBLY ASSEMBLY NORWEGIAN 6X6 (4923742374029A)

for Euro Big Boss 6x6 - S928727 from 1992

GEARCASE ASSEMBLY NORWEGIAN 6X6 (4923742374035A)

GEARCASE ASSEMBLY NORWEGIAN 6X6 (4923742374035A)

for Euro Big Boss 6x6 - S928727 from 1992

REAR BRAKE NORWEGIAN 6X6 (4923742374040A)

REAR BRAKE NORWEGIAN 6X6 (4923742374040A)

for Euro Big Boss 6x6 - S928727 from 1992

PARKING BRAKE NORWEGIAN 6X6 (4923742374052A)

PARKING BRAKE NORWEGIAN 6X6 (4923742374052A)

for Euro Big Boss 6x6 - S928727 from 1992

CONTROLS, LH SWEDISH 6X6 (4923752375020A)

CONTROLS, LH SWEDISH 6X6 (4923752375020A)

for Euro Big Boss 6x6 - S928727 from 1992

MIDDLE DRIVE ASSEMBLY ASSEMBLY SWEDISH 6X6 (4923752375029A)

MIDDLE DRIVE ASSEMBLY ASSEMBLY SWEDISH 6X6 (4923752375029A)

for Euro Big Boss 6x6 - S928727 from 1992

GEARCASE ASSEMBLY SWEDISH 6X6 (4923752375035A)

GEARCASE ASSEMBLY SWEDISH 6X6 (4923752375035A)

for Euro Big Boss 6x6 - S928727 from 1992

REAR BRAKE SWEDISH 6X6 (4923752375040A)

REAR BRAKE SWEDISH 6X6 (4923752375040A)

for Euro Big Boss 6x6 - S928727 from 1992

POLARIS Euro Big Boss 6x6 - S928727 1992

Euro Big Boss 6x6 - S928727

Euro Big Boss 6x6 - S928727

Model : Euro Big Boss 6x6

Engine capacity : autre

Year : 1992

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
