1
Engine displacement
autre
2
Year
1992
3
Trim
Euro Big Boss 6x6 - S928727
4
Parts Catalog

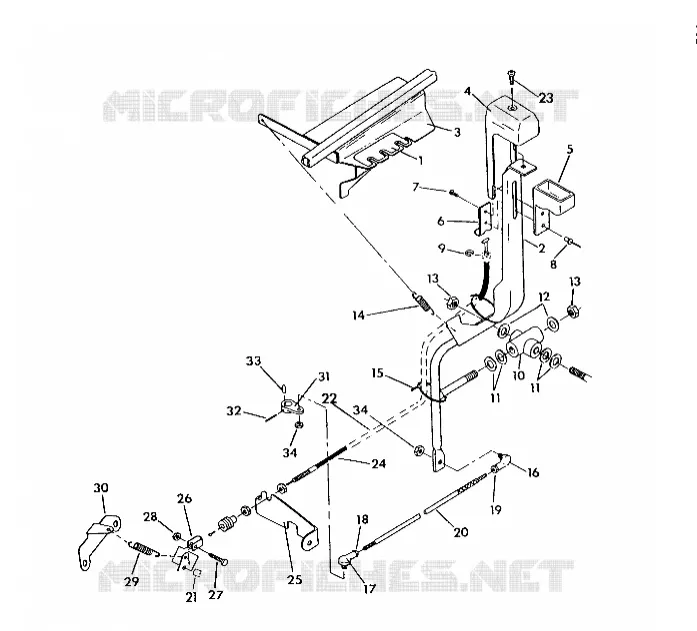

SHIFT LINKAGE ASSEMBLY 250 6X6 / W928727 (4922842284010A)
5
Parts Diagram
Parts Catalog
HEADLIGHT ASSEMBLY 250 6X6 / W928727 (4922842284009A)
by
CV JOINT 250 6X6 / W928727 (4922842284011A)
SHIFT LINKAGE ASSEMBLY 250 6X6 / W928727 (4922842284010A)
1
DECAL SHIFT PATTERN [No Longer Available]
7072905
Not Available
2
LEVER SHIFT
1341094067
Not Available
3
PLATE SHIFT WELD.
1341097
Not Available
4
HANDLE SHIFT LEVER
5431267
9999999
Not Available
5
LEVER SHIFT(ACTUATOR)
5431266
Not Available
6
CLIP CABLE CONNECT.
5222576
9999999
Not Available
7
SCREW
7511868
9999999
Not Available
8
RIVET POP(10)
7621322
9999999
Not Available
9
RING RETAIN.EXT
7710421
9999999
Not Available
10
SHIFT POINT BLOCK
5431106
9999999
Not Available
11
WAVE SPRING WASHER
7555795
$2,09 Unit Price incl. VAT
12
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
13
NUT FLEX-LOC
7542303
9999999
Not Available
14
SPRING SHIFT LEVER
7041227
9999999
Not Available
15
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
16
ROD END; LH
7060141
7061013
$120,74 Unit Price incl. VAT
17
ROD END; RH
7060142
9999999
Not Available
18
NUT
7546701
9999999
Not Available
19
BOLT
7546702
9999999
Not Available
20
ROD SHIFT LINKAGE
5020538
9999999
Not Available
21
BUSHING
5332795
9999999
Not Available
22
TAPE FOIL (1X11)
5810487
Not Available
23
SCREW
7512029
9999999
Not Available
24
CABLE; SHIFT
7080420
9999999
Not Available
25
SHIFTLOCK CABLE BLK.
5222569067
Not Available
26
PIN; CLEVIS
7080316
9999999
Not Available
27
BOLT BLACK
7512282
9999999
Not Available
28
NUT HEX-LOCK(10)
7542101
$7,34 Unit Price incl. VAT
29
SPRING LOCK(TRANS.)
7042035
Not Available
30
BRKT SPRING SHIFTLOCK
5222570067
Not Available
31
LEVER SHIFT
5130783
9999999
Not Available
32
PIN SPIRAL
7661506
9999999
Not Available
33
KEY; HI-PRO
7721113
9999999
Not Available
34
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT

Find the detailed SHIFT LINKAGE ASSEMBLY 250 6X6 / W928727 (4922842284010A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
