ENGINE, CYLINDER for POLARIS 800 AXYS SKS 146 from 2019

ENGINE, CYLINDER

1

SCREW 8 MM X 1.25 MM X 55 MM

7517533

$8,39 Unit Price incl. VAT

2

SCR-M6X1.0X13 SL/HX/FL-Z BLEED

7520470

$9,44 Unit Price incl. VAT

3

FLAT WASHER

7555998

$2,09 Unit Price incl. VAT

4

SCREW

7516825

$10,49 Unit Price incl. VAT

5

SCREW M6 X 1.0; L-20MM

7516822

$4,19 Unit Price incl. VAT

6

COVER-TSTAT DUAL OUT MACH CH

5140362

$52,49 Unit Price incl. VAT

7

COVER-HEAD 85 CH BP MACH

5140277

$115,49 Unit Price incl. VAT

8

O-RING

5411411

$1,56 Unit Price incl. VAT

9

SEAL-GLAND HEAD 800 CH;FB

5415812

$18,89 Unit Price incl. VAT

10

CYLINDER HEAD

3023109

$472,49 Unit Price incl. VAT

11

HEX FLANGE SCREW 10MM X 1.50MM X 100MM

7518774

$11,54 Unit Price incl. VAT

12

HI TEMP O-RING; 3.664 X 3.804 X 07

5413319

$36,74 Unit Price incl. VAT

13

CYLINDER GLAND SEAL

5413288

$41,99 Unit Price incl. VAT

14

MONOBLOCK CYLINDER

3022828

$1 858,49 Unit Price incl. VAT

15

CYLINDER BASE GASKET

5814279

$62,99 Unit Price incl. VAT

16

HOSE-COOLANT 5/16 22CM LONG

5415236

$12,59 Unit Price incl. VAT

17

SPRINGBAND CLAMP;14.0/10

7082198

$4,19 Unit Price incl. VAT

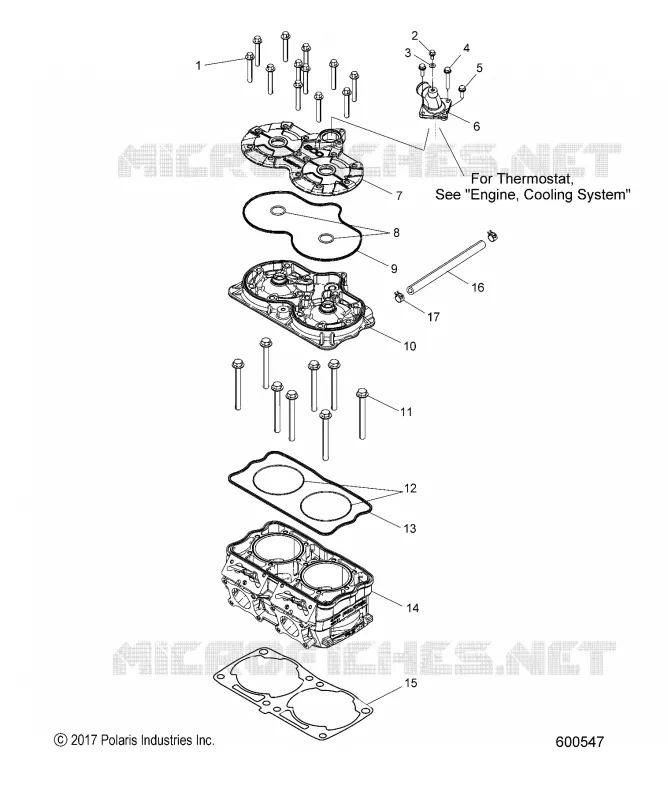

Find the detailed ENGINE, CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
