STEERING, LOWER for POLARIS 800 AXYS SKS 146 from 2019

STEERING, LOWER

1

STEERING POST LOWER BUSHING

5450880

$13,64 Unit Price incl. VAT

2

BRUSHING SPACER

5137796

$7,34 Unit Price incl. VAT

3

STEERING STRAP

5258308

$6,29 Unit Price incl. VAT

4

HEX FLANGE SCREW; 8 MM X 1.25 MM X 55 MM

7519242

$9,44 Unit Price incl. VAT

5

DRAG LINK ASSEMBLY; FIXED

7061186

$188,99 Unit Price incl. VAT

6

SCR-M8X1.25X25 8.8 SH ZOD P30

7519010

$7,34 Unit Price incl. VAT

7

WASHER

7556153

$3,66 Unit Price incl. VAT

8

SCR-TXTH-M8X1.25X35 8.8 ZOD

7519238

$11,54 Unit Price incl. VAT

9

NUT-HH M10X1.5 NYLOC ZOD

7547442

$7,34 Unit Price incl. VAT

10

ROD END; RIGHT; 10 MM X 26.5 MM; 70 DEG

7061166

$104,99 Unit Price incl. VAT

11

NUT-M10X1.5 ZOD

7547430

9999999

Not Available

12

TIE ROD

5335899

$68,24 Unit Price incl. VAT

13

NUT-M10X1.5 LH ZOD

7547431

$6,29 Unit Price incl. VAT

14

ROD END; LEFT; 10 MM X 23 MM; 75 DEG

7061165

$104,99 Unit Price incl. VAT

15

RACK LINK ASSEMBLY

7061190

$121,79 Unit Price incl. VAT

16

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

17

FLAT WASHER

7555806

$1,56 Unit Price incl. VAT

18

PITMAN ASSEMBLY

1824761

$246,74 Unit Price incl. VAT

19

IDLER ASSEMBLY

1824547

$220,49 Unit Price incl. VAT

20

SCR-HXFL-M8X1.25X85 10.9 ZOD

7519972

$17,84 Unit Price incl. VAT

21

SKI PIVOT BUSHING

5438460

$27,29 Unit Price incl. VAT

22

SHAFT-PIVOT IDLER

5138365

$47,24 Unit Price incl. VAT

23

RIGHT HAND TIE ROD BOOT ASSEMBLY

2635203

$73,49 Unit Price incl. VAT

23

LEFT HAND TIE ROD BOOT ASSEMBLY

2635202

$73,49 Unit Price incl. VAT

24

TIE ROD BOOT BUSHING

5439309

$20,99 Unit Price incl. VAT

25

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

26

XMAS TREE CLIP; .70 X .187 DIA

7661953

$2,09 Unit Price incl. VAT

27

SCR-TXTH-M6X1.0X15 ZPB TAP

7519092

$2,09 Unit Price incl. VAT

28

NUT-M8X1.25C10 HX NYL DIN982 Z

7547405

$2,09 Unit Price incl. VAT

29

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

30

WASHER-FL 8.4X16.0X.91 HRD ZOD

7557059

$6,29 Unit Price incl. VAT

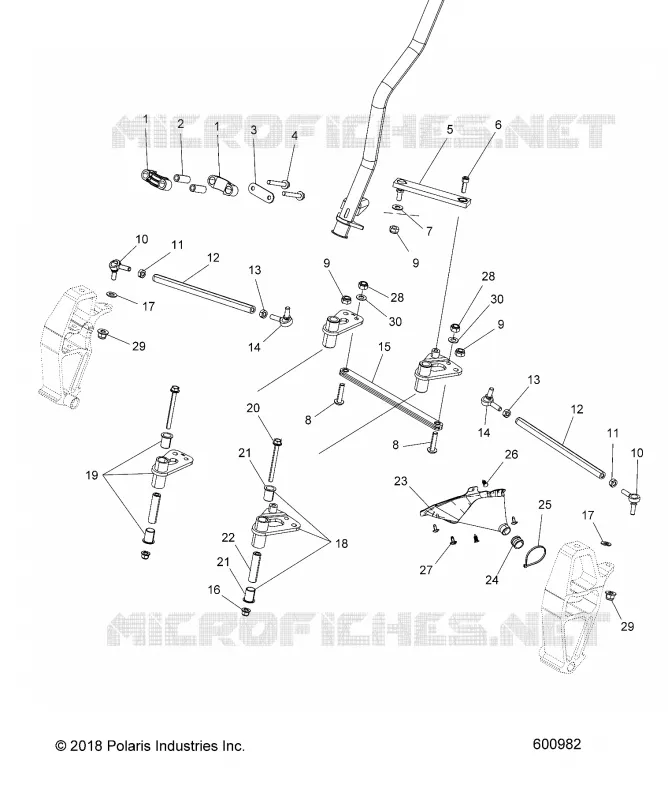

Find the detailed STEERING, LOWER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
