CHASSIS, CAB FRAME for POLARIS RANGER XD 1500 PREMIUM CREW from 2024

CHASSIS, CAB FRAME

1

WELD-ROPS MP LH BLK

1026540458

Not Available

2

WELD-ROPS MP RH BLK

1026541458

Not Available

3

WELD-ROPS REAR MOUNT BLK

1026756458

Not Available

4

BRKT-ROPS UPPER CROSS MID BLK

5271553329

Not Available

5

SCR-HXFL-M10X1.5X55 10.9 ZFB

752133355

Not Available

6

SCR-HXFL-M10X1.5X85 10.9 ZFB

752133385

Not Available

7

SCR-HXFL-M14X2.0X90 10.9 ZFB

752133590

Not Available

8

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$5,24 Unit Price incl. VAT

9

NUT-HXFL-M14X2.0 8 ZTB NYL

7548031

$6,29 Unit Price incl. VAT

10

WELD-ROPS VISOR FRT TOP ECOAT

1028461329

Not Available

11

SCR-HXFL-M10X1.5X20 10.9 ZFB

752133320

Not Available

12

SEAL-ROPS CHASSIS FRONT LH

5526433

$73,49 Unit Price incl. VAT

13

SEAL-ROPS CHASSIS FRONT RH

5526434

$73,49 Unit Price incl. VAT

14

SEAL-ROPS CHASSIS REAR LH

5526435

$73,49 Unit Price incl. VAT

15

SEAL-ROPS CHASSIS REAR RH

5526436

$73,49 Unit Price incl. VAT

16

X-MAS TREE CLIP

7670101

$4,19 Unit Price incl. VAT

17

HANDLE-GRAB ROPS BLK

5465599070

Not Available

18

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

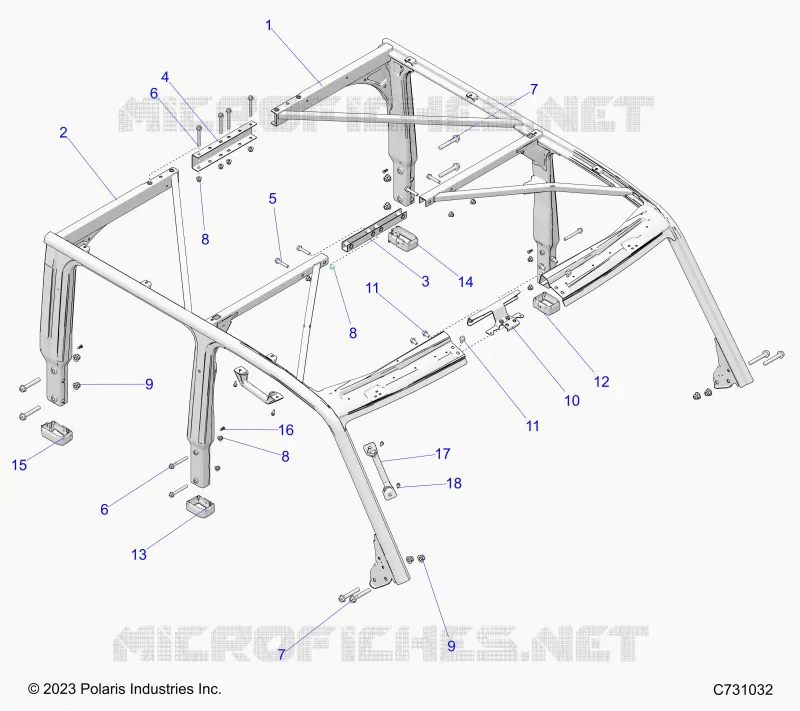

Find the detailed CHASSIS, CAB FRAME POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
