BRAKES, REAR CALIPER for POLARIS RANGER XD 1500 PREMIUM CREW from 2024

BRAKES, REAR CALIPER

1

CALIPER-BRK;WT;35X35

5144309

$104,99 Unit Price incl. VAT

1

ASM-BRK-CAL-RL-35X35 ALG

1914340

$325,49 Unit Price incl. VAT

1

ASM-BRK-CAL-RR-35X35 ALG

1914341

$325,49 Unit Price incl. VAT

1

CALIPER-BRK;WT;35X35

5144308

$104,99 Unit Price incl. VAT

2

ASM-CALIPER MNT-WT 99.82 LH

1914183

$83,99 Unit Price incl. VAT

2

ASM-CALIPER MNT-WT 99.82 RH

1914184

$83,99 Unit Price incl. VAT

3

K-ASM PAD BRK

2211902

$100,79 Unit Price incl. VAT

4

PISTON-BRAKE 35MM AL GROOVE

5144785

$73,49 Unit Price incl. VAT

5

PIN BUSHING BOOT

5412505

$6,29 Unit Price incl. VAT

6

PIN SEAL BOOT

5412506

$6,29 Unit Price incl. VAT

7

SQ RING-MOLDED(34.9X2.6X3.4)

5418221

$2,40 Unit Price incl. VAT

8

SCR-M7X1.0 BLEEDER

7082848

$6,29 Unit Price incl. VAT

9

SCR-M10X1.0X8 SOC SET-OD

7518863

$17,84 Unit Price incl. VAT

10

SCR-HXFL-M6X1.0X10 8.8 ZTB 251

7528157

$5,24 Unit Price incl. VAT

11

SCR-HXFL-M10X1.25X40 ZOD NYL

7519254

$11,54 Unit Price incl. VAT

12

SCRAPER-BRAKE REAR

5639395

$20,99 Unit Price incl. VAT

13

SCREW

7519280

$9,44 Unit Price incl. VAT

14

ROTOR-BRK 262OD 7.5T 26OFST

1914169

$141,74 Unit Price incl. VAT

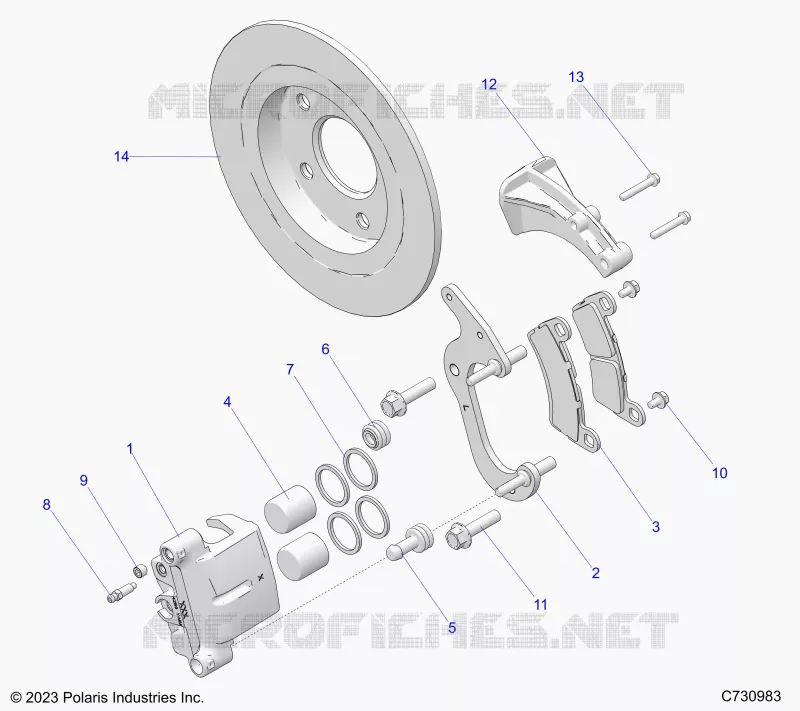

Find the detailed BRAKES, REAR CALIPER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
