SUSPENSION, CONTROL ARMS, SPINDLE AND SHOCK MNTG. for POLARIS 850 AXYS PRO-RMK / 174 3" from 2019

DRIVE TRAIN, CHAINCASE

SUSPENSION, CONTROL ARMS, SPINDLE AND SHOCK MNTG.

1

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

2

PIVOT SHAFT

5140556

$52,49 Unit Price incl. VAT

3

WASHER 18.35 X 25 X 1.575

7556959

$1,56 Unit Price incl. VAT

4

PIVOT BUSHING; SHORT

5454428

$7,34 Unit Price incl. VAT

5

RETAINING RING; 18 MM

7710786

$3,14 Unit Price incl. VAT

6

RING-RET INT 1.125

7710642

$4,19 Unit Price incl. VAT

7

WRENCH-8MMX10MM OPEN END

Not Available

8

CTRL ARM UPR RIGHT SIDE GS BLK INTL ONLY

1824655067

Not Available

8

CONTROL ARM UPPER LEFT SIDE GLOSS GS BLK

1824654067

Not Available

9

WASHER 10.5 X 24 X 1.2446

7556545

$6,29 Unit Price incl. VAT

10

ASM-SPINDLE RMK FORG LH ORGBST

1824649647

Not Available

10

ASM-SPINDLE RMK FORG LH ISKYBL

1824649737

Not Available

10

ASM-SPINDLE RMK FORG RH GLBLK

1824650067

Not Available

10

SPINDLE ASM RMK FORGED LEFT LIME SQUEEZE

1824649630

Not Available

10

ASM-SPINDLE RMK FORG RH IRED

1824650293

Not Available

10

ASM-SPINDLE RMK FORG LH GLBLK

1824649067

Not Available

10

SPINDLE ASM RMK FORGED ORG BURST

1824650647

Not Available

10

ASM-SPINDLE RMK FORG LH IRED

1824649293

Not Available

10

SPINDLE ASSEMBLY; LEFT; BR WHT; RMK

1824649133

Not Available

10

SPINDLE ASSEMBLY; RIGHT; BR WHT; RMK

1824650133

Not Available

10

FORGED SPINDLE ASM RHT IND SKY BLUE RMK

1824650737

Not Available

10

ASM-SPINDLE RMK FORG RH LMSQU

1824650630

Not Available

11

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

12

SKI PIVOT BUSHING

5438460

$27,29 Unit Price incl. VAT

13

BUSHING 15.88 X 10.13 X 76.20

5136910

$13,64 Unit Price incl. VAT

14

RHT SIDE LWR CTRL ARM NARROW GLS GS BLK

1824653067

Not Available

14

LFT SIDE LWR CTRL ARM NARROW GLS GS BLK

1824652067

Not Available

15

WRENCH-8MMX10MM OPEN END

Not Available

16

BOLT-M10X1.25X85MM HXFLG OLV D

7520152

$5,99 Unit Price incl. VAT

17

RING-RETAINING 1.25 ID HSNG

7710539

$4,19 Unit Price incl. VAT

18

CONTROL ARM PIVOT SHAFT; LOWER; FRONT

5140557

$52,49 Unit Price incl. VAT

19

HEX FLANGE SCREW; 10 MM X 1.5 MM X 95 MM

7518917

$9,44 Unit Price incl. VAT

20

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

21

SCR-HXFL-M8X1.25X50 DP ZODP30

7519245

$7,34 Unit Price incl. VAT

22

WASHER-.344X.688X.063 FL-ZOD

7556524

$1,56 Unit Price incl. VAT

23

SPACER 8.2 X 19

5138124

$8,39 Unit Price incl. VAT

24

WRENCH-8MMX10MM OPEN END

Not Available

25

SCREW 10 MMX 1.5 MM X 60 MM

7518941

$7,34 Unit Price incl. VAT

26

BUSHING 10 MM X 17.5 MM X 30

5137360

$7,34 Unit Price incl. VAT

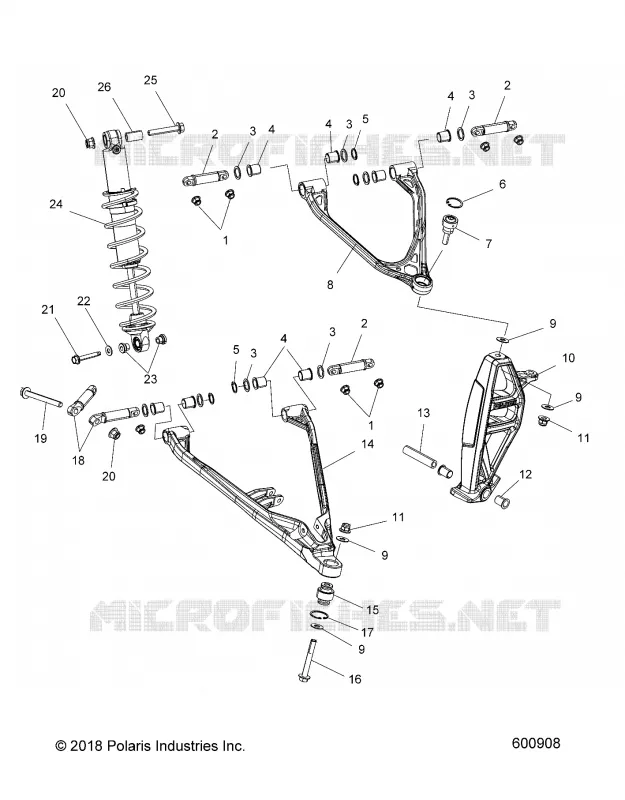

Find the detailed SUSPENSION, CONTROL ARMS, SPINDLE AND SHOCK MNTG. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
