Parts Catalog

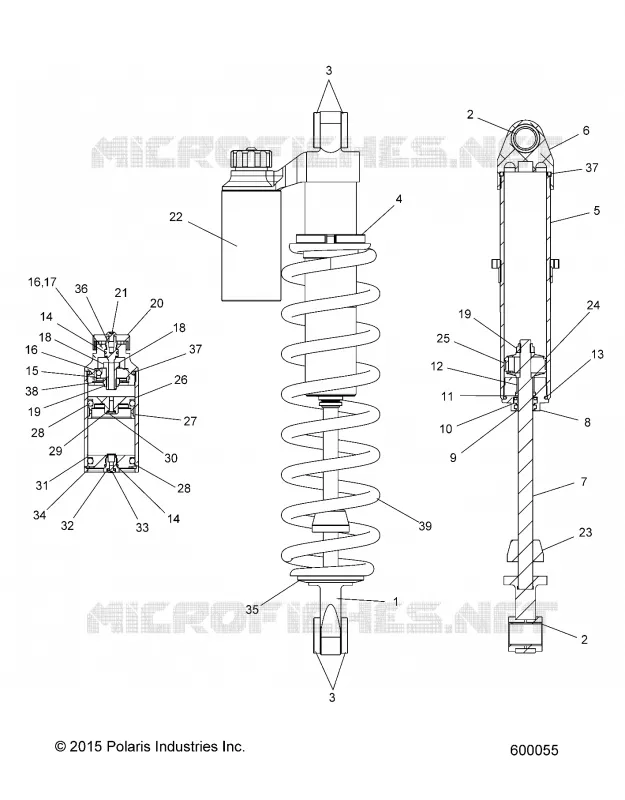

SUSPENSION, REAR SHOCK TRACK, W/RES.
5
Parts Diagram
Parts Catalog
SWAY BAR
by
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
SUSPENSION, REAR SHOCK TRACK, W/RES.
-
11
12
13
13
14
14
15
16
17
18
18
19
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
37
37
38
39
39
39
-
PIGGYBACK RTS SHOCK; WALKER EVANS
7044301
$1 364,99 Unit Price incl. VAT
1
LOOP SHAFT CLR 1400103
1800726
$272,99 Unit Price incl. VAT
2
SLEEVE; 1.15L
1800405
$62,99 Unit Price incl. VAT
3
BUSHING
1800406
$9,44 Unit Price incl. VAT
4
SPRING RETAINER
1800046
$68,24 Unit Price incl. VAT
5
BODY RT 7.84 BLK 1400125
1800729
$220,49 Unit Price incl. VAT
6
END CAP; 90 PB BLK (1001148)
1800413
$194,24 Unit Price incl. VAT
7
SHAFT .50 X 8.6L
1800730
$230,99 Unit Price incl. VAT
8
SEAL HEAD ASSEMBLY
1800403
$220,49 Unit Price incl. VAT
9
WIPER SEAL
1800295
$26,24 Unit Price incl. VAT
10
SEAL; U-CUP
1800294
$47,24 Unit Price incl. VAT
11
O-RING
1800095
$2,09 Unit Price incl. VAT
12
SHAFT BUSHING
1800292
9999999
Not Available
13
O-RING BODY
1800027
$3,66 Unit Price incl. VAT
14
O-RING STUD
1800215
$14,16 Unit Price incl. VAT
15
CLICKER PISTON
1800353
$173,24 Unit Price incl. VAT
16
BALL-D-TENT(10)
1800127
$12,59 Unit Price incl. VAT
17
SPRING-D-TENT(10)
1800128
$20,99 Unit Price incl. VAT
18
BOLT; CLICKER (900606)
1800354
$23,09 Unit Price incl. VAT
19
CRIMP NUT 3/8 IN
1800031
$7,34 Unit Price incl. VAT
20
KNOB; CLICKER BLACK
1800418
$173,24 Unit Price incl. VAT
21
SCREW 10X5/8 BTN SS (500603)
1800357
$6,29 Unit Price incl. VAT
22
BODY RES 3.75L BLK(1020334)
1800419
9999999
Not Available
23
BUMPER SHAFT; .62
1800462
$68,24 Unit Price incl. VAT
24
PISTON CONVEX
1800001
9999999
Not Available
25
TEFLON WEAR BAND
1800297
$62,99 Unit Price incl. VAT
26
PISTON; RES; 2 (620204)
1800355
$152,24 Unit Price incl. VAT
27
PISTON BAND
1800185
$83,99 Unit Price incl. VAT
28
O-RING
1800184
$10,49 Unit Price incl. VAT
29
O-RING BLEED SCREW
1800210
$3,14 Unit Price incl. VAT
30
BLEED SCREW (10)
1800043
$12,59 Unit Price incl. VAT
31
END CAP;RES 2 BLK (1020207)
1800420
9999999
Not Available
32
NEEDLE VALVE
1800329
$62,99 Unit Price incl. VAT
33
SCREW-BUTTON HEAD 8/32(10)
1800109
$6,29 Unit Price incl. VAT
34
RING-SNAP
1800159
$10,49 Unit Price incl. VAT
35
SPRING RETAINING RING
1800116
$120,74 Unit Price incl. VAT
36
STUD; CLICKER (400613)
1800352
$57,74 Unit Price incl. VAT
37
BODY O-RING
1800030
$3,66 Unit Price incl. VAT
38
SNAP RING CLICKER
1800359
$6,29 Unit Price incl. VAT
39
CMPRSSN SPNG 180 .393 X 11.25 MT BLK
7044743458
Not Available
39
COMPRESSION SPRING; .421 X 11.25
7043740067
Not Available
39
SPRG-COMP .393X11.25;180# GLD
7044743703
Not Available

Find the detailed SUSPENSION, REAR SHOCK TRACK, W/RES. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
