Engine displacement
500
2
Year
1997
3
Trim
SCRAMBLER 500 - W97BC50A
4
Parts Catalog
CRANKCASE SCRAMBLER 500 W97BC50A (4943074307D003)
5
Parts Diagram
Parts Catalog
CYLINDER SCRAMBLER 500 W97BC50A (4943074307D001)
by
WATER PUMP SCRAMBLER 500 W97BC50A (4943074307D009)
CRANKCASE SCRAMBLER 500 W97BC50A (4943074307D003)
1
2
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
STARTER BUSHING
3083669
9999999
Not Available
2
CRANKCASE Substituted by 3085633
3085524
Not Available
3
PIN STRAIGHT
3084838
9999999
Not Available
4
BALL BEARING
3080676
9999999
Not Available
5
PIN DOWEL
3084840
9999999
Not Available
6
SCREW AND WASHER
3084205
9999999
Not Available
7
OIL SEAL
3084839
9999999
Not Available
8
AIR BREATHER PIPE
3085525
9999999
Not Available
9
UNION
3084842
9999999
Not Available
10
BALL BEARING
3084834
9999999
Not Available
11
BALL BEARING
3084835
9999999
Not Available
12
PLUG
3084845
9999999
Not Available
13
ALUMINUM GASKET
3084846
9999999
Not Available
14
SPRING ONE WAY VALVE
3084844
9999999
Not Available
15
VALVE
3084843
9999999
Not Available
16
BOLT FLANGE
3084841
9999999
Not Available
17
GASKET
3082956
9999999
Not Available
18
PLUG
3083453
9999999
Not Available
19
MECHANICAL SEAL
3084837
9999999
Not Available
20
OIL SEAL
3084836
9999999
Not Available
21
O-RING
3084847
9999999
Not Available
22
PIN; DOWEL
3080103
9999999
Not Available

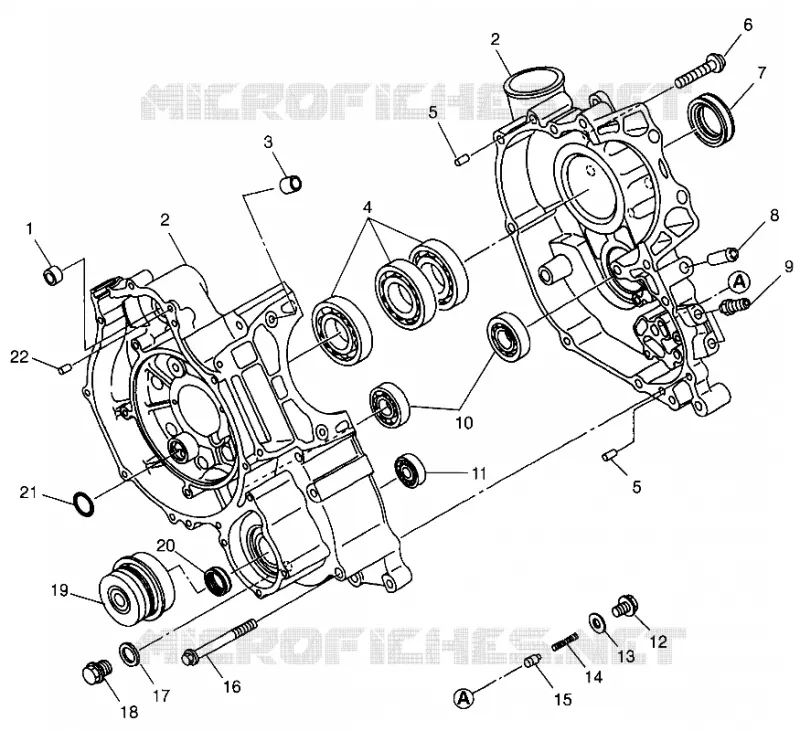

Find the detailed CRANKCASE SCRAMBLER 500 W97BC50A (4943074307D003) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
