1
Engine displacement
500
2
Year
1997
3
Trim
SCRAMBLER 500 - W97BC50A
4
Parts Catalog
COOLING SYSTEM SCRAMBLER 500 W97BC50A (4943074307A011)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING SCRAMBLER 500 W97BC50A (4943074307A009)
by
FRONT DRIVE SCRAMBLER 500 W97BC50A (4943074307B002)
COOLING SYSTEM SCRAMBLER 500 W97BC50A (4943074307A011)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
26
27
28
29
30
31
32
33
1
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
2
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
3
LIQUID COOLED MOTOR FAN
4170009
9999999
Not Available
4
BRKT FAN MOUNT BLK
5241788067
Not Available
5
SPACER
5020937
9999999
Not Available
6
MOUNT; RUBBER
3110032
9999999
Not Available
7
HOSEWATER305 CM.
8450050305
Not Available
8
HOSE CHAFE-PROTECTED
5411108
9999999
Not Available
9
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
10
HARNESS FAN/THERM.SWITCH
2460515
9999999
Not Available
11
SWITCHTHERMALFANL/C
4110225
9999999
Not Available
12
CAP; RADIATOR
2511189
9999999
Not Available
13
RADIATOR"U"FLOW
1240015
9999999
Not Available
14
BOLT
7512113
$7,34 Unit Price incl. VAT
15
WASHER
7552605
9999999
Not Available
16
SHROUD FAN (ATV)
5432593
9999999
Not Available
17
VALVE;DRAIN COCK
7052181
9999999
Not Available
18
NUT
7542154
9999999
Not Available
19
BLADE FAN
5240822
9999999
Not Available
20
SPACER
5333457
9999999
Not Available
21
SCREW
7517221
9999999
Not Available
22
BOLT
7512232
$2,09 Unit Price incl. VAT
23
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
24
NUT (10)
7547004
$9,44 Unit Price incl. VAT
25
SPACER FAN BRKT.
5432294
9999999
Not Available
26
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
27
TANK; SURGE
5431673
5436936
$152,24 Unit Price incl. VAT
28
FUEL LINE; 1/4 ID
84500031525
Not Available
29
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
30
SCREW
7512084
$2,09 Unit Price incl. VAT
31
PLUG CAP
5431895
5433774
$10,49 Unit Price incl. VAT
32
GASKET
5810279
$4,19 Unit Price incl. VAT
33
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT

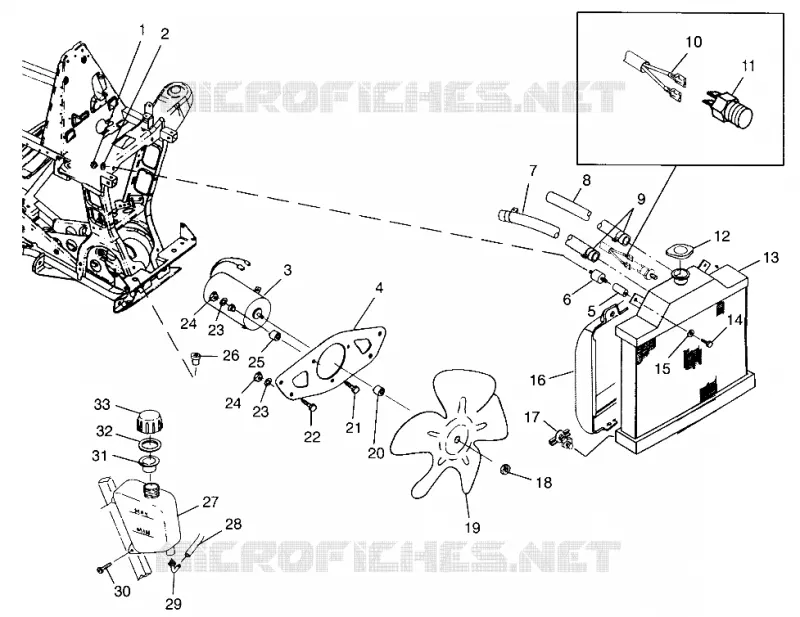

Find the detailed COOLING SYSTEM SCRAMBLER 500 W97BC50A (4943074307A011) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
