Engine displacement
800
2
Year
2014
3
Trim
RANGER 800 - R14TH76AA/AC/EAS/AAC/ACC/EASC
4
Parts Catalog
CHASSIS, FRAME AND FRONT BUMPER
5
Parts Diagram
Parts Catalog
CHASSIS, CAB FRAME
by
DRIVE TRAIN, CLUTCH COVER
CHASSIS, FRAME AND FRONT BUMPER
1
2
3
4
5
6
1
1
1
1
1
1
1
2
3
4
5
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
18
19
20
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
2
CAB AND SEAT BASE WELD; MATTE BLACK
1019938458
Not Available
3
FLOOR SUPPORT WELD; RIGHT; BLACK
1016255329
Not Available
4
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
5
M10 X 1.25 X 60 SCREW
7518563
$5,76 Unit Price incl. VAT
6
FOAM-HOOD SUPPORT
5813421
9999999
Not Available
7
SUPPORT CAB WELD; FRONT; BLK ENG; EWB
1017325521
Not Available
8
FLOOR SUPPORT WELD; LEFT; BLACK
1016254329
Not Available
9
WELD-MAIN FRAME;M BLK
1017646458
Not Available
10
BOLT-M10X1.5X75 HX HD FLG
7518473
$9,44 Unit Price incl. VAT
11
BUMPER CAP
5434191
$12,59 Unit Price incl. VAT
12
FASCIA SCREEN; GLOSS BLACK
5438241070
Not Available
13
SCR-1/4-20X1/2 TR/TX/TAP/R B
7518981
$7,34 Unit Price incl. VAT
14
BUMPER SCREEN; UPPER; GLOSS BLACK
5438240070
Not Available
15
SCREW
7517281
$13,64 Unit Price incl. VAT
16
BUMPER GUARD BRACKET; GLOSS BLACK
5438181070
Not Available
17
FRONT BUMPER WELDMENT; BLACK ENGINE
1016310521
Not Available
18
HEX FLANGE NUT; 10 MM X 1.5 MM
7547313
$2,09 Unit Price incl. VAT
19
SCREW
7517685
$3,14 Unit Price incl. VAT
20
SCREW #14 X 1 HI/LO
7518158
$9,44 Unit Price incl. VAT
21
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT

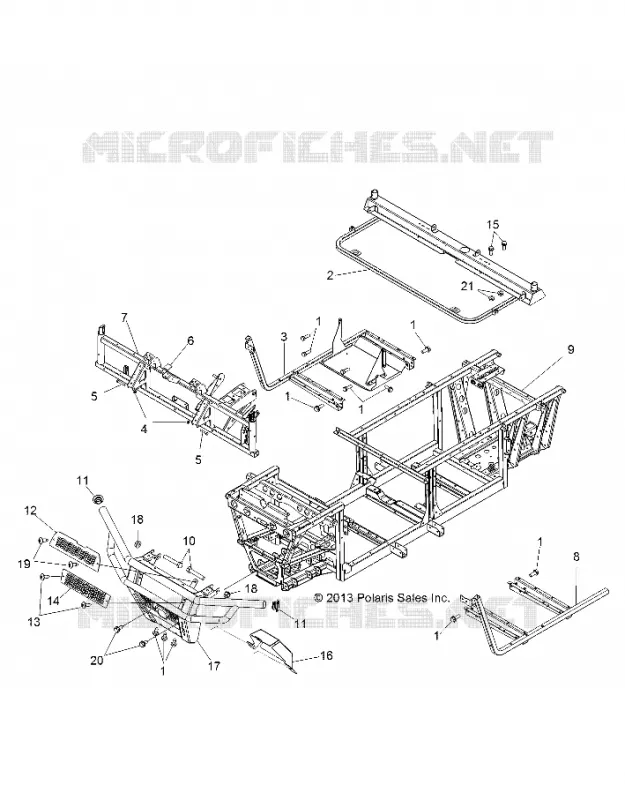

Find the detailed CHASSIS, FRAME AND FRONT BUMPER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
