DRIVE TRAIN, MAIN GEARCASE INTERNAL for POLARIS RANGER 800 - R14TH76AA/AC/EAS/AAC/ACC/EASC from 2014

DRIVE TRAIN, MAIN GEARCASE

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, MAIN GEARCASE INTERNAL

1

MAIN GEARCASE ASSEMBLY

1332961

9999999

Not Available

2

SCREW; HH; 5/16-24X1.5

3234267

$13,64 Unit Price incl. VAT

3

CARRIER SUBASSEMBLY; 1.25 IN

3234473

9999999

Not Available

4

GEAR SUBASSEMBLY; 36 TOOTH; SIDE

3234363

$435,74 Unit Price incl. VAT

5

DOWEL PIN; 10 X 45

3234238

$25,19 Unit Price incl. VAT

6

GEAR SUBASSEMBLY

3234469

$136,49 Unit Price incl. VAT

7

GEAR; 36 TOOTH DISCONNECT SUBASM; SIDE

3234362

$561,74 Unit Price incl. VAT

8

CARRIER SUBASSEMBLY; 1.25 IN

3234472

9999999

Not Available

9

WASHER FENDER.256 X 1.00 X.047

3234268

$13,64 Unit Price incl. VAT

10

FORK; PIVOT SHIFT REAR DIFF

3234285

$120,74 Unit Price incl. VAT

11

ENGAGEMENT DOG

3234928

$136,49 Unit Price incl. VAT

12

CHAIN PITCHES; 3/8 X 1.25 X 86

3234442

$640,49 Unit Price incl. VAT

13

SCREW-TORX TRUSS HD

3234086

$10,49 Unit Price incl. VAT

14

TORISON SPRING

3233431

$47,24 Unit Price incl. VAT

15

CHAIN TENSIONER CAM

3233434

$26,24 Unit Price incl. VAT

16

CHAIN TENSIONER SHOE

3233433

$62,99 Unit Price incl. VAT

17

TORSION RETURN SPRING

3234276

$16,79 Unit Price incl. VAT

18

DOWEL PIN

3233432

$13,64 Unit Price incl. VAT

19

BEARING

3233018

$47,24 Unit Price incl. VAT

20

SNAP RING

3233106

$10,49 Unit Price incl. VAT

21

SPROCKET; 19 TOOTH; 1.25 IN

3234441

$257,24 Unit Price incl. VAT

22

RING-RETAINING

3233699

$13,64 Unit Price incl. VAT

23

SCREW

3233749

$10,49 Unit Price incl. VAT

24

OIL DEFLECTOR

3234915

9999999

Not Available

25

GEAR OUTPUT; 91 TOOTH

3234953

$388,49 Unit Price incl. VAT

26

COVER-CENTER DRIVE BEARING

3234063

$62,99 Unit Price incl. VAT

27

RETAINING RING

3233364

$12,59 Unit Price incl. VAT

28

SHIM; 1.700 X 1.385

3234271

$47,24 Unit Price incl. VAT

29

BALL BEARNING

3234065

$80,84 Unit Price incl. VAT

30

PINION; 13T CENTER DRIVE

3234947

9999999

Not Available

31

RETAINING RING

3234090

$19,94 Unit Price incl. VAT

32

CUP WASHER

3234091

$17,84 Unit Price incl. VAT

33

COMPRESSION SPRING

3234078

$47,24 Unit Price incl. VAT

34

SHIFT FORK

3234077

$335,99 Unit Price incl. VAT

35

COMPRESSION SPRING

3234089

$52,49 Unit Price incl. VAT

36

SHIFT COLLAR

3234073

$57,74 Unit Price incl. VAT

37

RAIL-SHIFT SHAFT

3234079

3235542

$52,49 Unit Price incl. VAT

38

DRUM; SHIFT

3235046

9999999

Not Available

39

RETAINING RING

3234067

$14,69 Unit Price incl. VAT

40

WASHER

3233176

$17,84 Unit Price incl. VAT

41

GEAR; 44 TOOTH

3235368

$262,49 Unit Price incl. VAT

42

BEARING; NEEDLE

3233009

$68,24 Unit Price incl. VAT

43

WASHER

3233855

$19,94 Unit Price incl. VAT

44

RING RETAINING BSCEXTERNAL0.84

3234336

$10,49 Unit Price incl. VAT

45

ENGAGEMENT DOG 6 FACE

3234258

$178,49 Unit Price incl. VAT

46

RETAINING RING

3233306

$9,44 Unit Price incl. VAT

47

THRUST WASHER; 1.300 X .995 X .065

3234248

$17,84 Unit Price incl. VAT

48

SPROCKET; 6-FACE; 38 TOOTH

3234290

$283,49 Unit Price incl. VAT

49

REVERSE SHAFT; 26 TOOTH

3234948

$257,24 Unit Price incl. VAT

50

BEARING; NEEDLE

3233103

$54,59 Unit Price incl. VAT

51

GEAR 33T

3235363

9999999

Not Available

52

BEARING; BALL; 17 X 40 X 12

3234274

$47,24 Unit Price incl. VAT

53

CHAIN; .25 P X .40 W X 50 L

3234264

$188,99 Unit Price incl. VAT

54

INPUT SHAFT; 35 TOOTH

3235367

9999999

Not Available

55

BEARING

3233019

$54,59 Unit Price incl. VAT

56

DOG-ENGAGEMENT LOW (353179)

3235364

$136,49 Unit Price incl. VAT

57

BALL BEARING; 50 X 80 X 10

3234275

$47,24 Unit Price incl. VAT

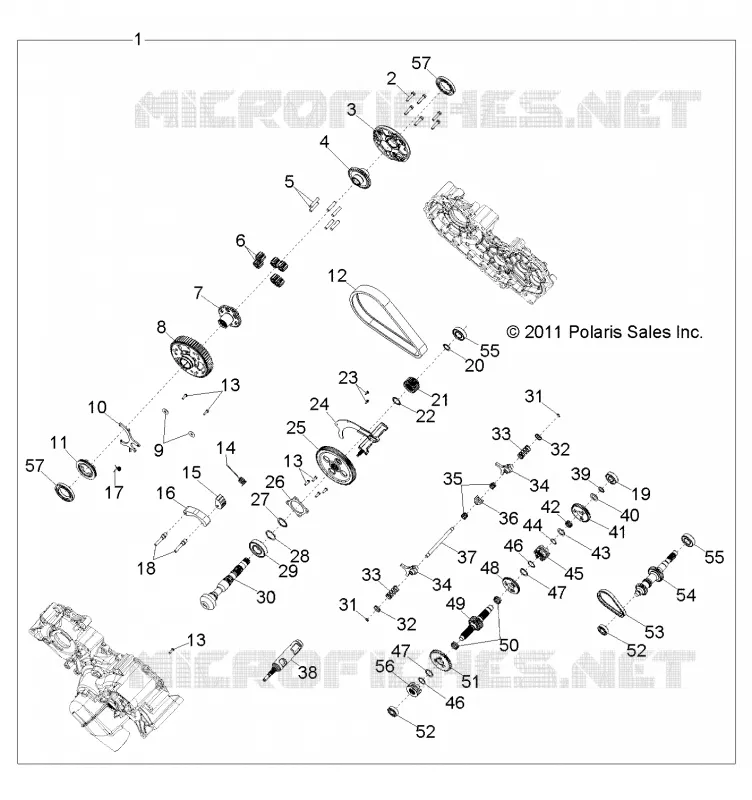

Find the detailed DRIVE TRAIN, MAIN GEARCASE INTERNAL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
