1
Engine displacement
400
2
Year
1994
3
Trim
SWEDISH 400L 6X6 - S948740
4
Parts Catalog

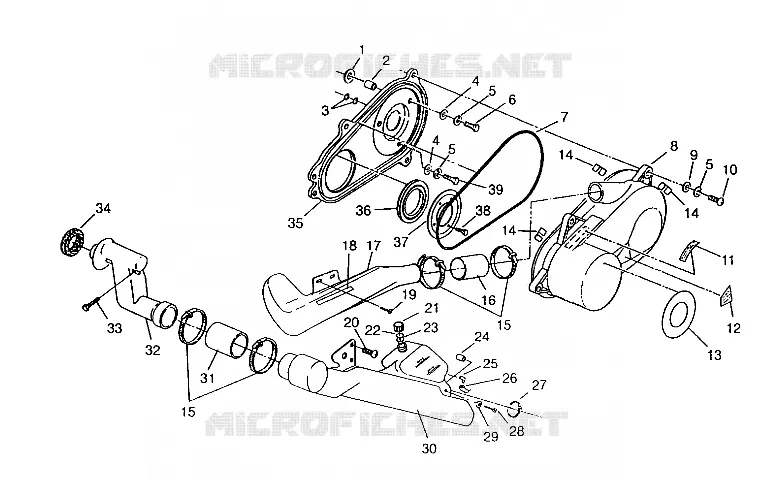

CLUTCH COVER ASSEMBLY 6X6 400L, SWEDISH S948740 AND NORWEGIAN N948740 (4926812681033A)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH ASSEMBLY 6X6 400L, SWEDISH S948740 AND NORWEGIAN N948740 (4926812681032A)
by
REAR BRAKE 6X6 400L, SWEDISH S948740 AND NORWEGIAN N948740 (4926812681034A)
CLUTCH COVER ASSEMBLY 6X6 400L, SWEDISH S948740 AND NORWEGIAN N948740 (4926812681033A)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
1
2
3
4
4
5
5
5
6
7
8
9
10
11
12
13
14
14
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
1
2
3
4
5
6
7
8
9
9
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
O RING
5410565
9999999
Not Available
2
SPACER
5333062
9999999
Not Available
3
COVER CASE SEAL
5410489
9999999
Not Available
4
WASHER
7555748
$9,44 Unit Price incl. VAT
5
WASHER
7552605
9999999
Not Available
6
BOLT
7512277
$9,44 Unit Price incl. VAT
7
CLUTCH COVER SEAL OUTER
5521301
5526452
$58,58 Unit Price incl. VAT
8
COVER CLUTCHFRONTRTP
5430771
9999999
Not Available
9
WASHER
7555776
7558301
$2,09 Unit Price incl. VAT
10
BOLT
7512281
9999999
Not Available
11
DECAL(CPSC) CLUTCH COVER Substituted by 7074946
7072787
Not Available
12
DECAL(CPSC) ENG/CLUTCH MOD.
7072789
9999999
Not Available
13
DECAL PVT
7072386
9999999
Not Available
14
CLUTCH COVER CLIP
7670051
9999999
Not Available
15
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
16
BOOT CLUTCH INTAKE(400)
5410883
9999999
Not Available
17
DUCT AIR OUTLET CLUTCH Substituted by 5432615
5431671
Not Available
18
DECAL #DEMAND-DRIVE#
7073454
Not Available
19
SCREW
7512252
9999999
Not Available
20
SCREW(10)
7512018
$6,29 Unit Price incl. VAT
21
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
22
GASKET
5810279
$4,19 Unit Price incl. VAT
23
PLUG CAP
5431895
5433774
$10,49 Unit Price incl. VAT
24
SPACER
5020577
9999999
Not Available
25
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
26
FUEL LINE; 1/4 ID
84500031525
Not Available
27
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
28
SCREW
7512025
$9,44 Unit Price incl. VAT
29
WASHER FLAT
7555783
$7,34 Unit Price incl. VAT
30
DOWNTUBE DUAL INLET
5431185
9999999
Not Available
31
INTAKE BOOT
5410509
9999999
Not Available
32
DUCT INLET TOP
5431261
9999999
Not Available
33
SCREW
7512017
9999999
Not Available
34
SEAL INTAKE
5810480
Not Available
35
COVER CLUTCH INNER
5431716
9999999
Not Available
36
SEAL COVER CASE
5410575
9999999
Not Available
37
BRKT RETAINER SEAL
5222446067
Not Available
38
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
39
BOLT
7512278
9999999
Not Available

Find the detailed CLUTCH COVER ASSEMBLY 6X6 400L, SWEDISH S948740 AND NORWEGIAN N948740 (4926812681033A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
