1
Engine displacement
400
2
Year
1994
3
Trim
SWEDISH 400L 6X6 - S948740
4
Parts Catalog

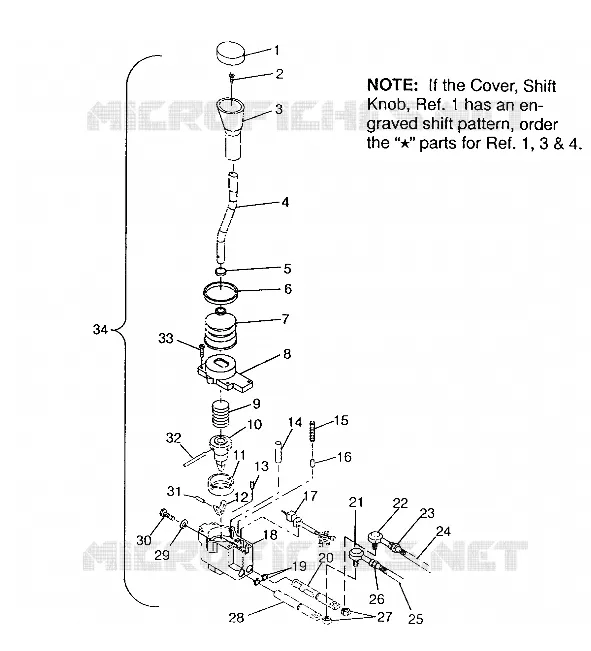

SHIFT LINKAGE ASSEMBLY 6X6 400L, SWEDISH S948740 AND NORWEGIAN N948740 (4926812681045A)
5
Parts Diagram
Parts Catalog
GEARCASE ASSEMBLY 6X6 400L, NORWEGIAN N948740 (4926812681043A)
by
TOOL KIT ASSEMBLY 6X6 400L, SWEDISH S948740 AND NORWEGIAN N948740 (4926812681046A)
SHIFT LINKAGE ASSEMBLY 6X6 400L, SWEDISH S948740 AND NORWEGIAN N948740 (4926812681045A)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
-
1
2
3
3
3
3
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
2
3
4
5
6
1
2
3
4
5
6
-
COVER SHIFT KNOB
3233136
9999999
Not Available
1
COVER SHIFT KNOB
3233078
9999999
Not Available
2
SCREW
3233079
Not Available
3
KNOB; SHIFT
3233135
9999999
Not Available
3
KNOB SHIFT
3233077
9999999
Not Available
4
ROD GEAR SELECTOR Substituted by 3233203
3233086
Not Available
4
ROD GEAR SELECTOR *
3233134
Not Available
5
WIRE STRAP
3233131
9999999
Not Available
6
CLAMP
3233132
9999999
Not Available
7
BOOT GEAR SELECTOR
3233133
9999999
Not Available
8
COVER GEAR SELECTOR
3233081
9999999
Not Available
9
SPRING HOLDING
3233065
9999999
Not Available
10
STRIKER Substituted by 3233197
3233061
Not Available
11
CUP; BEARING
3233063
9999999
Not Available
12
INTERLOCK BUTTERFLY
3233084
9999999
Not Available
13
SPRING CENTERING
3233083
9999999
Not Available
14
PIN STOP
3233062
9999999
Not Available
15
DETENT SPRING
3233069
9999999
Not Available
16
DETENT BULLET
3233060
9999999
Not Available
17
SWITCH GEAR SELECTOR
3233087
9999999
Not Available
18
GEAR SELECTOR BODY
3233082
9999999
Not Available
19
O-RING
3233076
$11,54 Unit Price incl. VAT
20
SLIDE HIGH/REV.
3233088
Not Available
21
ROD END; RH
7060142
9999999
Not Available
22
ROD END; LH
7060141
7061013
$120,74 Unit Price incl. VAT
23
BOLT
7546702
9999999
Not Available
24
ROD LOW-RA.SHIFTLINK
5020730
9999999
Not Available
25
SHIFTLINK ROD
5020729
9999999
Not Available
26
NUT
7546701
9999999
Not Available
27
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT
28
SLIDE LOW
3233089
9999999
Not Available
29
WASHER
7552605
9999999
Not Available
30
BOLT
7512269
9999999
Not Available
31
PIN INTERLOCK
3233070
9999999
Not Available
32
PIN GROOVE
3233067
9999999
Not Available
33
SCREW
3233085
9999999
Not Available
34
SELECTOR ASM;GEAR
1341126
9999999
Not Available

Find the detailed SHIFT LINKAGE ASSEMBLY 6X6 400L, SWEDISH S948740 AND NORWEGIAN N948740 (4926812681045A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
