1
Engine displacement
600
2
Year
1997
3
Trim
600 XC - 0971776
4
Parts Catalog
OIL TANK/AIR BOX
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM
by
FOX SHOCK
OIL TANK/AIR BOX
1
2
3
4
5
5
6
7
7
8
9
10
11
12
13
13
14
15
16
16
16
16
17
17
18
18
18
19
20
21
21
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
2
3
4
5
5
6
7
7
8
9
10
11
12
13
13
14
15
16
16
16
16
17
17
18
18
18
19
20
21
21
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
OIL LEVEL SENSOR WITH CONNECTING ROD
4040040
$141,74 Unit Price incl. VAT
2
OIL TANK CAP
5430779
$31,49 Unit Price incl. VAT
3
OIL CAP GASKET
5810141
$4,19 Unit Price incl. VAT
4
BOLT
7512103
$6,29 Unit Price incl. VAT
5
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
6
TANK OIL
5430997
9999999
Not Available
7
FUEL LINE; 1/4 ID
84500031525
Not Available
8
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
9
HOSE CLAMP
7080236
$3,14 Unit Price incl. VAT
10
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
11
FITTING OUTLET
7052042
$13,64 Unit Price incl. VAT
12
BRKT OILTANK COINED
5241334
9999999
Not Available
13
RIVET
7661637
$2,09 Unit Price incl. VAT
14
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
15
FITTING 90 DEG 1/8
7052095
$9,44 Unit Price incl. VAT
16
SPRING PROTECT.VENTHOSE
7041605
Not Available
16
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
17
SCREW
7512279
$1,56 Unit Price incl. VAT
18
WASHER
7552604
$3,14 Unit Price incl. VAT
19
CLAMP
7080583
9999999
Not Available
20
BRKT AIR SILENCER
5240823067
Not Available
21
WELL NUT
7541923
$10,49 Unit Price incl. VAT
22
DECAL SHUT-OFF VALVE [No Longer Available]
7072151
Not Available
23
PLATE AIR SILENCER
5850102
Not Available
24
DECAL COOL.SYSTEM [No Longer Available]
7075359
Not Available
25
SCREW(10)
7512222
9999999
Not Available
26
CLAMP WIRE ROUTING
7080409
9999999
Not Available
27
FOAMINTAKETOP
5810457
9999999
Not Available
28
FOAM INTAKE
5810468
9999999
Not Available
29
DECAL CAUTION
7075351
9999999
Not Available
30
COVER SILENCER DRILLED
5431958
Not Available
31
Decal Adjustable Driven Clutch
7073820
Not Available
32
DECAL; GREASING
7073426
9999999
Not Available
33
BAFFLE ASM.
1253110
Not Available
34
AIR BOX CLIP
7670055
$11,54 Unit Price incl. VAT
35
BRKT AIR BOX
5241080067
Not Available
36
SILENCER INTAKE DRILLED
5431918
Not Available
37
BOOT
5410271
9999999
Not Available

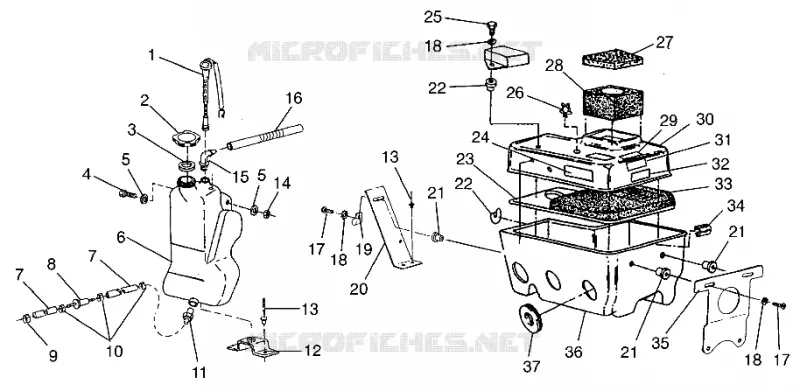

Find the detailed OIL TANK/AIR BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
