1
Engine displacement
600
2
Year
1997
3
Trim
600 XC - 0971776
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
RAIL MOUNTING (SUSPENSION) 600 XC 0971776 AND EUROPEAN 600 XC E971776 (4937933793B010)
by
EXHAUST SYSTEM
ENGINE MOUNTING
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
14
15
16
16
16
16
17
18
19
19
20
20
21
21
22
23
24
25
26
27
27
27
27
27
27
27
27
28
29
29
30
30
30
30
30
31
31
31
31
32
32
32
33
33
33
33
34
35
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
14
15
16
16
16
16
17
18
19
19
20
20
21
21
22
23
24
25
26
27
27
27
27
27
27
27
27
28
29
29
30
30
30
30
30
31
31
31
31
32
32
32
33
33
33
33
34
35
1
CABLE TIE
7080527
7080003
$2,09 Unit Price incl. VAT
2
BOLT
7512565
9999999
Not Available
3
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
4
WASHER CLUTCH RETAINER
5010287
$18,89 Unit Price incl. VAT
5
O-RING
5410507
$2,09 Unit Price incl. VAT
6
SPACER
5020513
$60,89 Unit Price incl. VAT
7
CONDUIT CONVOLUTED
4010051
9999999
Not Available
8
SPARK PLUG
3070165
$7,34 Unit Price incl. VAT
9
ENG.(S.B.)EC58PL-08 [No Longer Available] (EC58PL08)
3085354
Not Available
10
WELL NUT
7541923
$10,49 Unit Price incl. VAT
11
WASHER; FLAT
7555843
7558302
$3,14 Unit Price incl. VAT
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
SPACER (MTR.MT.)
5332778
9999999
Not Available
14
MOUNT ENGINE
5410390
9999999
Not Available
15
NUT FLEXLOCK
7542503
9999999
Not Available
16
PLATE LH MTR.MT.
5241038
Not Available
16
PLATE RH MTR.MT.
5241039
Not Available
17
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
18
BOLT
7512575
9999999
Not Available
19
ENGINE MOUNT
3110062
9999999
Not Available
20
FLEX LOCK; NUT
7547008
$11,54 Unit Price incl. VAT
21
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
22
SCREW
7512530
$10,49 Unit Price incl. VAT
23
WASHER
7555740
$3,14 Unit Price incl. VAT
24
SCREW(10)
7512222
9999999
Not Available
25
WASHER
7552604
$3,14 Unit Price incl. VAT
26
HANDLE RECOIL
5431499
9999999
Not Available
27
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
28
CABLETHROTTLEW/OIL
7080565
9999999
Not Available
29
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
30
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
31
FUEL LINE; 600 CM
8450040600
Not Available
32
VALVE CHECK
7051011
9999999
Not Available
33
FITTING TEE
7052048
$7,34 Unit Price incl. VAT
34
FUEL FILTER
2530008
9999999
Not Available
35
FUEL SHUT OFF VALVE
7052039
9999999
Not Available

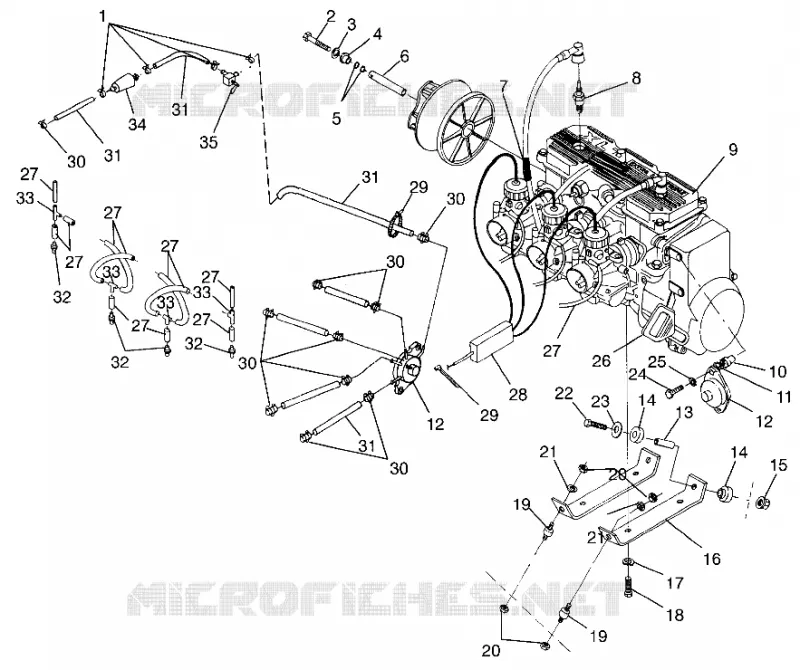

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
