1
Engine displacement
600
2
Year
1997
3
Trim
600 XC - 0971776
4
Parts Catalog
PISTON CRANKSHAFT
5
Parts Diagram
Parts Catalog
CYLINDER
by
MAGNETO
PISTON CRANKSHAFT
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
5
5
5
5
6
6
6
7
7
7
8
8
8
9
10
10
11
12
12
13
14
14
14
14
15
15
15
15
16
17
18
19
19
20
21
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
5
5
5
5
6
6
6
7
7
7
8
8
8
9
10
10
11
12
12
13
14
14
14
14
15
15
15
15
16
17
18
19
19
20
21
1
PISTON PIN CLIP
3084456
9999999
Not Available
2
RING PISTON .020 O/S (2)
3083359
9999999
Not Available
2
RING PISTON .10 O/S
3083358
9999999
Not Available
2
RING PISTON
3083349
9999999
Not Available
3
SET PISTON .010/.25MM O/S
3085433
9999999
Not Available
3
PISTON (.50MM O/S) Substituted by 3085875 (0.50m/.020# O/S)
3085434
Not Available
3
SET PISTON STANDARD
3085432
9999999
Not Available
4
PISTON PIN
3085021
9999999
Not Available
5
CRANKPIN SPACER
3083277
9999999
Not Available
6
CONNECTING ROD
3085440
9999999
Not Available
7
SMALL END BEARING
3080998
9999999
Not Available
8
BEARING-LARGE END
3083255
9999999
Not Available
9
PIN-CRANK 2
3083254
9999999
Not Available
10
PIN CRANK #1
3084447
9999999
Not Available
11
CRANKSHAFT#3 PTO SIDE
3085439
9999999
Not Available
12
BALL BEARING
3084586
3515063
$60,89 Unit Price incl. VAT
13
CRANKSHAFT PTO SIDE
3084444
9999999
Not Available
14
CRANKSHAFT MAG SIDE (Mag Side)
3084443
Not Available
14
CRANKSHAFT-CENTER
3085438
9999999
Not Available
15
CRANKSHAFT-CENTER
3085437
9999999
Not Available
15
CRANKSHAFT 1
3084441
9999999
Not Available
16
KEY; WOODRUFF
3080130
3081543
$26,24 Unit Price incl. VAT
17
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
18
WASHER
3084457
9999999
Not Available
19
BALL BEARING
3084681
3515061
$141,74 Unit Price incl. VAT
20
BALL BEARING
3084599
9999999
Not Available
21
SPACER CRANKSHAFT
3080447
9999999
Not Available

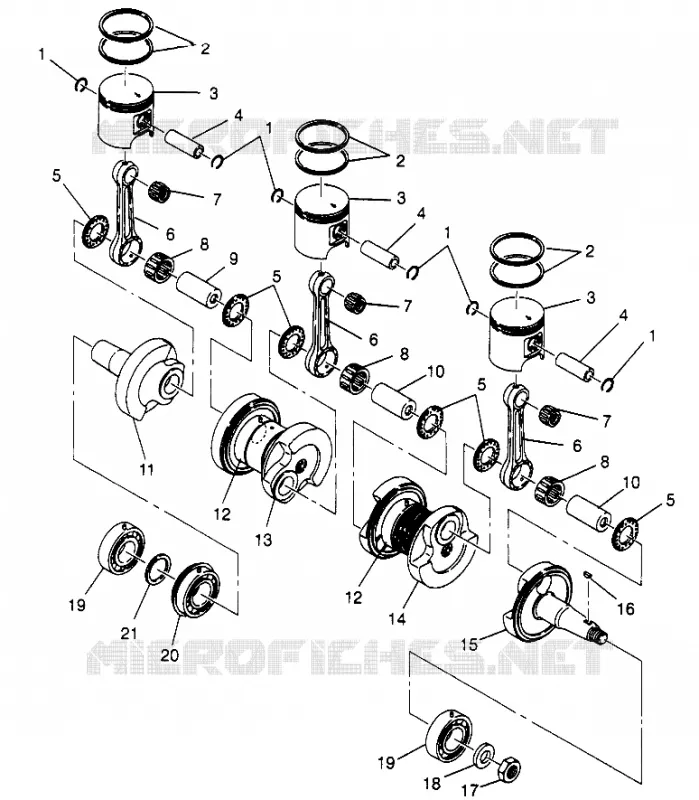

Find the detailed PISTON CRANKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
