1
Engine displacement
500
2
Year
2010
3
Trim
SCRAMBLER 500 4X4 - A10NG50AA
4
Parts Catalog
ENGINE, MOUNTING
5
Parts Diagram
Parts Catalog
CABIN
by
CONTROLS THROTTLE
ENGINE, MOUNTING
1
2
2
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
1
BRKT-ENGINE MOUNTUPPER
5253242
9999999
Not Available
2
NUT
7547108
$9,44 Unit Price incl. VAT
3
CABLE GUIDE
3084696
9999999
Not Available
4
THROTTLE CABLE; 1168 X 87
7081550
9999999
Not Available
5
NUT-3/8-16 FLG LOCK-Y
7547089
9999999
Not Available
6
EXHAUST GASKET ASSEMBLY
3085075
9999999
Not Available
7
MANIFOLD WELD HIGH TEMP POWER PAINT BLK
1261391489
Not Available
8
WASHER SPRING
3080051
9999999
Not Available
9
NUT
3087199
9999999
Not Available
10
BOLT-3/8-24X23/4 HEX FLANGE 65
7518415
9999999
Not Available
11
BRKT-ENGINE MOUNTFRT
5253241
9999999
Not Available
12
BRKT-TORQUE STOP PLTD
5245043
9999999
Not Available
13
ISOLATOR-3/8-24M; 2/8-16M; 60DUR
3022072
9999999
Not Available
14
WELD-ENGINE MOUNTREARBLK
1017066329
Not Available
15
FLAT WASHER
7555815
$7,34 Unit Price incl. VAT
16
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
17
BOLT
7512315
$9,44 Unit Price incl. VAT
18
ISOLATOR-3/8-24M/M 60DURO
3022071
3024012
$83,99 Unit Price incl. VAT
19
WASHER
7555823
$7,34 Unit Price incl. VAT
20
VALVE CHECK
7051011
9999999
Not Available
21
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available

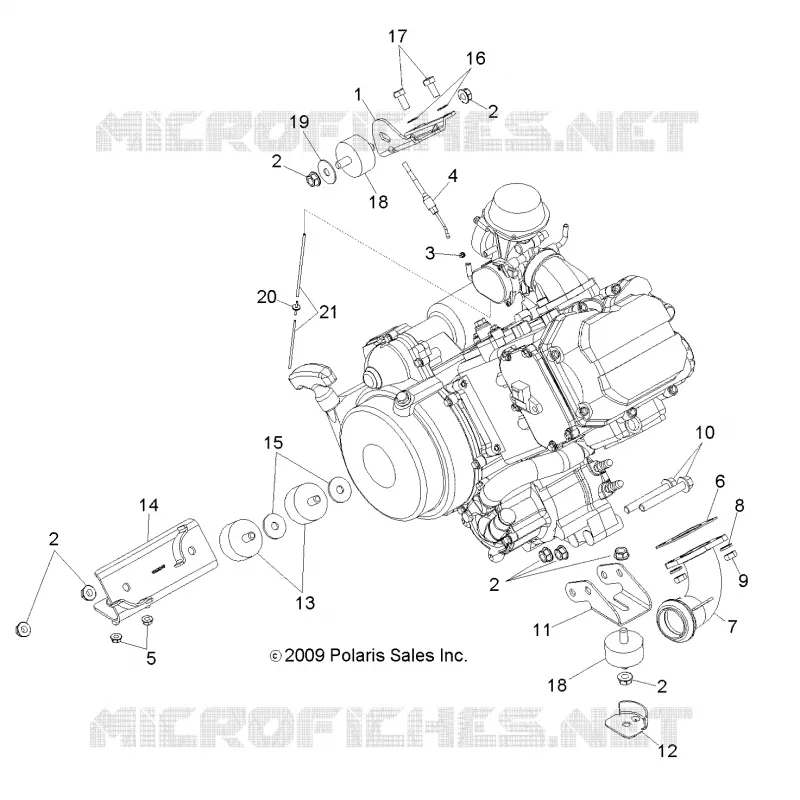

Find the detailed ENGINE, MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
