DRIVE TRAIN, FRONT GEARCASE (BUILT 11/02/09 TO 3/08/10)
5
Parts Diagram
Parts Catalog
FUEL SYSTEM
by
FLYWHEEL COVER
DRIVE TRAIN, FRONT GEARCASE (BUILT 11/02/09 TO 3/08/10)
-
1
2
3
4
5
5
6
6
7
8
9
10
10
11
11
11
11
11
12
13
14
15
16
16
16
17
18
19
20
21
22
23
1
2
3
4
4
5
6
7
7
8
8
8
8
9
10
11
12
13
13
14
-
ASM-GEARCASE AWD
1332578
9999999
Not Available
1
ASM-COVER OUTPUT
3234402
3236663
$955,49 Unit Price incl. VAT
2
ASM-HUB RACE/OUTPUT
3234403
9999999
Not Available
3
ASM-CLUTCH
3234404
9999999
Not Available
4
ASM-PLATE;THRUST
3234389
9999999
Not Available
5
ROLL CAGE ASSEMBLY; AL
3235263
9999999
Not Available
5
ROLL CAGE ASSEMBLY
3234466
9999999
Not Available
6
GEARCASE ASSEMBLY
3234411
9999999
Not Available
7
MAGNETIC DRAIN PLUG ASSEMBLY
3234412
$83,99 Unit Price incl. VAT
8
INPUT COVER ASSEMBLY
3234463
3235337
$241,49 Unit Price incl. VAT
9
PINION GEAR ASSEMBLY
3234415
9999999
Not Available
10
BOLT KIT
3234405
$52,49 Unit Price incl. VAT
11
REPAIR SEAL KIT
3234406
$136,49 Unit Price incl. VAT
12
ROLLER KIT
3234393
9999999
Not Available
13
FRONT GEARCASE INTERNAL CAGE
3234464
9999999
Not Available
14
HUB-OUTPUT RH
3234465
9999999
Not Available
15
SET-SCREW #10-14 W/NYLOK
3234408
$52,49 Unit Price incl. VAT
16
BEARING
3234390
$60,89 Unit Price incl. VAT
17
CLUTCH-HSG/RING GEAR;42T 7.624
3234409
9999999
Not Available
18
PLUG-OIL FILL3/4-16 HOLLOW HD
3234414
3233942
$62,99 Unit Price incl. VAT
19
COVER-INPUT MACHINED
3234418
3235337
$241,49 Unit Price incl. VAT
20
BUSHING-1X1.316X1
3234436
9999999
Not Available
21
RING GEAR SPACER
3234437
$36,74 Unit Price incl. VAT
22
ARMATURE PLATE
3234407
$209,99 Unit Price incl. VAT
23
RING-RETAINING INTRNL 5000-218
3234416
$19,94 Unit Price incl. VAT

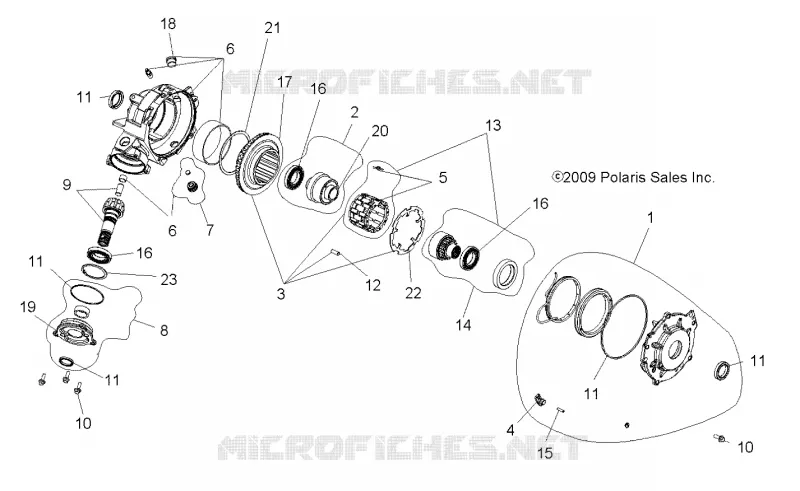

Find the detailed DRIVE TRAIN, FRONT GEARCASE (BUILT 11/02/09 TO 3/08/10) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
