1
Engine displacement
autre
2
Year
1994
3
Trim
SPORT - 0940443
4
Parts Catalog
STEERING
5
Parts Diagram
Parts Catalog
NOSEPAN ASSEMBLY SPORT 0940443 AND SPORT SKS 0940243 (4925052505005A)
by
STEERING ASSEMBLY SPORT 0940443 AND SPORT SKS 0940243 (4925052505014A)
STEERING
1
1
2
3
4
4
4
4
4
4
4
4
4
5
6
7
8
9
10
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
1
2
3
4
4
4
4
4
4
4
4
4
5
6
7
8
9
10
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
GRIP H BAR BLACK
5410272067
Not Available
2
RETAINING PIN
7661624
$23,09 Unit Price incl. VAT
3
RETAINING RING
7710503
$7,34 Unit Price incl. VAT
4
THROTTLE LEVER
5430652
9999999
Not Available
4
LEVER ASMHTR.STD 34MM
2010142
9999999
Not Available
4
THROTTLE CONTROL ASM.
2010099
9990000
Not Available
5
THROTTLE/BRAKE; BLOCK
5431592
$73,49 Unit Price incl. VAT
6
ADAPTER BLOCK
5430604
$26,24 Unit Price incl. VAT
7
BOLT
7512254
9999999
Not Available
8
COVER H BAR (SPORT 94)
2690079
9999999
Not Available
9
PAD HANDLEBAR
5810448
Not Available
10
HANDLEBAR BLOCK; MEDIUM GLOSS BLACK
5630187067
Not Available
11
HANDLEBAR BLK 1#RAISED
5224514067
Not Available
12
DIMMER SWITCH
4110107
9999999
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
CAPLUG
7080467
9999999
Not Available
15
HEATER GRIP ASM.
2460313
9999999
Not Available
16
NUT
7542124
7542122
$2,09 Unit Price incl. VAT
17
BOLT ;
7512239
7517377
$9,44 Unit Price incl. VAT
18
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
19
POST STEERING Substituted by 1823145-067
1823145
Not Available
20
SCREW
7511848
$7,34 Unit Price incl. VAT
21
SCREW
7511858
$7,34 Unit Price incl. VAT
22
PLATE BLK WIREHOLDER
5240256067
Not Available
23
RETAINING RING
7710401
$7,34 Unit Price incl. VAT
24
WASHER
7555730
$7,34 Unit Price incl. VAT
25
SCREW SET
7512465
$7,34 Unit Price incl. VAT
26
WASHER(10)
7555709
Not Available
27
SWITCH AUXILIARY SHUT-OFF
4110106
9999999
Not Available

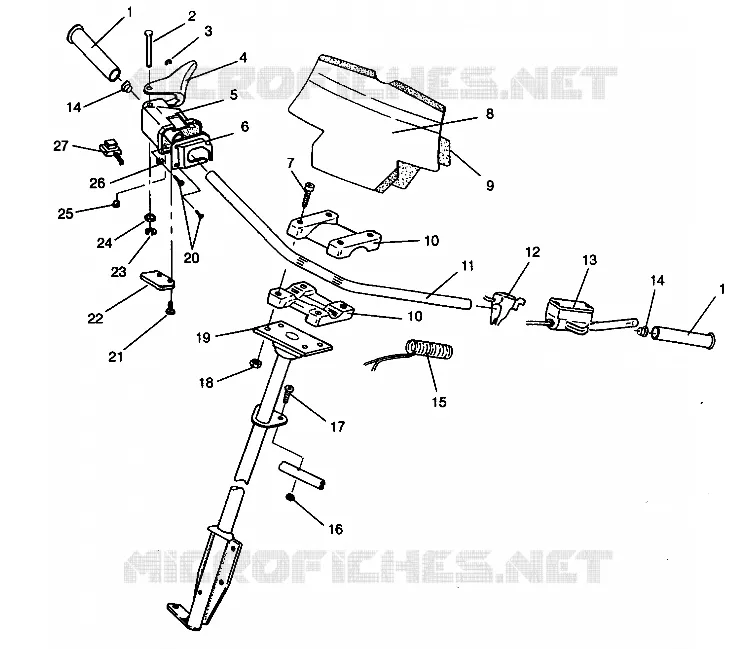

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
