1
Engine displacement
autre
2
Year
1994
3
Trim
SPORT - 0940443
4
Parts Catalog
TUNNEL ASSEMBLY SPORT 0940443 (4925052505001A)
5
Parts Diagram
Parts Catalog
by
NOSEPAN ASSEMBLY SPORT 0940443 AND SPORT SKS 0940243 (4925052505006A)
TUNNEL ASSEMBLY SPORT 0940443 (4925052505001A)
1
2
3
4
5
6
7
8
9
10
11
12
13
13
13
13
14
14
15
15
15
15
16
17
18
18
18
18
18
18
19
19
19
19
21
22
23
24
25
26
27
28
29
30
32
33
1
2
3
4
5
6
7
8
9
10
11
12
13
13
13
13
14
14
15
15
15
15
16
17
18
18
18
18
18
18
19
19
19
19
21
22
23
24
25
26
27
28
29
30
32
33
1
DECAL TRACK/SEAT(CPSC) (Black)
7074254
Not Available
2
FLAP SNOWSILVER
5410394
5410394-1038
$194,24 Unit Price incl. VAT
3
RIVET
7621418
$2,09 Unit Price incl. VAT
4
PANEL TUNNEL BACK Substituted by 5220478-067
5220478
Not Available
5
DECAL R.BUMPER(94SPORT/SKS) [No Longer Available]
7073968
Not Available
6
BUMPERREARBLK.
5224334067
Not Available
7
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
8
SCREW
7511863
9999999
Not Available
9
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
10
CAP BUMPER BLK.
5430930070
Not Available
11
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
12
BOLT
7512240
9999999
Not Available
13
RIVET
7661828
9999999
Not Available
14
RIVET SEMI-TUBE (10)
7661812
9999999
Not Available
15
BRKT RH R.SUSP.
1011858067
Not Available
15
BRKT LH R.SUSP
1011857067
Not Available
16
DECAL TOP TUNNEL STRIP
7073978
Not Available
17
EXTRUSION CLUTCHGUARD
5521238
9999999
Not Available
18
RIVET
7661637
$2,09 Unit Price incl. VAT
19
FOOTREST ASM LH
1011890
Not Available
19
FOOTREST ASM RH
1011891
9999999
Not Available
21
SNAP-MALE
7080227
9999999
Not Available
22
BRKT F.SUSP. BLK.
5211323067
Not Available
23
BRACE;TUNNEL REINF.
5240265
5240242
Not Available
24
BULKHEAD (94 SPORT)
1011976
9999999
Not Available
25
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
26
PLUG HOLE
7080398
$10,49 Unit Price incl. VAT
27
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
28
SCREW
7512307
$7,34 Unit Price incl. VAT
29
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
30
RIVET
7621452
9999999
Not Available
32
BRKT; TOOL BOX
5220973
9999999
Not Available
33
TUNNEL (SPORT 94) (Incl. 4 15 22 23)
1011963
Not Available

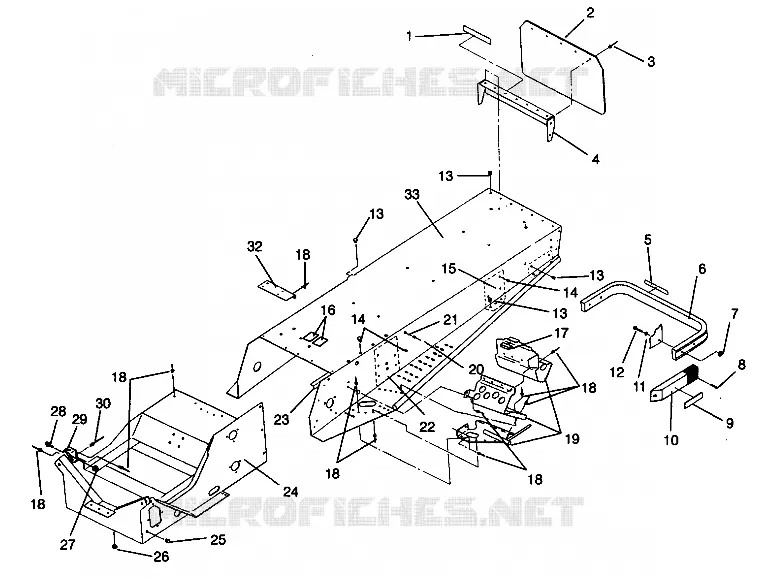

Find the detailed TUNNEL ASSEMBLY SPORT 0940443 (4925052505001A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
