1
Engine displacement
autre
2
Year
1998
3
Trim
LITE DELUXE - 0983431
4
Parts Catalog
STEERING
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI
by
CHAINCASE
STEERING
1
SWITCH AUXILIARY SHUT-OFF
4110106
9999999
Not Available
2
THROTTLE/BRAKE; BLOCK
5431592
$73,49 Unit Price incl. VAT
3
RETAINING PIN
7661624
$23,09 Unit Price incl. VAT
4
RETAINING RING
7710503
$7,34 Unit Price incl. VAT
5
LEVER 30 MM W/HTR.
2010147
9999999
Not Available
5
THROTTLE LEVER
5430601
9999999
Not Available
6
ADAPTER BLOCK
5430604
$26,24 Unit Price incl. VAT
7
HANDLEBARADJBLK.
1843036067
Not Available
8
CAPLUG
7080467
9999999
Not Available
9
SCREW
7517238
$9,44 Unit Price incl. VAT
10
COVER H#BAR W/SPEEDO (W/Speedometer)
5431232070
Not Available
11
SCREW
7512024
$9,44 Unit Price incl. VAT
12
O RING (10)
5410591
9999999
Not Available
13
SWITCH; BRAKE LIGHT
4110105
9999999
Not Available
14
SWITCH DIMMER
4110104
9999999
Not Available
15
RIVET
7661617
$7,34 Unit Price incl. VAT
16
GRIP H BAR BLACK
5410272067
Not Available
17
CLIP-SPEED
7670044
9999999
Not Available
18
LEVER-BRAKE
5430602
9999999
Not Available
19
WASHER (10)
7555727
9999999
Not Available
20
SCREW
7511848
$7,34 Unit Price incl. VAT
21
HEATER GRIP ASM.
2460313
9999999
Not Available
22
SCREW SET
7512465
$7,34 Unit Price incl. VAT
23
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
24
BLOCK H BAR UPPER BLK.
5630382067
Not Available
25
FASTENER DART (10)
7080431
9999999
Not Available
26
BOOT STRG.POST
5431234070
Not Available
27
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
28
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
29
CLIP
7080278
9999999
Not Available
30
HOOP STRG BLK.
1011863067
Not Available
31
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
32
CLIP (10)
5222672
Not Available
33
BOLT
7515101
9999999
Not Available
34
RIVET
7661637
$2,09 Unit Price incl. VAT
35
BRKT BOLT RETAINER
5222421
9999999
Not Available
36
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
37
NUT; FLEXLOC
7542452
7542411
$6,29 Unit Price incl. VAT
38
BOLT
7512298
9999999
Not Available
39
ROD END; RIGHT
7060167
$99,74 Unit Price incl. VAT
39
ROD END; LEFT
7060166
$99,74 Unit Price incl. VAT
40
BOLT
7512404
$7,34 Unit Price incl. VAT
41
NUT LH (10)
7542424
$1,56 Unit Price incl. VAT
41
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
42
ROD; DRAG LINK
5333005
9999999
Not Available
43
ROD TIE BLK
5020910067
Not Available
44
ROD END; RIGHT
7060165
$99,74 Unit Price incl. VAT
44
END ROD; LEFT
7060164
$99,74 Unit Price incl. VAT
45
BOOT; TIE ROD
5410639
9999999
Not Available
46
RETAINER BOOT
5222283
Not Available
47
BOLT
7512572
9999999
Not Available
48
WASHER
7555817
9999999
Not Available
49
BUSHING
5630371
9999999
Not Available
50
NUT LOCK
7542403
9999999
Not Available
51
FROG LH STRG BLK(LITE)
1823141067
Not Available
52
BUSHING OPEN/CLOSE
7080399
9999999
Not Available
53
SCREW
7515434
9999999
Not Available
54
BUSHING; SPACER
5333009
9999999
Not Available
55
NUT CASTLE
7542523
9999999
Not Available
56
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
57
NUT FLEX-LOC
7542303
9999999
Not Available
58
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
59
FITTING LUB/VEN
7080561
9999999
Not Available
60
POST STRG. BLK. (Lite GT)
1823155067
Not Available
61
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
62
RINGMOUNT RECOIL BLK.
5224442067
Not Available
63
HANDLEBAR BLOCK; MEDIUM GLOSS BLACK
5630187067
Not Available
64
CLIP; STRG.BOOT
7670073
9999999
Not Available
65
WIRE HOLDER
5432261
$47,24 Unit Price incl. VAT
66
SCREW
7511858
$7,34 Unit Price incl. VAT
67
RETAINING RING
7710401
$7,34 Unit Price incl. VAT
68
WASHER
7555730
$7,34 Unit Price incl. VAT
69
SPEEDOMETER
3280112
9999999
Not Available
70
SPACER
5410592
Not Available
71
SPACER SPEEDO.MTG.
5810442
9999999
Not Available
72
PLATE MTG (SPEEDO)
5211189
9999999
Not Available
73
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
74
HAIRPIN COTTER
7660701
9999999
Not Available
75
CABLE SPEEDOMETER
3280113
Not Available

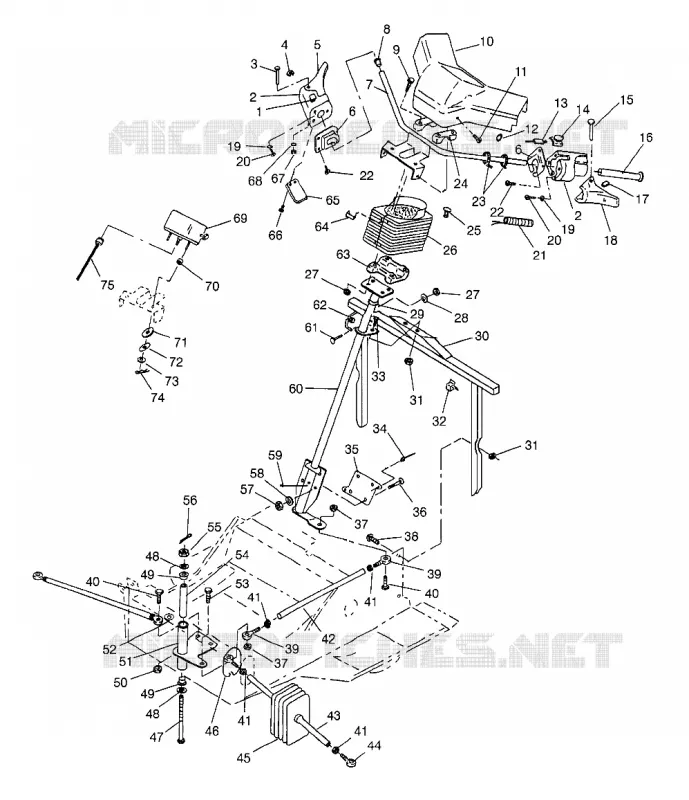

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
