DRIVE TRAIN, MAIN GEARCASE for POLARIS M1400 GAS

ASM-GEARCASE MAIN

1333390

9999999

Not Available

PLUG; M18 X 1.5

3234755

$52,49 Unit Price incl. VAT

SOCKET HEAD W/ MAG PLUG 18 MM X 1.5 MM

3234756

$57,74 Unit Price incl. VAT

SCREW; TORX PAN HD M6 X 1 X 16

3234309

$13,64 Unit Price incl. VAT

PLUG-EXPANSION 80MM X 10MM

3022301

9999999

Not Available

HEX HEAD FLANGE SCREW 8MMX1.25MMX30MM

3234898

$17,84 Unit Price incl. VAT

SCREW

3235206

$13,64 Unit Price incl. VAT

SCREW-CAP HH;M8 X 1.25 X 20

3235096

3236169

$17,84 Unit Price incl. VAT

SCREW

3235207

$19,94 Unit Price incl. VAT

SCREW 6 MM X 1.0 MM 40 MM

3235208

$20,99 Unit Price incl. VAT

SOCKET HEAD SCREW; 6 MM X 1 MM X 18 MM

3235332

$7,34 Unit Price incl. VAT

HEXFLANGE NUT; NYLON; 8 MM X 1.25 MM

3235210

$14,69 Unit Price incl. VAT

CUP WASHER

3234091

$17,84 Unit Price incl. VAT

WASHER

3235211

$19,94 Unit Price incl. VAT

WASHER

3235212

$25,19 Unit Price incl. VAT

PIN; DOWEL; 6 X 20

3234330

$13,64 Unit Price incl. VAT

SPRING-SLOTTED PIN;6MM

7043746

$15,74 Unit Price incl. VAT

SNAP RING

3233106

$10,49 Unit Price incl. VAT

RETAINING RING

3233834

$19,94 Unit Price incl. VAT

RETAINING RING

3233364

$12,59 Unit Price incl. VAT

RETAINING RING

3234090

$19,94 Unit Price incl. VAT

RETAINING RING

3234205

$20,99 Unit Price incl. VAT

RETAINING RING

3235214

$17,84 Unit Price incl. VAT

RETAINING RING

3235216

$19,94 Unit Price incl. VAT

INPUT-SHAFT BOSS L/W (140102)

3235533

9999999

Not Available

THRUST WASHER

3233378

$17,84 Unit Price incl. VAT

THRUST WASHER; .446 X .88 X .025

3234642

$19,94 Unit Price incl. VAT

NEEDLE BEARING

3233014

$74,54 Unit Price incl. VAT

BEARING

3233019

$54,59 Unit Price incl. VAT

BEARING

3233020

$80,84 Unit Price incl. VAT

BALL BEARING

3233268

$88,19 Unit Price incl. VAT

BALL BEARNING

3234065

$80,84 Unit Price incl. VAT

NEEDLE BEARING

3233384

$54,59 Unit Price incl. VAT

BALL BEARING

3235218

$101,84 Unit Price incl. VAT

PLAIN BEARING; 10 X 12 X 25

3234239

$27,29 Unit Price incl. VAT

PLAIN BEARING; 40 X 44 X 15

3234241

$27,29 Unit Price incl. VAT

BALL BEARING

3234652

$27,29 Unit Price incl. VAT

COMPRESSION SPRING

3233830

$19,94 Unit Price incl. VAT

COMPRESSION SPRING

3234078

$47,24 Unit Price incl. VAT

COMPRESSION SPRING

3234089

$52,49 Unit Price incl. VAT

TORSION RETURN SPRING

3234276

$16,79 Unit Price incl. VAT

SPRING COMPRSSN.54ODX.44IDX.05

3234277

$26,24 Unit Price incl. VAT

SPRING WASHER

3235327

$17,84 Unit Price incl. VAT

GEARCASE COVER

3234188

$209,99 Unit Price incl. VAT

SHIFT DRUM

3235463

$519,74 Unit Price incl. VAT

SECTOR GEAR; 16 TOOTH

3233839

$68,24 Unit Price incl. VAT

SECTOR GEAR; 31 TOOTH CUT TO 11 TOOTH

3233832

$68,24 Unit Price incl. VAT

DETENT STAR

3235603

$73,49 Unit Price incl. VAT

FORK SHIFT

3235455

$173,24 Unit Price incl. VAT

PARK PLATE

3235456

$73,49 Unit Price incl. VAT

IDLER SHAFT; 29 TOOTH

3235223

$204,74 Unit Price incl. VAT

REVERSE SHAFT 25T

3235451

$272,99 Unit Price incl. VAT

BELLCRANK

3235474

$62,99 Unit Price incl. VAT

SHIFT COLLAR

3234073

$57,74 Unit Price incl. VAT

TUBE-VENT 90-1/4 HOSE

3234230

$19,94 Unit Price incl. VAT

ENGAGEMENT DOG

3234928

$136,49 Unit Price incl. VAT

SPROCKET; 48 TOOTH; 6 FACE

3235231

$152,24 Unit Price incl. VAT

LOW GEAR; 67 TOOTH

3235232

$230,99 Unit Price incl. VAT

6 FACE ENGAGEMENT DOG

3235233

$241,49 Unit Price incl. VAT

STAGE 3 GEAR; 46 TOOTH

3235236

$204,74 Unit Price incl. VAT

SHIFT SHAFT

3235238

$68,24 Unit Price incl. VAT

GEAR; 48 TOOTH

3235450

$246,74 Unit Price incl. VAT

PARK/LOW SHIFT DOG

3235457

$272,99 Unit Price incl. VAT

GEAR; 56T

3235534

$194,24 Unit Price incl. VAT

ROLLER PAWL

3235452

$68,24 Unit Price incl. VAT

WELD-REAR MOUNT BRKT

3235510

$99,74 Unit Price incl. VAT

GEAR SUBASSEMBLY

3234469

$136,49 Unit Price incl. VAT

LOCKING DIFFERENTIAL

3235373

$771,74 Unit Price incl. VAT

COVER SUBASSEMBLY

3235376

$262,49 Unit Price incl. VAT

GEAR SUBASSEMBLY; 39 TOOTH; SIDE

3235374

$351,74 Unit Price incl. VAT

GEAR SUBASSEMBLY; 39 TOOTH; SIDE

3235375

$351,74 Unit Price incl. VAT

PINION SHAFT SUBASSEMBLY

3235336

9999999

Not Available

GEAR SUBASSEMBLY; 53 TOOTH

3235378

9999999

Not Available

SHIFT FORK SUBASSEMBLY

3235454

$167,99 Unit Price incl. VAT

ROLLER PAWL

3235452

$68,24 Unit Price incl. VAT

COVER SUBASSEMBLY; RIGHT

3235549

9999999

Not Available

COVER-RH (422100/1333140)

3235548

9999999

Not Available

FORK RETAINER

3234934

$19,94 Unit Price incl. VAT

CENTER DRIVE BEARING COVER

3235241

$89,24 Unit Price incl. VAT

BRKT-MOUNT(430592)

3235350

$16,79 Unit Price incl. VAT

BRKT-MNT HARNESS

5257251

$57,74 Unit Price incl. VAT

BRKT-REAR MOUNT

3235511

$99,74 Unit Price incl. VAT

EXPANSION PLUG; 1 1/4

3234249

$25,19 Unit Price incl. VAT

SILENT CHAIN

3234737

$314,99 Unit Price incl. VAT

GEAR POSITION SWITCH PIN

7661999

$220,49 Unit Price incl. VAT

SOLENOID

3235478

$545,99 Unit Price incl. VAT

TRANSMISSION SPEED SENSOR

4013908

4082135

$204,74 Unit Price incl. VAT

O-RING

3233836

$12,59 Unit Price incl. VAT

O-RING

3234302

$13,64 Unit Price incl. VAT

O-RING

3233828

$12,59 Unit Price incl. VAT

SEAL

3234851

$68,24 Unit Price incl. VAT

VITON TRIPLE LIP SEAL; 40 X 70 X 7

3235052

$57,74 Unit Price incl. VAT

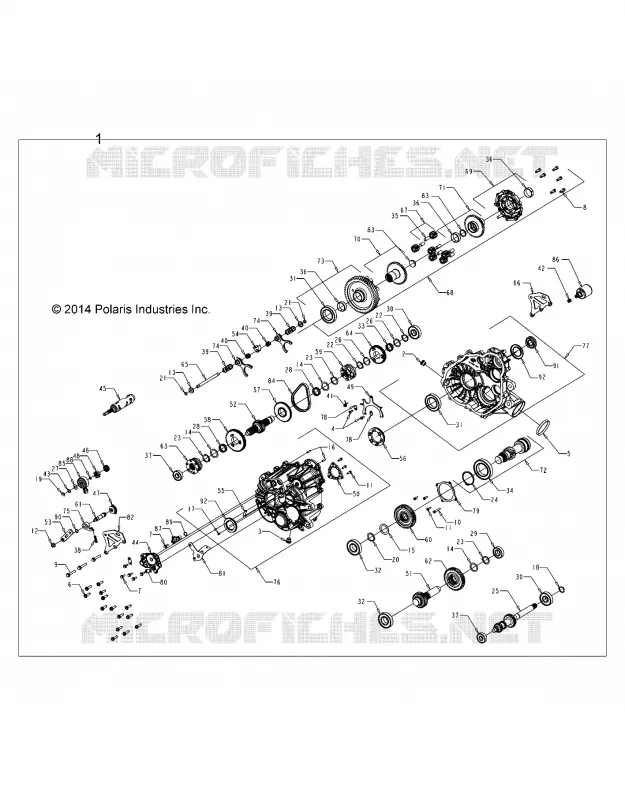

Find the detailed DRIVE TRAIN, MAIN GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
