1
Engine displacement
900
2
Year
2016
3
Trim
RZR 900 60 INCH ALL OPTIONS
4
Parts Catalog
ENGINE, ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
by
STARTER & DRIVE
ENGINE, ENGINE MOUNTING
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
14
15
16
17
1
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
ENGINE MOUNT WELD; BLACK
1018333329
Not Available
2
ENGINE GEARCASE COUPLER
5137795
5143718
$272,99 Unit Price incl. VAT
3
TRANSJOINT BRACKET MACHINED
5139904
5143635
$83,99 Unit Price incl. VAT
4
DRIVELINE ISOLATOR MOUNT
1332955
$136,49 Unit Price incl. VAT
5
M10 X 1.25 X 60 SCREW
7518563
$5,76 Unit Price incl. VAT
6
HEAD BOLT 10MM X 1.50MM X60MM
7518826
$9,44 Unit Price incl. VAT
7
HEX HEAD SCREW; 8 MM X 1.25 MM X 45 MM
7519097
$3,14 Unit Price incl. VAT
8
HEX FLANGE SCREW 10 MM X 1.25 MM X 40 MM
7519332
$10,49 Unit Price incl. VAT
9
PALNUT
7547030
$9,44 Unit Price incl. VAT
10
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
11
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
12
SCREW M10 X 1.25-6G
7519043
$17,84 Unit Price incl. VAT
13
HEX FLANGE SCREW; 8 MM X 1.25 MM X 60 MM
7519298
$7,34 Unit Price incl. VAT
14
SCR-HXFL-M10X1.25X75 10.9 ZOD
7519286
$13,64 Unit Price incl. VAT
15
WELD NUT PLATE
5259964
$41,99 Unit Price incl. VAT
16
KIT-LONG BLOCK 875 RGRXP
2205195
2207361
$10 814,99 Unit Price incl. VAT
17
WASHER
7556153
$3,66 Unit Price incl. VAT

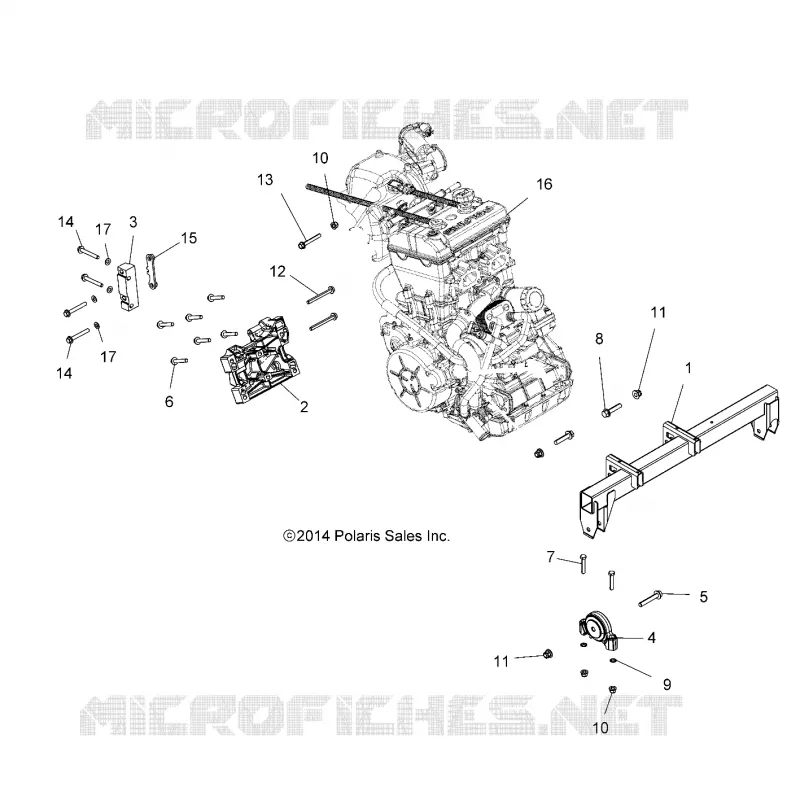

Find the detailed ENGINE, ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
