1
Engine displacement
900
2
Year
2016
3
Trim
RZR 900 60 INCH ALL OPTIONS
4
Parts Catalog
REAR SUSPENSION CONTROL ARMS
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION SHOCK INTERNALS
by
COOLING, WATERPUMP
REAR SUSPENSION CONTROL ARMS
1
1
1
1
1
1
2
3
3
4
4
4
4
4
4
5
6
6
7
7
7
7
8
8
8
8
8
8
9
9
9
9
9
9
10
10
11
12
13
13
14
16
17
17
17
17
18
19
20
21
22
23
1
A-ARM WELD REAR LOWER RIGHT 60 INDY RED
1021288293
Not Available
1
A-ARM WELD REAR LOWER RIGHT 60 CLD SLV
1021288385
Not Available
1
WELD-A-ARM REAR LWR LH 60 RED
1021287293
Not Available
1
A-ARM WELD; REAR; LOWER; RIGHT; MT BLK
1021288458
Not Available
1
A-ARM WELD REAR LOWER LEFT 60 CLD SLV
1021287385
Not Available
1
A-ARM WELD; REAR; LOWER; LEFT; MT BLK
1021287458
Not Available
2
PIVOT SHAFT
5138797
$16,79 Unit Price incl. VAT
3
PIVOT SHAFT
5138798
9999999
Not Available
4
STANDARD BUSHING; ORV
5439874
$4,19 Unit Price incl. VAT
5
SCREW M10 X 1.25-6G
7519043
$17,84 Unit Price incl. VAT
6
HEX HEAD SCREW; 10 MM X 1.25 MM X 140 MM
7519897
9999999
Not Available
7
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
8
WASHER
7556153
$3,66 Unit Price incl. VAT
9
A-ARM WELD; REAR; UPPER; LEFT; MT BLK
1018820458
Not Available
9
A-ARM WELD REAR UPPER RIGHT CLD SLV
1018821385
Not Available
9
WELD-A-ARM REAR UPR RH 60 RED
1018821293
Not Available
9
A-ARM WELD; REAR; UPPER; LEFT; CLD SLV
1018820385
Not Available
9
A-ARM WELD REAR UPPER RIGHT MATTE BLAC
1018821458
Not Available
9
WELD-A-ARM REAR UPR LH 60 RED
1018820293
Not Available
10
SCREW
7519365
$25,19 Unit Price incl. VAT
11
PIVOT SHAFT; SHORT; 10 MM
5139990
$10,49 Unit Price incl. VAT
12
PIVOT SHAFT; LONG; 12 MM
5139991
5144659
$16,79 Unit Price incl. VAT
13
WHEEL BEARING CARRIER; LEFT
5139979
$169,04 Unit Price incl. VAT
13
WHEEL BEARING CARRIER; RIGHT
5139980
$169,04 Unit Price incl. VAT
14
HEX FLANGE SCREW; 12 MM X 1.5 MM X 170
7520294
$20,99 Unit Price incl. VAT
16
CV SHIELD; REAR; GLOSS BLACK
5451336070
Not Available
17
ZERK FITTING
7080510
$10,49 Unit Price incl. VAT
18
SEALED PIVOT CAP ASSEMBLY; 10 MM
1543611
$10,49 Unit Price incl. VAT
19
SEALED PIVOT CAP ASSEMBLY; 12 MM
1543612
$10,49 Unit Price incl. VAT
20
WASHER 7/16
7556212
$15,74 Unit Price incl. VAT
21
STANDARD SUSPENSION BUSHING; 10 MM
5452233
$5,24 Unit Price incl. VAT
22
STANDARD BUSHING; SUSPENSION; M12
5452271
$6,29 Unit Price incl. VAT
23
NUT 12MM X 1.5MM
7547334
$9,44 Unit Price incl. VAT

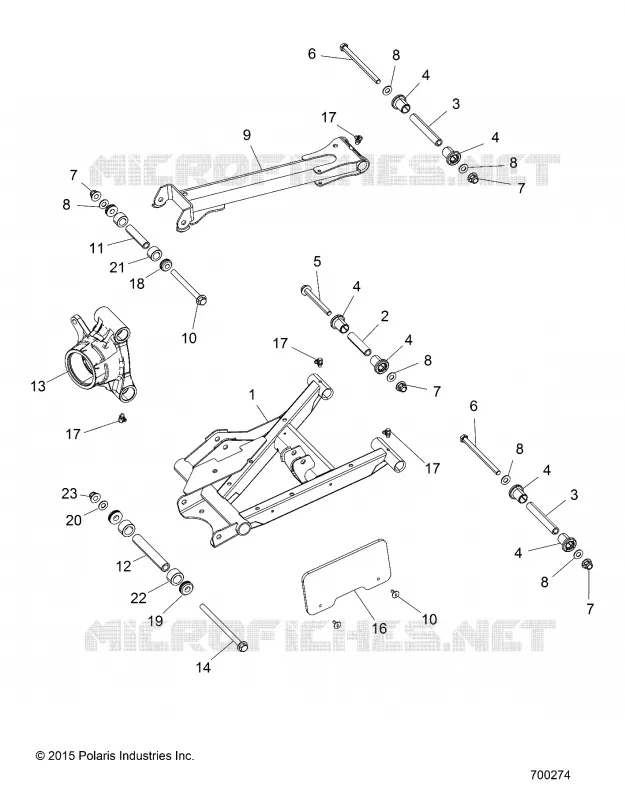

Find the detailed REAR SUSPENSION CONTROL ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
