1
Engine displacement
850
2
Year
2013
3
Trim
SPORTSMAN TOURING 850 EPS INTL - A13DN8EFW
4
Parts Catalog
DRIVE TRAIN, PRIMARY CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS
by
DRIVE TRAIN, PROP SHAFT, FRONT
DRIVE TRAIN, PRIMARY CLUTCH
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
1
BASIC EBS DRIVE CTCH ASM
1322953
$1 070,99 Unit Price incl. VAT
2
ONE WAY CLUTCH ASSEMBLY
1521667
$115,49 Unit Price incl. VAT
3
DU BUSHING; 1.75
3514492
$54,59 Unit Price incl. VAT
4
SPACER-CLUTCH PM
5632328
5633000
$52,49 Unit Price incl. VAT
5
CLUTCH BUTTON
5439254
$14,69 Unit Price incl. VAT
6
WASHER CLUTCH SPIDER ROLLER
5438247
$3,14 Unit Price incl. VAT
7
ROLLER AND BUSHING ASSEMBLY
1321622
$62,99 Unit Price incl. VAT
8
ROLLER PIN
5020422
$4,19 Unit Price incl. VAT
9
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
10
CLUTCH SPRING
7043349
$89,24 Unit Price incl. VAT
11
BEARING COVER; .75 IN
3514684
$27,29 Unit Price incl. VAT
12
SCR-1/4-20X1.25 HX/FL GR5
7518062
$9,44 Unit Price incl. VAT
13
SHOULDER BOLT
7512266
$5,76 Unit Price incl. VAT
14
SHIFT WEIGHT; 24-63
5632215
$52,49 Unit Price incl. VAT
15
BUSHING; .475 X .770 X .50
5437682
$9,44 Unit Price incl. VAT
16
WASHER-.475X1.25X.190 FL-Y
7556468
$7,34 Unit Price incl. VAT
17
WASHER-1/2 INT LK-(1224)-Z
7556377
$6,29 Unit Price incl. VAT
18
BOLT-CLUTCH LH
7518868
$17,84 Unit Price incl. VAT
19
CLUTCH WASHER
7556335
$11,54 Unit Price incl. VAT
20
SPACER-CLUTCH LIMITER .200
5438737
$7,34 Unit Price incl. VAT

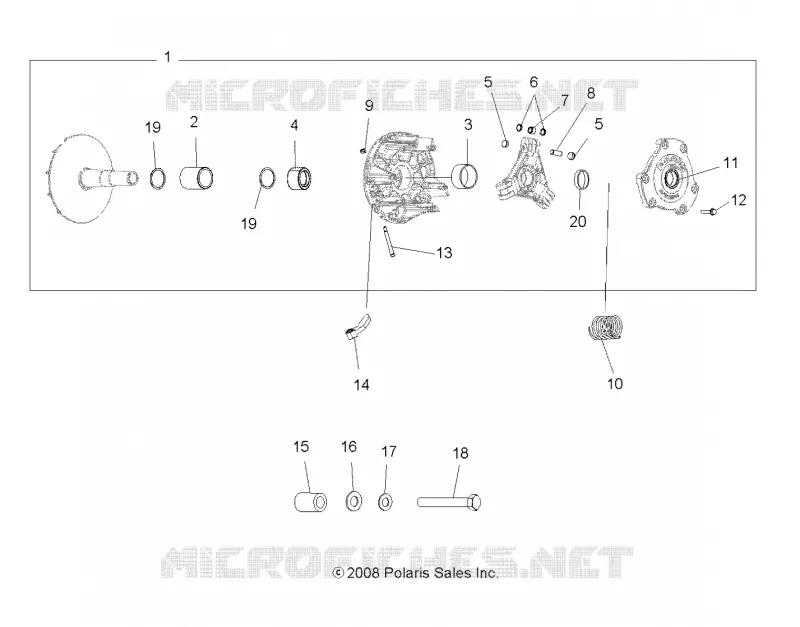

Find the detailed DRIVE TRAIN, PRIMARY CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
