1
Engine displacement
850
2
Year
2013
3
Trim
SPORTSMAN TOURING 850 EPS INTL - A13DN8EFW
4
Parts Catalog
CRANKCASE
5
Parts Diagram
Parts Catalog
COOLING SYSTEM AND WATER PUMP
by
SHORT BLOCK
CRANKCASE
1
1
1
1
2
2
2
2
2
2
2
15
4
4
4
5
6
7
8
9
10
11
12
13
14
15
1
KIT-CRANKCASE 850 IRON LINED
2204054
2204957
$3 008,24 Unit Price incl. VAT
1
CRANKCASE KIT 1204585
2204957
$3 008,24 Unit Price incl. VAT
2
PIN-DOWEL M6X10
5136879
5132835
$4,19 Unit Price incl. VAT
3
BALANCE SHAFT WITH FLANGE SEAL; 55 MM
3610144
$14,69 Unit Price incl. VAT
4
PLUG-1/8 NPT;HX/SOC W/SEALANT
7052337
$6,29 Unit Price incl. VAT
5
PLUG-3/8 NPT;HX/SOC W/SEALANT
7052413
$8,39 Unit Price incl. VAT
6
PLUG-HEX SOCKET;1/4X18;SEALANT
7518835
$10,49 Unit Price incl. VAT
7
MAIN BEARING REAR/FRONT 55 MM
3514534
3515829
$20,99 Unit Price incl. VAT
8
CENTER MAIN BEARING 55 MM
3514535
3515830
$20,99 Unit Price incl. VAT
9
HEX FLANGE BOLT; 9 MM X 1.25 MM X 160 MM
7518804
$5,76 Unit Price incl. VAT
10
HEX FLANGED BOLT 9 MM X 1.25 MM X 115 MM
7518805
$10,49 Unit Price incl. VAT
11
HEX FLANGE SCREW; 6 MM X 35 MM
7518578
$7,34 Unit Price incl. VAT
12
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
13
CRANKSHAFT SEAL; 55.7 MM
3610152
$73,49 Unit Price incl. VAT
14
CRANKSHAFT SEAL; 32 MM
3610151
9999999
Not Available
15
BALANCE SHAFT WITH FLANGE SEAL; 55 MM
3610144
$14,69 Unit Price incl. VAT

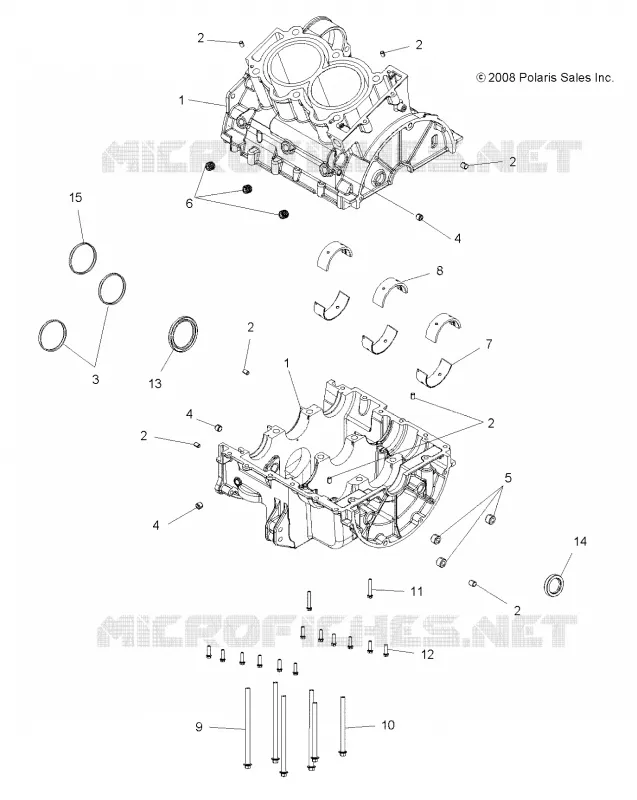

Find the detailed CRANKCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
