Parts Catalog
RAIL MOUNTING (SUSPENSION)
5
Parts Diagram
Parts Catalog
SUSPENSION
by
FRONT TORQUE ARM
RAIL MOUNTING (SUSPENSION)
1
WHEEL ASM.
1594070
9999999
Not Available
2
CHAINCASE BEARING
3514305
$34,64 Unit Price incl. VAT
3
RETAINING RING
7718407
$9,44 Unit Price incl. VAT
4
SCREW
7515346
$10,49 Unit Price incl. VAT
5
WASHER FLAT
7555959
9999999
Not Available
6
MOUNT; WHEEL; MACHINED
5131314
9999999
Not Available
7
NUT PUSH-ON(10)
7670068
$4,19 Unit Price incl. VAT
8
BUMPER JOUNCE XL
5811282
Not Available
9
SCREW
7517227
$13,64 Unit Price incl. VAT
10
BRKT IDLER ADJ
5241628
$62,99 Unit Price incl. VAT
11
RAIL ASM RH 121 XTRA LITE (Incl. 9 10 12 13 15 16 23 25)
1541108
Not Available
11
RAIL ASMLH121XTRA LITE
1541107
9999999
Not Available
12
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
13
RIVET(10)
7621512
$2,09 Unit Price incl. VAT
14
PIN-HOOD HINGE
7661621
$7,34 Unit Price incl. VAT
15
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
16
SCREW
7515433
$3,14 Unit Price incl. VAT
17
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
18
BUSHING
5010332
9999999
Not Available
19
BLOCK; SPRING SLIDER
5431924
9999999
Not Available
20
BOLT
7515317
$9,44 Unit Price incl. VAT
21
SCREW
7515199
$2,09 Unit Price incl. VAT
22
RIVET(10)
7621435
$2,09 Unit Price incl. VAT
23
CAP RAILTIP (XL)
5432364
9999999
Not Available
24
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT

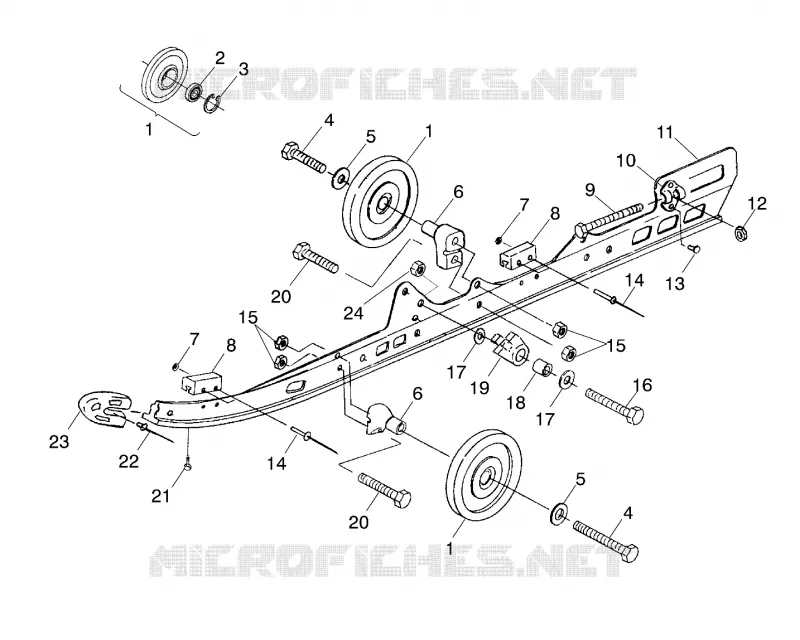

Find the detailed RAIL MOUNTING (SUSPENSION) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
