BRAKES, BRAKE LINES AND MASTER CYLINDER for POLARIS RANGER SP 570 NORTHSTAR EDITION from 2023

WINDSHIELD WIPER AND WASHER BOTTLE ASM.

BRAKES, FRONT BRAKE CALIPER

BRAKES, BRAKE LINES AND MASTER CYLINDER

1

BANJO BOLT; 10 MM X 1.00

1910499

$10,49 Unit Price incl. VAT

2

BANJO BOLT; 10 MM X 1.00

1910499

$10,49 Unit Price incl. VAT

3

MASTER CYLINDER BRAKE

1912463

$482,99 Unit Price incl. VAT

4

LINE-BRK FL

1913838

$89,24 Unit Price incl. VAT

5

LINE-BRK FR

1913839

$99,74 Unit Price incl. VAT

6

LINE-BRK MCT

1913842

$141,74 Unit Price incl. VAT

7

LINE-BRK RL

1913840

$272,99 Unit Price incl. VAT

8

SHIELD-MASTER CYL;GALV

5258202

$16,79 Unit Price incl. VAT

9

SWITCH-BRK M10X1.25 DBL

4081117

4081264

$153,29 Unit Price incl. VAT

10

SEAL

5413212

9999999

Not Available

11

WRENCH-8MMX10MM OPEN END

Not Available

12

SCREW

7517281

$13,64 Unit Price incl. VAT

13

SCR-HXFL M6X1.0X16 8.8ZY3DL204

7519329

$7,34 Unit Price incl. VAT

14

CLIP-NYLON FIR-TREE 7.0

7662429

$10,49 Unit Price incl. VAT

15

HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM

7518558

$7,34 Unit Price incl. VAT

16

SCR-TFHFL-M6X1.0X25 ZOD

7519342

$3,14 Unit Price incl. VAT

17

RIVET 3/16 X .402

7621432

$2,09 Unit Price incl. VAT

18

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$5,24 Unit Price incl. VAT

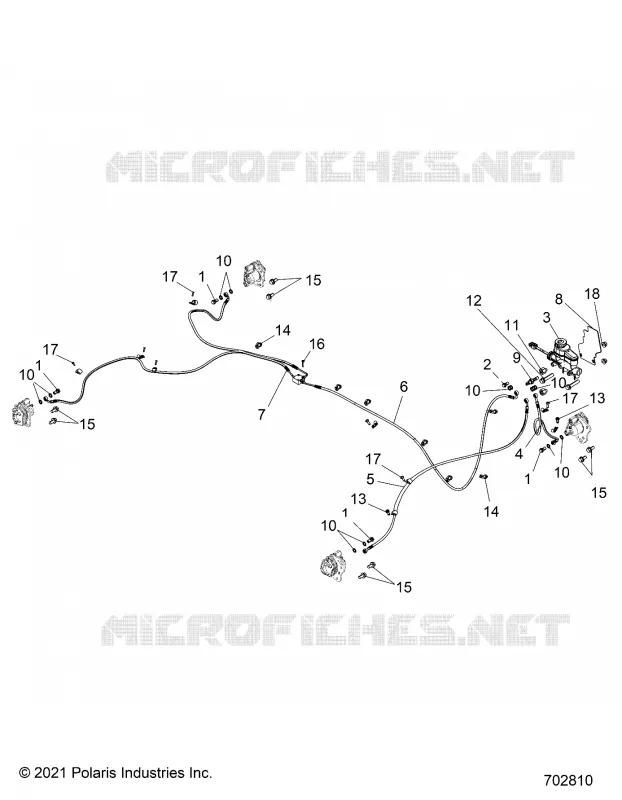

Find the detailed BRAKES, BRAKE LINES AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
