CHASSIS, MAIN FRAME AND SKID PLATES for POLARIS RZR PRO XP 4 ULTIMATE from 2024

CHASSIS, CAB FRAME

CHASSIS, MOUNTING, FRONT GEARCASE

CHASSIS, MAIN FRAME AND SKID PLATES

1

WELD-MOUNT PROPSHAFT ECOAT

1023970329

Not Available

2

WELD-MAINFRAME ISO 64 MP BLK

1027222458

Not Available

3

WELD-MOUNT PROPSHAFT MP ECOAT

1024572329

Not Available

4

WELD-FRAME CROSS BAR MP BLK

1024813458

Not Available

5

SCR-HEXFLGHD M10X16 0600086

7517951

$10,49 Unit Price incl. VAT

6

HEX HEAD FLANGE BOLT 8MM X 20MM -1.25MM

7518450

$3,14 Unit Price incl. VAT

7

BOLT-M8X1.25X16 HXHDFLG W/PTCH

7518695

$7,34 Unit Price incl. VAT

8

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

9

HEX FLANGE SCREW; 8 MM X 20 MM

7517838

$7,34 Unit Price incl. VAT

10

WELD-SEAT BASE;FRT;MP;ECOAT

1024041329

Not Available

11

WELD-SEAT BASE;REAR;MP;ECOAT

1024042329

Not Available

12

WELD-MOUNT SHIFT/SCM ECOAT MP

1026074329

Not Available

13

TUBE-SEAT BASE;FRONT;ECOAT

5340949329

Not Available

14

SCREW

7516733

$11,54 Unit Price incl. VAT

15

HEX FLANGE BOLT; 10 MM X 1.5 MM X 55 MM

7518474

$9,44 Unit Price incl. VAT

16

SCR-M10X1.50X50 HX/FL-Y

7518687

$9,44 Unit Price incl. VAT

17

SCR-HXFL-M8X1.25X50 DP ZODP30

7519245

$7,34 Unit Price incl. VAT

18

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

19

BRKT-CLOSE OFF SUPPORT;ECOAT

5269415329

Not Available

20

SCREW

7516732

$3,14 Unit Price incl. VAT

21

WELD-MOUNT BOX

1027997

1029389

$83,99 Unit Price incl. VAT

22

NUT-RIVNUT HEX M6X1.00

7547790

$6,29 Unit Price incl. VAT

23

SCREW

7517281

$13,64 Unit Price incl. VAT

24

WELD-MOUNT HINGE UPR MP LH BLK

1027229458

Not Available

25

WELD-MOUNT HINGE UPR MP RH BLK

1027230458

Not Available

26

SCR-M10X1.5X25 8.8 HXFL ZOD

7519071

$9,44 Unit Price incl. VAT

27

WASHER

7556153

$3,66 Unit Price incl. VAT

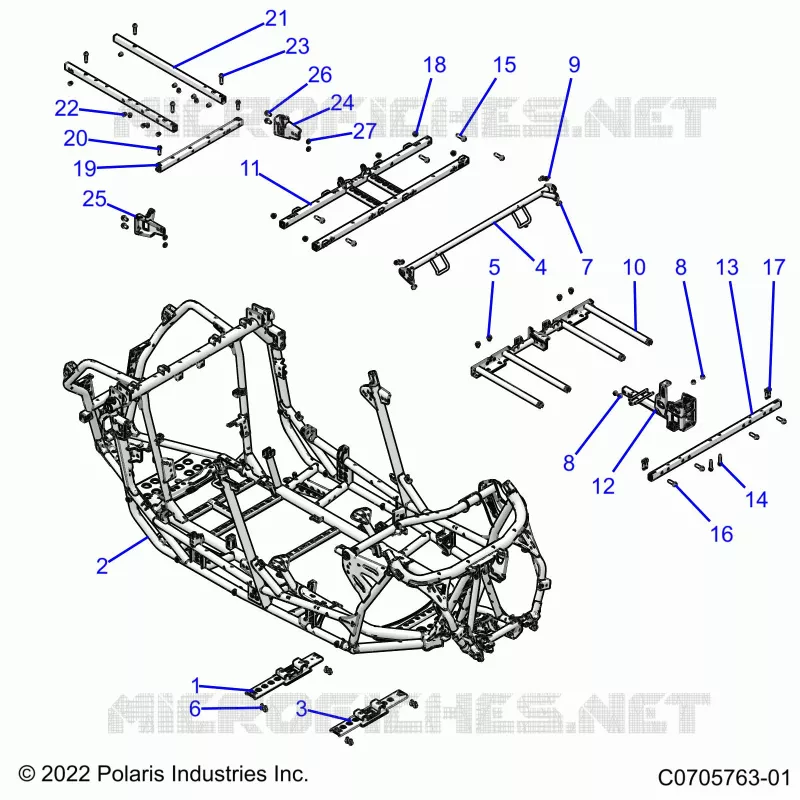

Find the detailed CHASSIS, MAIN FRAME AND SKID PLATES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
