ENGINE, AIR INTAKE MANIFOLD for POLARIS RZR PRO XP 4 ULTIMATE from 2024

ELECTRICAL, WIRE HARNESS, PERIPHERAL

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE MANIFOLD

1

ELEC THROTTLE CONTROL THROTTLE 46MM

1204455

$997,49 Unit Price incl. VAT

2

LCAC CORE

1240930

$803,24 Unit Price incl. VAT

3

ASM-HOSE REFERENCE;48CM

1241347

$23,09 Unit Price incl. VAT

4

3 BAR TMAP SENSOR

2413095

$167,99 Unit Price incl. VAT

5

FUEL RAIL ASSEMBLY

2522004

$388,49 Unit Price incl. VAT

6

O-RING INJECTOR

5417103

$10,49 Unit Price incl. VAT

6

INJECTOR-FUEL 570G 3.8BAR

2521914

$141,74 Unit Price incl. VAT

7

INJECTOR CLIP

2521515

$17,84 Unit Price incl. VAT

8

BANJO BOLT; 8 MM X 1 MM

2521519

$19,94 Unit Price incl. VAT

9

BANJO FITTING; 8 MM

2521520

$57,74 Unit Price incl. VAT

10

WASHER-M8 AL

2521527

$9,44 Unit Price incl. VAT

11

CLAMP-VBAND INTAKE

3022888

$89,24 Unit Price incl. VAT

12

COMPRESSION LIMITER

3022994

$14,69 Unit Price incl. VAT

13

ISOLATOR

5415637

$5,24 Unit Price incl. VAT

14

GASKET

5813735

$20,99 Unit Price incl. VAT

15

SEAL-LCAC TOP

5814277

$20,99 Unit Price incl. VAT

16

LCAC SEAL; LOWER

5814884

$89,24 Unit Price incl. VAT

17

CLAMP-OETIKER 16700005-10.0

7082109

$7,34 Unit Price incl. VAT

18

SCR-M6X1.0X50.0 HX/FL-YD (10)

7517932

$7,34 Unit Price incl. VAT

19

HEX FLANGE SCREW; 6 MM X 16 MM

7518548

$3,14 Unit Price incl. VAT

20

HEX FLANGE SCREW; 6 MM X 20 MM

7518576

$6,29 Unit Price incl. VAT

21

SCR-M8X1.25X75 8.8 HX/FL ZOD

7518955

$6,29 Unit Price incl. VAT

22

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$6,29 Unit Price incl. VAT

23

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

24

INJECTOR HARNESS MOUNT BRACKET; BLACK

5260975329

Not Available

25

MANIFOLD-MACH VBAND

5142566

$472,49 Unit Price incl. VAT

25

ASM-MANIFOLD VBAND EVAP

3023598

$456,74 Unit Price incl. VAT

26

HARNESS BRACKET

5262111

$52,49 Unit Price incl. VAT

27

BRKT-SENSOR LAMBDA

5267922

$16,79 Unit Price incl. VAT

28

FUEL LINE MOUNT BRACKET; BLACK

5261651329

Not Available

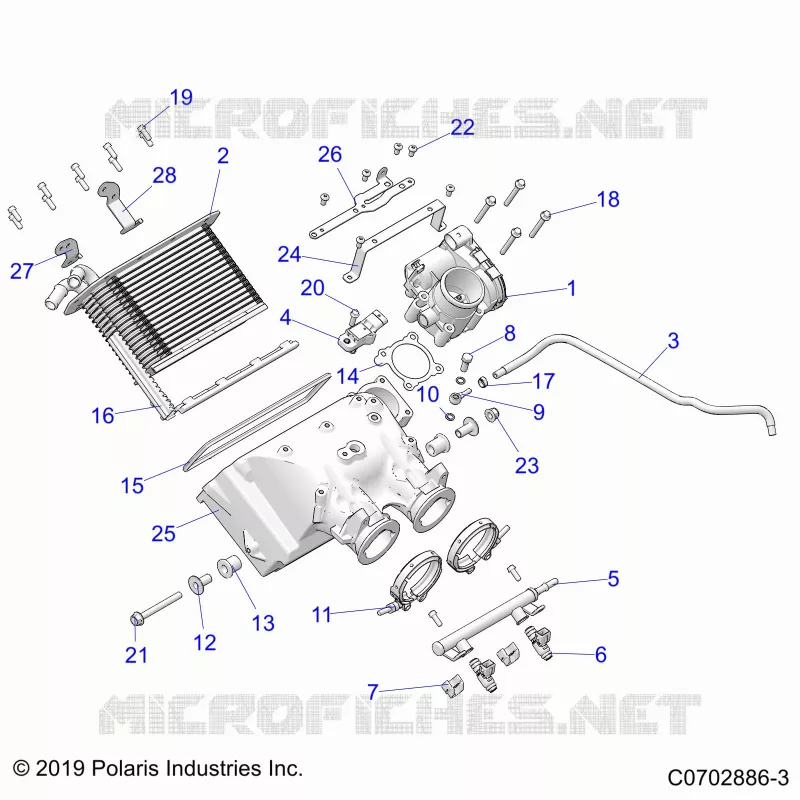

Find the detailed ENGINE, AIR INTAKE MANIFOLD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
