1
Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN 570 6X6 EURO
4
Parts Catalog
BATTERY
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, REAR DRIVE SHAFT
by
GAUGES & INDICATORS
BATTERY
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
14
14
15
16
17
18
19
20
21
1
TERMINAL BLOCK; 3 POST
4011892
$62,99 Unit Price incl. VAT
2
NUTS-10-32 KEPS
7547341
$1,56 Unit Price incl. VAT
3
CABLE-BATT 6GA RD BATT/SOL/TB
4014935
$104,99 Unit Price incl. VAT
4
INSUL.CABLE SOL.
5410346
9999999
Not Available
4
CABLE-BATT 6GA RD FLAT FLAT M6
4014424845
Not Available
5
STARTER SOLENOID
4012001
4081641
$59,84 Unit Price incl. VAT
6
SCREW
7512084
$2,09 Unit Price incl. VAT
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
STRAP-GROUND
5260167
$26,24 Unit Price incl. VAT
9
CABLE-BATT 6GA BK BAT/START/TB
4014937
$60,89 Unit Price incl. VAT
10
SEALED BATTERY 14 AMP HOUR TYPE ETX15
4011138
$178,49 Unit Price incl. VAT
11
BATTERY HOLD DOWN STRAP
5412499
5418182
$9,44 Unit Price incl. VAT
12
BATTERY STRAP HOOK
7010032
9999999
Not Available
13
FOAM-COVER
5813265
9999999
Not Available
14
SCREW
7517386
$2,09 Unit Price incl. VAT
15
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
16
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
17
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT
18
BRKT-FUSE BLOCK
5262951
5270030
$31,49 Unit Price incl. VAT
19
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
20
BATTERY GUARD BRACKET
5259571
$62,99 Unit Price incl. VAT
21
BATTERY COVER
5431769
$29,39 Unit Price incl. VAT

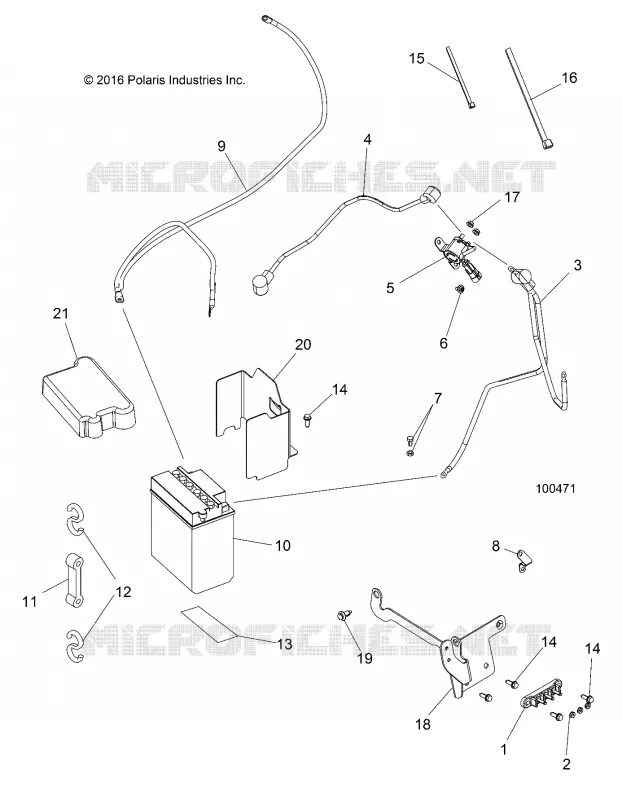

Find the detailed BATTERY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
