1
Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN 570 6X6 EURO
4
Parts Catalog
SWITCHES, SENSORS AND ECM
5
Parts Diagram
Parts Catalog
IGNITION COIL, WIRE AND SPARK PLUG
by
TAIL LIGHTS
SWITCHES, SENSORS AND ECM
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
22
22
22
23
1
TRANSMISSION SPEED SENSOR
4013908
4082135
$204,74 Unit Price incl. VAT
2
IGNITION SWITCH NUT
5433733
9999999
Not Available
3
SWITCH-BRK M10X1.25 SGL NO RES
4017278
4081314
$153,29 Unit Price incl. VAT
4
KEY SWITCH KEY COVER
5433534
5465307
$26,24 Unit Price incl. VAT
5
4 POSITION KEY SWITCH; ATV
4012166
4083619
Not Available
5
BLANK KEY; 22/23/27/28
4010321
4083604
$27,29 Unit Price incl. VAT
5
BLANK KEY; 20/21/67/68
4010278
4083605
$27,29 Unit Price incl. VAT
6
SCREW TAPPINGHEXHEAD1/4-20X.75
3234247
$10,49 Unit Price incl. VAT
7
O-RING
3234302
$13,64 Unit Price incl. VAT
8
GEAR POSITION SWITCH PIN
7661999
$220,49 Unit Price incl. VAT
9
RETAINING RING
3233834
$19,94 Unit Price incl. VAT
10
NO START ELECTRIC CONTROL MODULE (ECM)
4014125
$1 123,49 Unit Price incl. VAT
11
MNT-ECM REAR BLK
5438708070
Not Available
12
SCR-#10X1/2-HI/LO-PN-T25 TRX-M
7519091
$6,29 Unit Price incl. VAT
13
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
14
VOLTAGE REGULATOR
4016868
$246,74 Unit Price incl. VAT
15
COVER-VOLTAGE REGULATOR
5253294
9999999
Not Available
16
SCREW
7515179
$4,19 Unit Price incl. VAT
17
THEMISTER SENSOR
4010644
$141,74 Unit Price incl. VAT
18
TMAP SENSOR
2411528
$178,49 Unit Price incl. VAT
19
BOLT(1)
7516603
$19,94 Unit Price incl. VAT
20
X-MAS TREE CLIP
7670101
$4,19 Unit Price incl. VAT
20
MODULE-FLASH TURN TRAILER TRC
4017177
$141,74 Unit Price incl. VAT
21
ON/OFF WORKLIGHT SWITCH
4011074
$73,49 Unit Price incl. VAT
22
CABLE CLAMP
7080367
$4,19 Unit Price incl. VAT
22
SHIELD-HEAT WRAP CPS
5814858
$36,74 Unit Price incl. VAT
22
CRANK POSITION SENSOR
2411719
$194,24 Unit Price incl. VAT
22
ASM-SENSOR CRANK POSITION
2414984
$178,49 Unit Price incl. VAT
23
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT

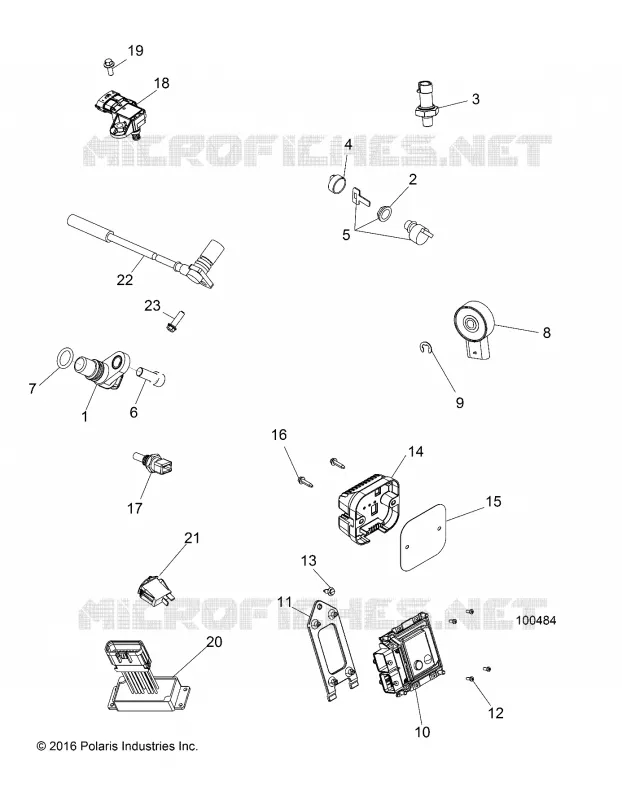

Find the detailed SWITCHES, SENSORS AND ECM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
