ELECTRICAL BOX SLTX B964590 AND INTL. SLTX I964590 (4935783578B010) for POLARIS SLTX

WATER INLET SLTX B964590 AND INTL. SLTX I964590 (4935783578B009)

CYLINDER MANIFOLD SLTX B964590 AND INTL. SLTX I964590 (4935783578C001)

BOLT

7515127

9999999

Not Available

WASHER S.S.(10)

7555891

9999999

Not Available

GROMMET

5411158

9999999

Not Available

CLIP IGNITION CABLE

7080471

9999999

Not Available

HARNESS GND-CONTROL BOX

2460581

Not Available

WIRE JUMPER

4010117

9999999

Not Available

WASHER S.S.(10)

7555891

9999999

Not Available

BOLT; S.S.

7515118

9999999

Not Available

O-RING (ELEC.BOX)

5410912

9999999

Not Available

SCREW S.S.(10)

7512072

9999999

Not Available

SUBSTITUTED BY 4040071

4040068

$31,80 Unit Price incl. VAT

BOLT; S.S.

7512042

9999999

Not Available

WASHER; LOCK

7552615

9999999

Not Available

SWITCHLOWFUEL&OHEAT

4060145

9999999

Not Available

REGULATOR/RECT/CUT-OFF

4060115

9999999

Not Available

BOX BOTTOM ELEC.

5131256

Not Available

GROMMET SECTION 2-HOLE

5410852

Not Available

O-RING(10)

5410817

9999999

Not Available

GROMMET SECTION NO HOLE

5410850

9999999

Not Available

PLATE 6-HOLE CAST

5630497

Not Available

WASHER

7555836

9999999

Not Available

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

INSUL.CABLE SOL.

5410346

9999999

Not Available

CKT.BREAKER 15A.(WATER.)

2434011

9999999

Not Available

O-RING

5410725

9999999

Not Available

BOOT THREADED

7080461

9999999

Not Available

GROMMET COIL

5410677

Not Available

SPARK PLUG CAP

4020159

9999999

Not Available

TOP; ELEC.BOX

5131174

9999999

Not Available

GROMMET; 16 GA.(10)

5410678

9999999

Not Available

PLATE 5-HOLE

5630416

Not Available

CABLE RED SOL./START.

4010081

Not Available

CONVOLUTED CONDUIT 30 CM

401005130

Not Available

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

NUT 6 MM. S.S.

7546705

$9,44 Unit Price incl. VAT

WASHER LOCK

7552613

9999999

Not Available

BOLT

7516809

9999999

Not Available

CABLE;RED;BATT/SOL.

4010082

9999999

Not Available

PLATE; 2-HOLE

5630415

9999999

Not Available

BOLT

7515119

9999999

Not Available

BRKT COIL RETAINER

5241182

9999999

Not Available

DECAL WARN HI.VOLT.

7073713

9999999

Not Available

DECAL ELECT.BOX RESET

7073734

Not Available

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

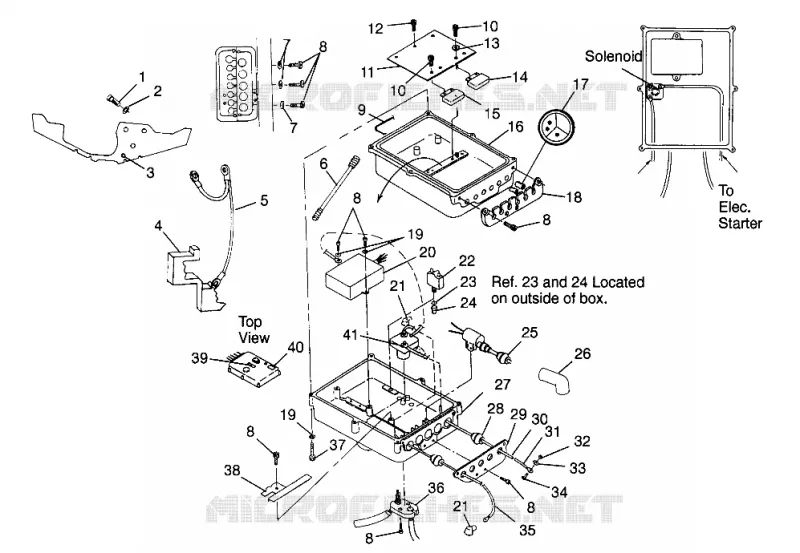

Find the detailed ELECTRICAL BOX SLTX B964590 AND INTL. SLTX I964590 (4935783578B010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
