1
Engine displacement
1050
2
Year
1996
3
Trim
SLTX - B964590
4
Parts Catalog
EXHAUST SYSTEM SLTX B964590 AND INTL. SLTX I964590 (4935783578B004)
5
Parts Diagram
Parts Catalog
PROPULSION SLTX B964590 AND INTL. SLTX I964590 (4935783578B003)
by
BATTERY BOX SLTX B964590 AND INTL. SLTX I964590 (4935783578B005)
EXHAUST SYSTEM SLTX B964590 AND INTL. SLTX I964590 (4935783578B004)
1
FITTING WATER INLET
5020668
9999999
Not Available
2
PIPE ASM;EXH;TRIPLE;FR.RED
1260734093
Not Available
3
BOLT; S.S.
7517005
9999999
Not Available
4
SCREW; S.S.
7517209
9999999
Not Available
5
BOLT S.S.(10)
7517004
9999999
Not Available
6
WASHER LOCKSS.
7552611
9999999
Not Available
7
WASHER; FLAT; S.S.
7555856
9999999
Not Available
8
FITTING SCREEN
7052128
9999999
Not Available
9
FITTING INJECTOR
5020747
9999999
Not Available
10
SCREW
7516918
9999999
Not Available
11
WASHER LOCK SS.
7552608
9999999
Not Available
12
WASHER FLAT
7555841
9999999
Not Available
13
HOSE CLAMP
7080439
$17,84 Unit Price incl. VAT
14
HOSE PIPE/SILENCER
5411117
Not Available
15
CLAMP-HOSE 2.75 -SS
7080446
$20,99 Unit Price incl. VAT
16
SILENCER; EXHAUST
1260746093
Not Available
17
CLAMP; HOSE(10)
7080445
9999999
Not Available
18
HOSE X-OVER SKITOW BOLT
5411215
Not Available
19
FITTING EXH SLT
5630647
Not Available
20
SEAL U WATER EXHAUST
5811340
9999999
Not Available
21
WEDGE EXH.FITTING
5630646
Not Available
22
PLATE EXH SLT
5432425
9999999
Not Available
23
WASHER; LOCK; S.S.
7555838
9999999
Not Available
24
SCREW SS.
7517234
Not Available
25
SCREW
7517233
9999999
Not Available
26
FITTING; HOSE
7052074
9999999
Not Available
27
FITTING; PIPE
7052071
9999999
Not Available
28
HOOK; D;SST/SS;(10)
5224472
9999999
Not Available
29
STRAP RUBBER
5410853
9999999
Not Available
30
PAD FOAM SHORT
5811341
Not Available
31
BOLT
7515127
9999999
Not Available
32
WASHER; FLAT; S.S.(10)
7555839
9999999
Not Available
34
BUMPER RUBBER
5410414
$6,29 Unit Price incl. VAT
35
CRADLE SILENCER
5241732
9999999
Not Available

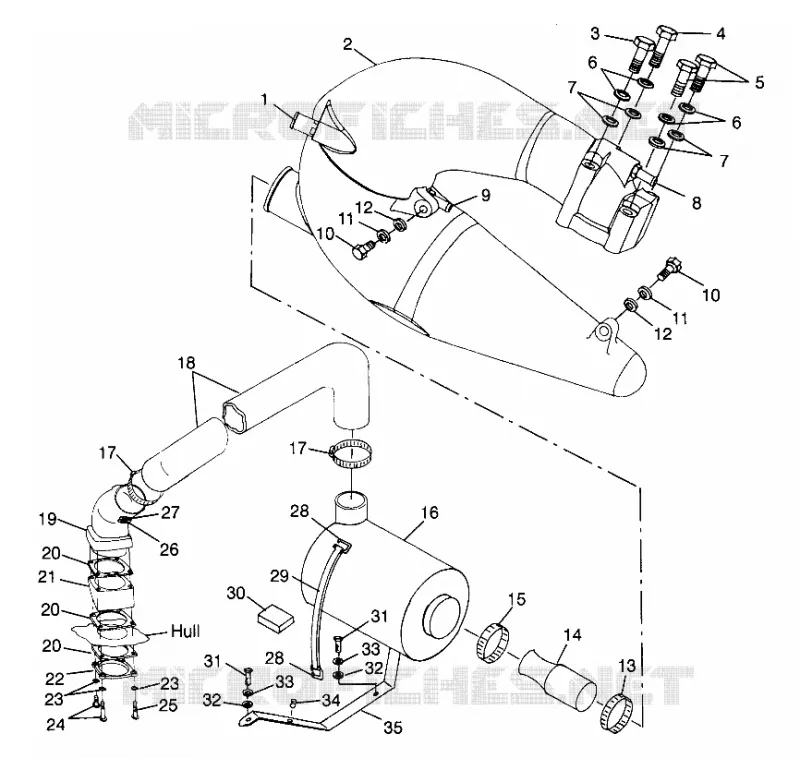

Find the detailed EXHAUST SYSTEM SLTX B964590 AND INTL. SLTX I964590 (4935783578B004) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
