DRIVE TRAIN, JACKSHAFT AND DRIVE SHAFT for POLARIS 600 PRO-RIDE RUSH from 2010

DRIVE TRAIN, JACKSHAFT AND DRIVE SHAFT

1

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$11,54 Unit Price incl. VAT

1

CLUTCH DRIVE ATV

1321476

1321976

$1 081,49 Unit Price incl. VAT

2

FLANGETTE-3BOLT 0MM OFFSET OUT

5252738

$18,89 Unit Price incl. VAT

2

BOLT

7512265

9999999

Not Available

3

SPRING LOCK WASHER

7552801

$3,14 Unit Price incl. VAT

3

ASM-JACKSHAFT 15/21 SPL W/BRG

1332663

1333019

$587,99 Unit Price incl. VAT

4

BEARING; 1 MM X 52 MM X 15 MM

3514617

$54,59 Unit Price incl. VAT

4

BUSHING;CLUTCH COVER

5010189

9999999

Not Available

5

FLANGETTE-3BOLT 0MM OFFSET IN

5252739

$18,89 Unit Price incl. VAT

5

CLUTCH SPRING

7041157

$89,24 Unit Price incl. VAT

6

ROLLER/BUSHING ASSEMBLY

1321457

$73,49 Unit Price incl. VAT

6

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

7

WASHER

5430702

5438247

$3,14 Unit Price incl. VAT

7

ASM-DRVSHAFT TUBULAR DOM2S-8T

1590461

1590488

$944,99 Unit Price incl. VAT

8

FLANGETTE W/ SCREW ASSEMBLY

1016551

$68,24 Unit Price incl. VAT

8

SEAL; O RING;

5410374

9999999

Not Available

9

JACKSHAFT GASKET; BLACK

5811095

9999999

Not Available

9

BUTTON; GUIDE

5430768

9999999

Not Available

10

BOLT-M8X1.25X20 CARR-OLIVE D

7518564

$9,44 Unit Price incl. VAT

10

SPACER .050

5210754

$6,29 Unit Price incl. VAT

11

PALNUT

7547030

$9,44 Unit Price incl. VAT

11

INSERT MOVEABLE

5010218

9999999

Not Available

12

WT. CLUTCH 16(3)

5630279

9999999

Not Available

12

DRIVE PICKUP HOUSING

5246960

$47,24 Unit Price incl. VAT

13

SHOULDER BOLT

7512266

$5,76 Unit Price incl. VAT

13

O-RING 20.30 MM X 2.62 MM

5413563

$3,14 Unit Price incl. VAT

14

BEARING; SLEEVE

5430748

9999999

Not Available

15

FLEXLOC NUT(10)

7541906

$6,29 Unit Price incl. VAT

16

PIN SPIDER

5020436

9999999

Not Available

16

TOOLCLUTCH OFFSET

2870654

9999999

Not Available

17

SPACER .020

5210752

$3,14 Unit Price incl. VAT

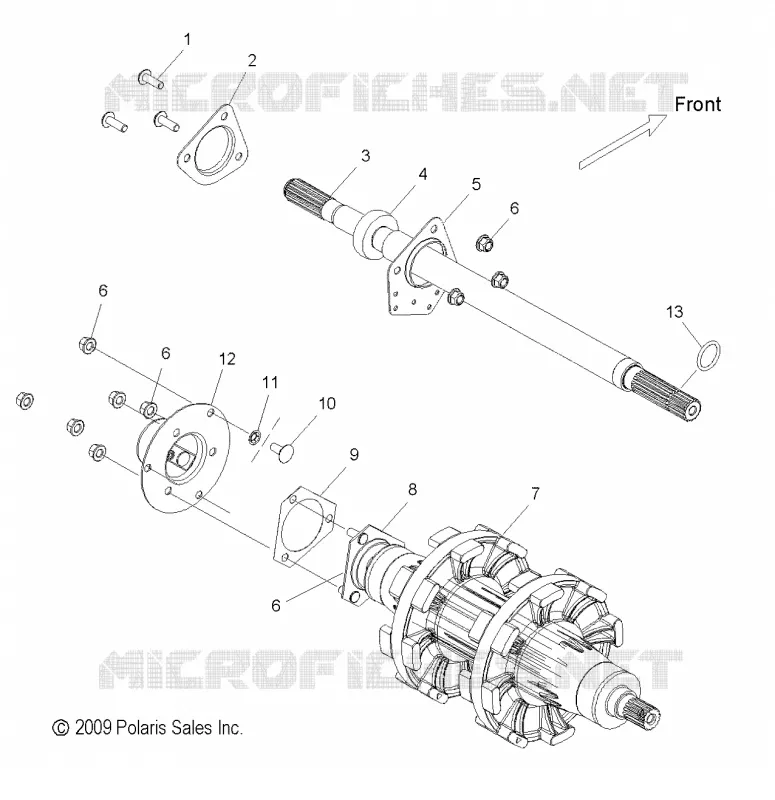

Find the detailed DRIVE TRAIN, JACKSHAFT AND DRIVE SHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
