SUSPENSION REAR CRANK for POLARIS 600 PRO-RIDE RUSH from 2010

SUSPENSION REAR CRANK

1

ASM-CRANK FM RED

1542732293

Not Available

2

PLUG ENDCAP RIBBED

5432831

$10,49 Unit Price incl. VAT

3

HEX FLANGE NUT; 12 MM X 1.75 MM

7547441

$9,44 Unit Price incl. VAT

4

BUSHING-CRANK

5136454

9999999

Not Available

5

BOLT-CARR M12X1.75X60 8.8 ZOD

7519074

9999999

Not Available

6

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

7

BOLT-CARR M10X1.5X50 8.8 ZOD

7519073

$13,64 Unit Price incl. VAT

8

SCR-M8X1.25X40 10.9 HX/FL ZOD

7518954

$10,49 Unit Price incl. VAT

8

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

9

ASM-REAR PIVOT FM BLK

1542590067

Not Available

10

SCR-M12X1.75X65 8.8 HX/FL ZOD

7518968

9999999

Not Available

11

PIVOT BUSHING

5136418

9999999

Not Available

12

BUSHING

7556301

$6,29 Unit Price incl. VAT

13

BEARING

3514303

$20,99 Unit Price incl. VAT

13

WHEEL ASSEMBLY; 4.50

1590480

9999999

Not Available

13

RETAINING RING

7718407

$9,44 Unit Price incl. VAT

14

SHAFT-CARRIER

5137054

9999999

Not Available

15

HEX FLANGE SCREW; 10 MM X 1.5 MM 35 MM

7518957

$6,29 Unit Price incl. VAT

16

SHAFT-CRANK UPPER

5136452

9999999

Not Available

17

SHAFT-CRANK UPPER CBORE

5136906

9999999

Not Available

18

SHAFT-RPA UPPER

5136453

9999999

Not Available

19

SHAFT-PIVOT THIN

5137199

9999999

Not Available

20

SLIDER-REAR PIVOT

5437620

9999999

Not Available

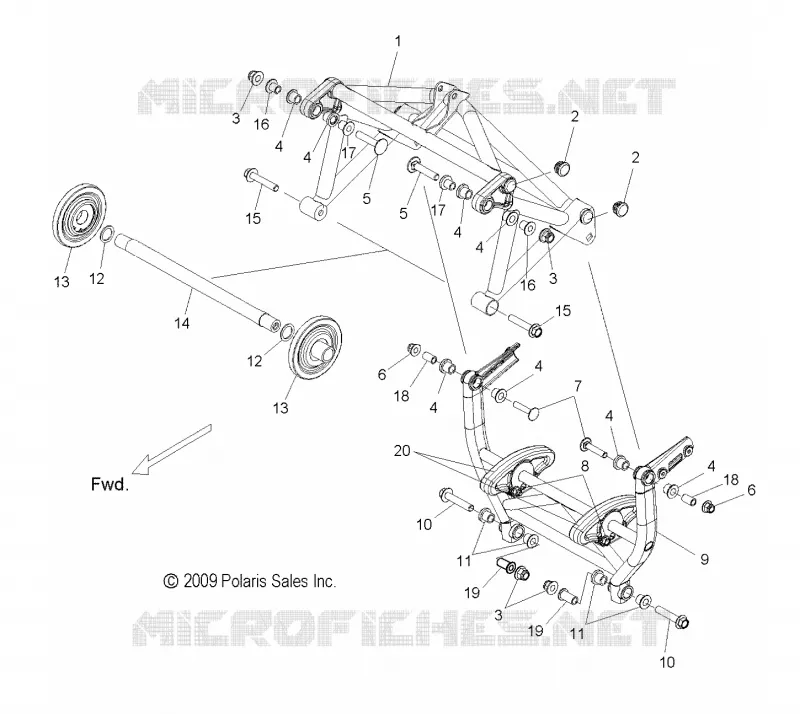

Find the detailed SUSPENSION REAR CRANK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
