CHASSIS, CAB FRAME for POLARIS RANGER 500 ETX / HDPE from 2017

BRAKES, PEDAL AND MASTER CYLINDER

CHASSIS, FRAME AND FRONT BUMPER

CHASSIS, CAB FRAME

1

CAB FRAME WELD; LEFT; MATTE BLACK

1022534458

Not Available

2

CAB FRAME WELD; RIGHT; MATTE BLACK

1022535458

Not Available

3

CAB FRAME WELD; REAR; LOWER; MATTE BLACK

1022575458

Not Available

4

WINDSHIELD MOUNT PLATE; MATTE BLACK

5258471458

Not Available

5

HEX HEAD FLANGE BOLT 8MM X 20MM -1.25MM

7518450

$3,14 Unit Price incl. VAT

6

HEX FLANGE SCREW 10 MM X 1.25 MM X 30 MM

7519059

$5,76 Unit Price incl. VAT

7

SCR-TFTX-M8X1.25X30 ZOD

7520121

$10,49 Unit Price incl. VAT

8

HEX FLANGE SCREW; 10 MM X 1.5 MM X 70 MM

7518291

7521333-70

$6,29 Unit Price incl. VAT

9

HEX FLANGE NUT; 10 MM X 1.5 MM

7547313

$2,09 Unit Price incl. VAT

10

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

11

ROPS GRAB HANDLE; GLOSS BLACK

5439299070

Not Available

12

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

13

CAB SUPPORT WELD; REAR; MATTE BLACK

1021194458

Not Available

14

HEX FLANGE BOLT; 10 MM X 1.5 MM X 20 MM

7518460

$3,14 Unit Price incl. VAT

15

HEX FLANGE SCREW; 10 MM X 1.5 MM X 30 MM

7520213

$17,84 Unit Price incl. VAT

16

NUT-HXFL-M10X1.5 10 ZY3 SPC

7547841

$2,09 Unit Price incl. VAT

17

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

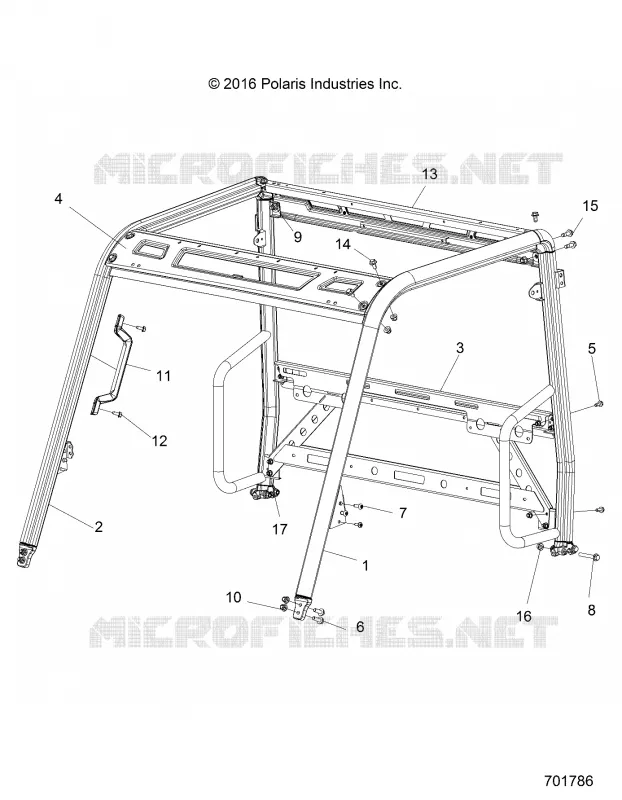

Find the detailed CHASSIS, CAB FRAME POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
