1
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
2
BANJO BOLT; 10 MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
3
MASTER CYLINDER BRAKE
1912463
$482,99 Unit Price incl. VAT
4
BRAKE LINE; FRONT; LEFT
1912283
$89,24 Unit Price incl. VAT
5
LINE-BRK FR 36 90B 30B 85 JJ
1912284
$99,74 Unit Price incl. VAT
6
BRAKE LINE; RIGHT; REAR
1912104
$167,99 Unit Price incl. VAT
7
BRAKE LINE; REAR; LEFT; 39 IN
1912105
$152,24 Unit Price incl. VAT
8
LINE-BRK MCT 57.1 90SB 20F 75J
1912285
$141,74 Unit Price incl. VAT
9
SEALED BRAKE SWITCH; 10 MM X 1.25 MM
4014262
4081264
$153,29 Unit Price incl. VAT
10
SEAL
5413212
9999999
Not Available
11
TEE FITTING BRAKE
7052293
$110,24 Unit Price incl. VAT
12
CLAMP CABLE
7080499
$10,49 Unit Price incl. VAT
13
HOSE CLAMP
7080683
$4,19 Unit Price incl. VAT
14
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
15
SCREW
7512084
$2,09 Unit Price incl. VAT
16
SCR-10-24X1 PN TRX TFS STL-Y
7518552
$7,34 Unit Price incl. VAT
17
POP RIVET
7621323
$2,09 Unit Price incl. VAT
18
CLIP
7670102
$4,19 Unit Price incl. VAT
19
HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM
7518558
$7,34 Unit Price incl. VAT
20
SHIELD-MASTER CYL;GALV
5258202
$16,79 Unit Price incl. VAT

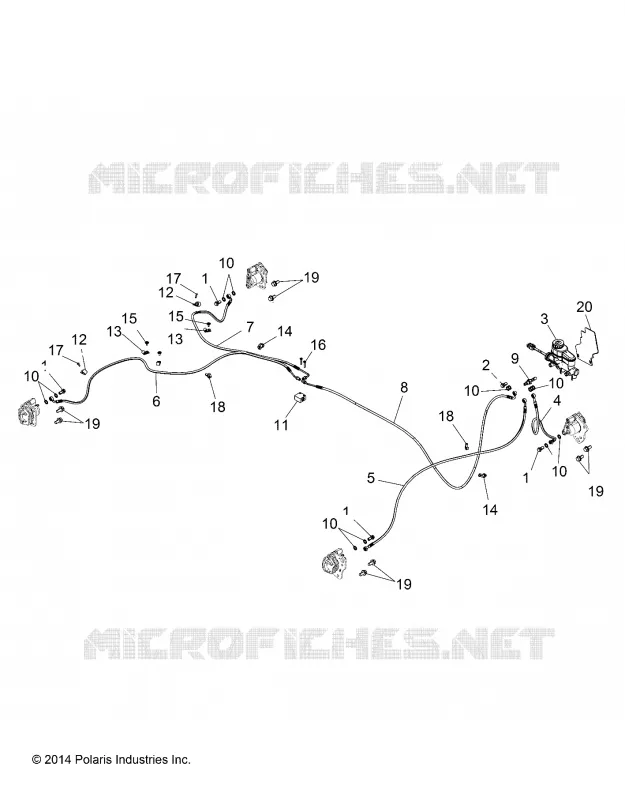

Find the detailed BRAKES, BRAKE LINES AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
