Engine displacement
570
2
Year
2019
3
Trim
ACE 570 EPS
4
Parts Catalog
SEAT MOUNTING AND BELT
5
Parts Diagram
Parts Catalog
SEAT ASM.
by
DRIVE TRAIN, FRONT PROP SHAFT
SEAT MOUNTING AND BELT
13
13
14
15
16
17
18
19
1
WELD-SEAT BASE;REAR;BACK;M.BLK
1020911458
Not Available
2
SEATBASE ADJUSTER WELD; MATTE BLACK
1023702458
Not Available
3
LATCH-SEAT SPRING
5265087
9999999
Not Available
4
BUMPER SHORT RUBBER
5412067
$7,34 Unit Price incl. VAT
5
ROLLER-SEAT
5454929
9999999
Not Available
6
BOLT M10 X 1.5 X 45
7519906
$9,44 Unit Price incl. VAT
7
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
8
NUT-U M10X1.5 SHORT
7547748
$9,44 Unit Price incl. VAT
9
3 POINT SEAT BELT ASSEMBLY
2635049
$346,49 Unit Price incl. VAT
10
HEX FLANGE SCREW 12 MM X 1.75 MM X 25 MM
7519072
$10,49 Unit Price incl. VAT
11
NUT NYLOK 12 MMX 1.5 MM
7540000
$7,34 Unit Price incl. VAT
12
CLIP-DART 10.8 (NYL)
5451583
$7,34 Unit Price incl. VAT
13
CLIP-CONNECTOR 6.35MM HOLE
7082134
$7,34 Unit Price incl. VAT
13
SEAT BELT BUCKLE SWITCH
2635937
$68,24 Unit Price incl. VAT
14
NUT-HXFL-M6X1.0 8 ZC NYL
7547487
$4,19 Unit Price incl. VAT
15
RIVET(50)
7621453
9999999
Not Available
16
WELD-SEAT MNT E-COAT
1024441329
Not Available
17
CAP-LEVER
5451392
1021378
$136,49 Unit Price incl. VAT
18
CAP PLUG
5454698
$7,34 Unit Price incl. VAT
19
SCR-SHS-M6X1.0-M8X30
7520838
$19,94 Unit Price incl. VAT

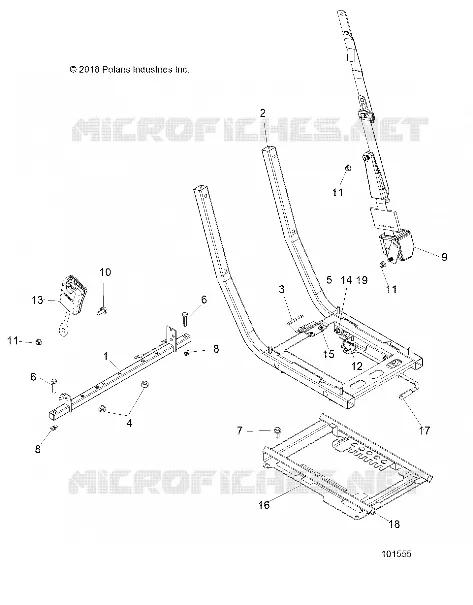

Find the detailed SEAT MOUNTING AND BELT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
