ENGINE, AIR INTAKE SYSTEM for POLARIS ACE 570 EPS from 2019

ENGINE, AIR INTAKE SYSTEM

1

ENGINE BOOT INTAKE

5414973

5417998

$83,99 Unit Price incl. VAT

2

AIR INTAKE BOX

5450495

9999999

Not Available

3

AIRBOX CLIP

7081707

$9,44 Unit Price incl. VAT

4

AIR FILTER

7082037

$48,71 Unit Price incl. VAT

5

COMPRESSION SHAFT LIMITER; 34.4 MM

5138987

$31,49 Unit Price incl. VAT

6

DRAIN PLUG

5414472

$10,49 Unit Price incl. VAT

7

ENGINE INTAKE DUCT

5452665

9999999

Not Available

8

BUSHING-MOUNT

5414719

$5,24 Unit Price incl. VAT

9

HOSE-INTAKE ENGINE

5414582

$62,99 Unit Price incl. VAT

10

AIRBOX COVER

5450175

$47,24 Unit Price incl. VAT

11

ENGINE INTAKE BOX; RIGHT

5450728

9999999

Not Available

12

AIR BOX COVER SEAL

5814106

$20,99 Unit Price incl. VAT

13

ADHESIVE FOAM SEAL

5814033

$20,99 Unit Price incl. VAT

14

CLAMP HOSE

7081623

$5,76 Unit Price incl. VAT

15

HEX FLANGE SCREW; 8 MM X 1.25 MM X 60 MM

7519298

$7,34 Unit Price incl. VAT

16

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

17

BAND CLAMP; NARROW

7080707

$5,76 Unit Price incl. VAT

18

FILTER INTAKE; FOAM

5814026

$26,24 Unit Price incl. VAT

19

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

20

PLASTIC DART CLIP; NYLON

7670088

$3,14 Unit Price incl. VAT

21

SHIELD-SLEEVE

5814546

9999999

Not Available

22

BREATHER HOSE

5415578

$125,99 Unit Price incl. VAT

23

CLAMP HOSE 1.25 WORM DRIVE

7080696

$10,49 Unit Price incl. VAT

24

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

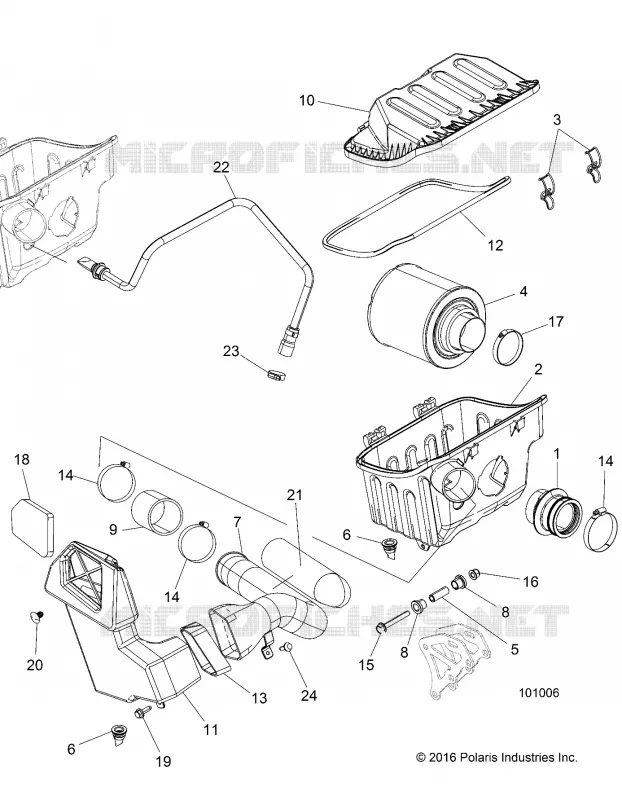

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
