REAR SUSPENSION (SPECIAL 08 BUILD) for POLARIS 800 DRAGON RMK 155 SPECIAL LATE PROD from 2008

SUSPENSION, RAIL MOUNTING (SPECIAL 08 BUILD)

SWAY BAR (SPECIAL 08 BUILD)

REAR SUSPENSION (SPECIAL 08 BUILD)

1

SCR-3/8-16X1.50-HX/CP-GR5-P80Y

7518005

$5,76 Unit Price incl. VAT

2

FLAT WASHER

7555806

$1,56 Unit Price incl. VAT

3

SCR-3/8-24X2.00 HX/CP-GR8-P80Y

7517857

$10,49 Unit Price incl. VAT

4

WASHER

7556042

7555806

$1,56 Unit Price incl. VAT

5

NYLOK NUT

7547263

$6,29 Unit Price incl. VAT

6

BOLT 3/8-16X1.25(10)

7517731

$2,09 Unit Price incl. VAT

7

WASHER .406 X 1.25 X .125

7556130

$11,54 Unit Price incl. VAT

8

IDLER SPACER

5436496

$11,54 Unit Price incl. VAT

9

SPACER; IDLER

5432535

$20,99 Unit Price incl. VAT

10

BUSHING

7555918

$3,14 Unit Price incl. VAT

11

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

11

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

11

ASM-WHEEL WEB 7.25 6004 BLK

1590431070

Not Available

12

SPACER IDLER CENTER

5333283

$27,29 Unit Price incl. VAT

13

IDLER SHAFT; RMK

5135305

9999999

Not Available

14

SHAFT-C BORE;.688X8.665;2045

5134078

$62,99 Unit Price incl. VAT

15

TUBE; .397 X .562 X 8.515; NITRIDE

5334162

9999999

Not Available

16

WASHER .385 X 88 X .075

7556242

$4,19 Unit Price incl. VAT

17

WELD-REAR PIVOT ARM;BLK

1541832067

Not Available

18

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

19

SCR-3/8-24X9.875 HX/LP GR8-Y

7517921

$41,99 Unit Price incl. VAT

20

PIVOT ARM SHAFT; 2.375; GS BLK

1542122067

Not Available

21

TRACK-155 X 2.4SERIES 5.1

5413190

5413622

$1 510,94 Unit Price incl. VAT

22

WASHER FLAT(10)

7555893

$1,56 Unit Price incl. VAT

23

WASHER

7555832

$4,19 Unit Price incl. VAT

24

SHOCK CENTERING SPACER

5334062

$20,99 Unit Price incl. VAT

25

WSHR-.719X1.250X.065-Y

7556210

$7,34 Unit Price incl. VAT

26

SHAFT .687 X 8.456

5133188

9999999

Not Available

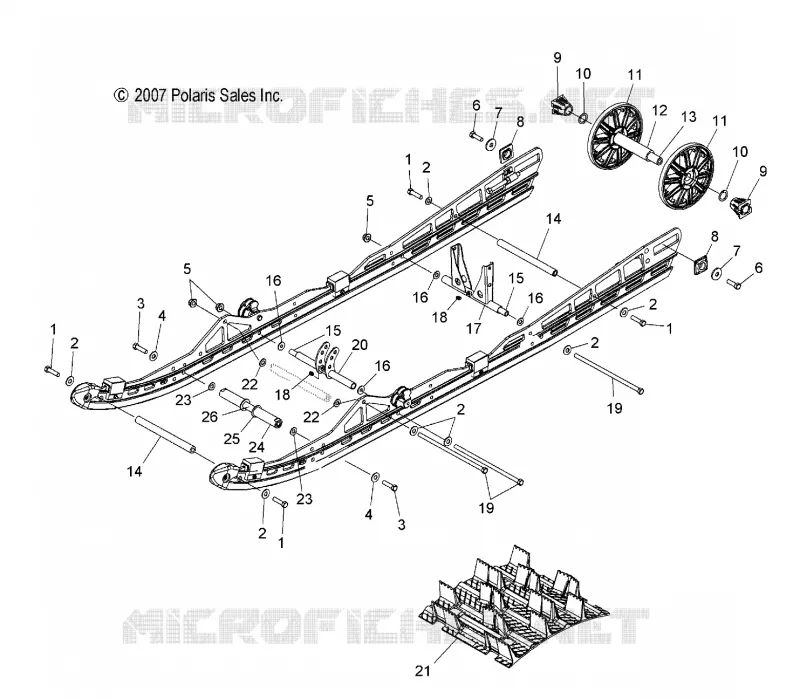

Find the detailed REAR SUSPENSION (SPECIAL 08 BUILD) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
