CHAINCASE (SPECIAL 08 BUILD) for POLARIS 800 DRAGON RMK 155 SPECIAL LATE PROD from 2008

FRONT BUMPER, NOSEPAN AND TIE ROD BOOT (SPECIAL 08 BUILD)

CLUTCH DRIVEN (SPECIAL 08 BUILD)

CHAINCASE (SPECIAL 08 BUILD)

1

OIL SEAL

3610030

$36,74 Unit Price incl. VAT

2

BALL BEARING #6205

3514309

3515910

$30,23 Unit Price incl. VAT

3

PIN-ROLL 125 X1.25

7661867

9999999

Not Available

4

RETAINING RING

7718406

$11,54 Unit Price incl. VAT

5

CHAIN TIGHTENER ASSEMBLY

1332427

$135,44 Unit Price incl. VAT

6

WASHER-THREAD SEAL;3/8-16-UNC

7556340

$6,29 Unit Price incl. VAT

7

NUT-3/8-16 HX FLG GRF ZY

7547304

9999999

Not Available

8

SCREW(10)

7515511

$7,34 Unit Price incl. VAT

9

19 TOOTH SPROCKET

3221095

$68,24 Unit Price incl. VAT

10

WASHER SPRING

7571620

$13,64 Unit Price incl. VAT

11

NUT-5/8-18 THIN;NYL INSERT-Y

7547202

$10,49 Unit Price incl. VAT

12

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

13

CHAINCASE COVER GASKET; 8.373

5813205

$41,99 Unit Price incl. VAT

14

ASM-COVER 8.373 W/SIGHT GLASS

1332596

9999999

Not Available

15

SCREW

7515179

$4,19 Unit Price incl. VAT

16

OIL CHECK; SIGHT GLASS

3610126

9999999

Not Available

17

SCR-3/8-24X.75 HXHD/NYL GR8

7518717

9999999

Not Available

18

WASHER .406 X 1.25 X .125

7556130

$11,54 Unit Price incl. VAT

19

SPKT 41T 15T SPL HYVO PM

3222101

3225068

$73,49 Unit Price incl. VAT

20

HYVO CHAIN

3221108

$262,49 Unit Price incl. VAT

21

MAGNETIC PLUG

7052394

9999999

Not Available

22

CHAINCASE; 8.373; MACHINED

5136088

9999999

Not Available

23

PLUG-9/16-20-UN2A MAGNETIZED

7052382

9999999

Not Available

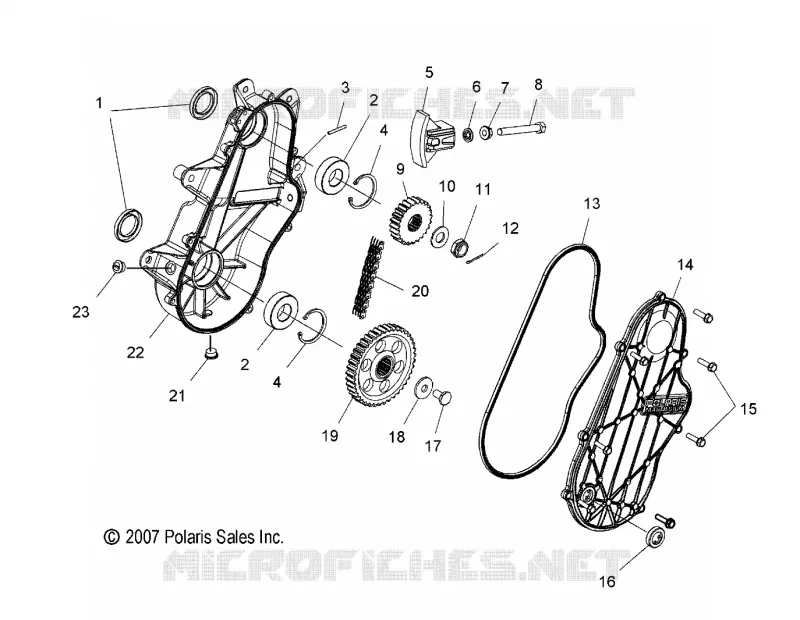

Find the detailed CHAINCASE (SPECIAL 08 BUILD) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
