FRONT SUSPENSION CONTROL ARMS for POLARIS RZR PRO XP SPORT from 2023

SUSPENSION, FRONT SHOCK MOUNTING, STANDARD/PREMIUM

FRONT SUSPENSION CARRIER AND HUB

FRONT SUSPENSION CONTROL ARMS

1

WELD-CTRL ARM;UPR;FR;LH;64;BLK

1544322458

Not Available

2

WELD-CTRL ARM;UPR;FR;RH;64;BLK

1544323458

Not Available

3

WELD-CTRL ARM;LWR;FR;LH;64;BLK

1544867458

Not Available

4

WELD-CTRL ARM;LWR;FR;RH;64;BLK

1544868458

Not Available

5

CAP-PIVOT SEAL;M12

5139992

$8,39 Unit Price incl. VAT

5

SEALED PIVOT CAP ASSEMBLY; 12 MM

1543612

$10,49 Unit Price incl. VAT

6

SEALED MINI PIVOT CAP ASSEMBLY; 12 MM

1543998

$24,14 Unit Price incl. VAT

6

CAP-PIVOT SEAL;M12;MINI

5141426

$8,39 Unit Price incl. VAT

7

PIVOT SHAFT; SHORT

5140555

5144660

$16,79 Unit Price incl. VAT

8

HEX FLANGE SCREW; 12 MM X 1.5 MM X 65 MM

7520477

$6,08 Unit Price incl. VAT

9

STANDARD BUSHING; SUSPENSION; M12

5452271

$6,29 Unit Price incl. VAT

10

BALL-JOINT HARDENED HI-MISALGN

7082892

$89,24 Unit Price incl. VAT

10

HIGH MISALIGNED BALL JOINT

7082422

7082892

$89,24 Unit Price incl. VAT

11

HEX FLANGE SCREW 12 MM X 1.5 MM X 105 MM

7520479

$13,64 Unit Price incl. VAT

12

NUT 12MM X 1.5MM

7547334

$9,44 Unit Price incl. VAT

13

WASHER 13 X 2.5

7556287

$13,64 Unit Price incl. VAT

14

RETAINING RING

7710716

$15,74 Unit Price incl. VAT

15

SPIRAL RING; STEEL; 30 MM

7710869

$7,34 Unit Price incl. VAT

16

FLANGE SCREW

7519306

$10,49 Unit Price incl. VAT

17

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

18

WASHER

7556153

$3,66 Unit Price incl. VAT

19

SCR-HXFL-M12X1.5X75 10.9 ZOD

7521073

$7,34 Unit Price incl. VAT

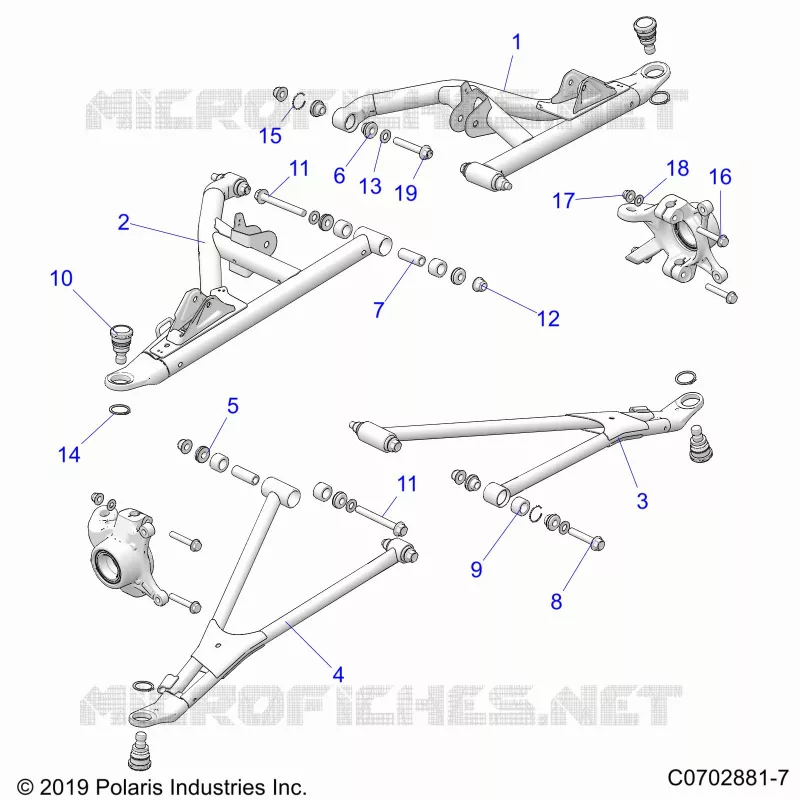

Find the detailed FRONT SUSPENSION CONTROL ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
