SUSPENSION, REAR CARRIER AND HUB for POLARIS RZR PRO XP SPORT from 2023

REAR SUSPENSION CONTROL ARMS

SUSPENSION, FRONT STABILIZER BAR

SUSPENSION, REAR CARRIER AND HUB

1

HUB-WHEEL(MACH) 28T

5143641

$150,14 Unit Price incl. VAT

2

BRAKE DISC

5260591

$173,24 Unit Price incl. VAT

3

WHEEL STUD

7519792

$10,49 Unit Price incl. VAT

4

BALL BEARING; SEALED; 44 X 72 X 33.1

3515090

$108,14 Unit Price incl. VAT

4

SEALED BALL BEARING; 44 X 72 X 33.1

3514924

$73,49 Unit Price incl. VAT

5

CARRIER-BEARING WHEEL LH(MACH)

5144780

$114,44 Unit Price incl. VAT

6

CARRIER-BEARING WHEEL RH(MACH)

5144781

$114,44 Unit Price incl. VAT

7

NUT-CASTLE-M20X1.5 ZC

7548004

7547949

$12,59 Unit Price incl. VAT

7

NUT-CASTLE-M20X1.5 ZFS

7547949

$12,59 Unit Price incl. VAT

8

WSHR-LOAD 21X45 5-5.6

7557146

$10,49 Unit Price incl. VAT

9

COTTER PIN

7661404

$9,44 Unit Price incl. VAT

10

INTERNAL RETAINING RING

7710780

$17,84 Unit Price incl. VAT

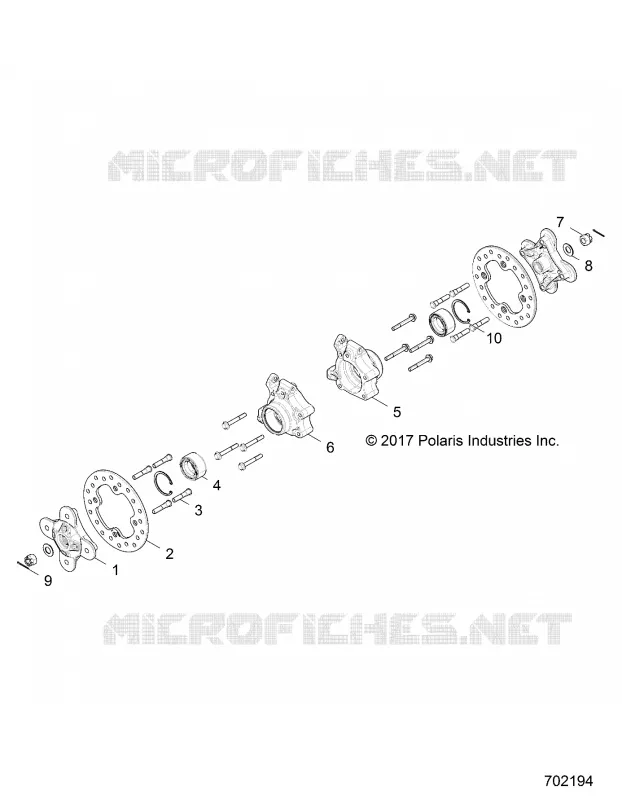

Find the detailed SUSPENSION, REAR CARRIER AND HUB POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
