1
Engine displacement
500
2
Year
2007
3
Trim
SPORTSMAN X2 500 EFI QUAD - A07TH50EA
4
Parts Catalog
AIR BOX
5
Parts Diagram
Parts Catalog
WISHBONES
by
BRAKE REAR CALIPER
AIR BOX
1
2
3
4
5
6
7
8
9
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
PRECLEANER FILTER SLEEVE
5811633
$19,20 Unit Price incl. VAT
2
FILTER AIR
7080595
7083107
$51,23 Unit Price incl. VAT
3
AIRBOX COVER SEAL
5812829
5813949
$52,49 Unit Price incl. VAT
4
COVER-AIR BOX
5436278
9999999
Not Available
5
GASKET-INTAKE
5412748
9999999
Not Available
6
SCREW
7517317
$6,29 Unit Price incl. VAT
7
DUCT-AIR INTAKE
5436957
9999999
Not Available
8
FOAM SEAL; LARGE INTAKE
5812773
9999999
Not Available
9
CRANKCASE FILTER
5812910
$8,39 Unit Price incl. VAT
10
HOSE CLAMP
7080699
$3,14 Unit Price incl. VAT
11
LINE BREATHER 3/8 ID.
8450073600
Not Available
12
BREATHER HOSE FORMED 500 CC
5413104
9999999
Not Available
13
CLAMP HOSE SPRING
7080694
$10,49 Unit Price incl. VAT
14
CLAMP-P STL 1 IN BDL DIA-B
7080913
9999999
Not Available
15
BREATHER FILTER IN LINE
2530029
9999999
Not Available
16
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
17
CARBURETOR BOOT
5412847
9999999
Not Available
18
SLEEVE-CARB INNER
5433847
$27,29 Unit Price incl. VAT
19
AIR TEMPARATURE SENSOR
2410687
$283,49 Unit Price incl. VAT
20
AIR TEMP SENSOR GROMMET
5436346
$9,44 Unit Price incl. VAT
21
TRAP PLUG
5435299
9999999
Not Available
22
FUEL LINE
8450059150
Not Available
23
AIR INTAKE BOX; 500 EFI
5436151
9999999
Not Available
24
FOIL-AIRBOX 9.75 X 4.50
5812771
9999999
Not Available
25
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
26
SCREW
7515179
$4,19 Unit Price incl. VAT
27
CLIP-AIR BOX
5249292
9999999
Not Available
28
BAND CLAMP; NARROW
7080707
$5,76 Unit Price incl. VAT

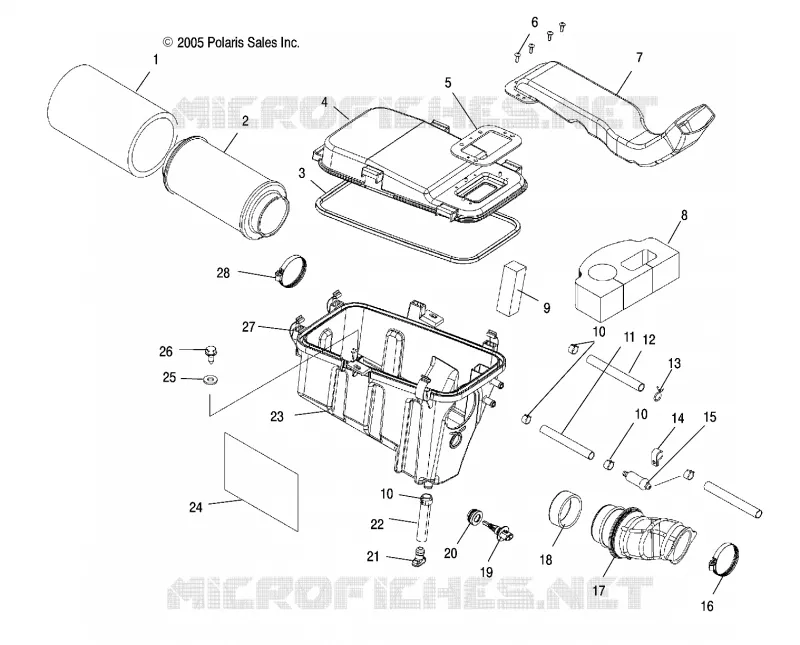

Find the detailed AIR BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
