Engine displacement
500
2
Year
2007
3
Trim
SPORTSMAN X2 500 EFI QUAD - A07TH50EA
4
Parts Catalog
ELECTRICAL
5
Parts Diagram
Parts Catalog
CLUTCH DRIVE AND MOUNTING
by
ENGINE, MOUNTING
ELECTRICAL
1
2
3
4
5
6
7
8
9
9
9
9
9
9
9
10
11
12
13
14
14
14
14
15
16
17
18
19
19
20
20
20
21
22
23
24
25
26
27
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
BATTERY KIT BOLT
2202213
$6,29 Unit Price incl. VAT
2
PAD-BATTERY 1.75
5813165
9999999
Not Available
3
BATTERY HEAT SHIELD
5250933
9999999
Not Available
4
BATTERY-SEALED 30-AH 360 CCA
4011224
4014609
$283,49 Unit Price incl. VAT
5
BATTERY PAD
5810290
5810290-CO
$13,64 Unit Price incl. VAT
6
SCREW
7517386
$2,09 Unit Price incl. VAT
7
WELD-BATTERY BOX;BLK
1015903067
Not Available
8
MODULE-FLASH/TURN
4011553
9999999
Not Available
9
ENGINE AIR TEMP HARNESS KIT
2875900
$220,49 Unit Price incl. VAT
9
THROTTLE POSITION SENSOR HARNESS KIT
2878498
$220,49 Unit Price incl. VAT
9
HARNESS-MAIN TREK QUAD
2410752
9999999
Not Available
9
FUSIBLE LINK KIT; 1.0 MM
2202670
$68,24 Unit Price incl. VAT
9
ENGINE MAP SENSOR HARNESS KIT
2876315
$220,49 Unit Price incl. VAT
9
ENGINE INJECTOR HARNESS KIT
2875901
$220,49 Unit Price incl. VAT
9
FUSIBLE LINK KIT
2202147
9999999
Not Available
10
RESISTOR MODULE HARNESS KIT
2204890
$257,24 Unit Price incl. VAT
11
HARNESS-WINCH PREWIRE X2
2410860
9999999
Not Available
12
CABLE-GRD(FRAME/BATTERY)COM
4011552
9999999
Not Available
13
CABLE; SOL/STARTER
4010093
$89,24 Unit Price incl. VAT
14
SCREW
7512024
$9,44 Unit Price incl. VAT
15
MODULE CONTROL; 500 EFI
4011657
$1 034,24 Unit Price incl. VAT
16
BRKT-PDM MOUNT PLATED
5249459
9999999
Not Available
17
ENGINE CONTROL MODULE
4012443
9999999
Not Available
18
NYLON WASHER
7555932
$4,19 Unit Price incl. VAT
19
SINGLE SPARK PLUG WIRE; 200 MM
4011692
9999999
Not Available
19
COIL-IGNITION 500EFI
4011834
4015072
$204,74 Unit Price incl. VAT
20
BOLT
7512232
$2,09 Unit Price incl. VAT
21
SOLENOID-STARTER
4010947
4081641
$59,84 Unit Price incl. VAT
22
NUT-HXFLGHD M6 SERRATED
7547270
$7,34 Unit Price incl. VAT
23
BATTERY TO SOLENOID CABLE RED
4011360
9999999
Not Available
24
SCREW
7512084
$2,09 Unit Price incl. VAT
25
CABLE TIE MOUNT; .25
7080965
$13,64 Unit Price incl. VAT
26
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
27
CABLE TIE
7080138
$5,24 Unit Price incl. VAT

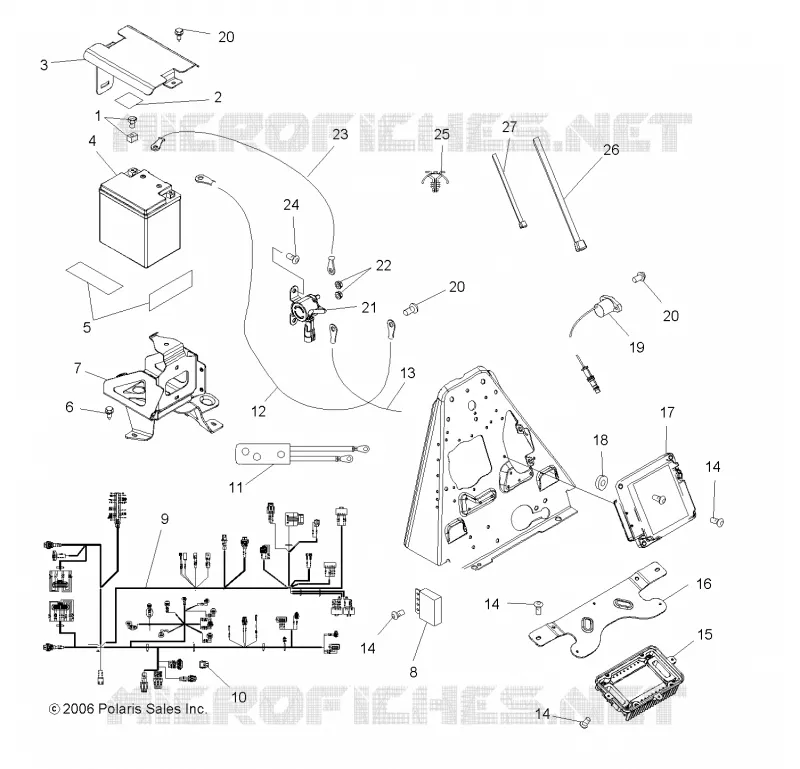

Find the detailed ELECTRICAL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
